KIA Niro: Front Seat

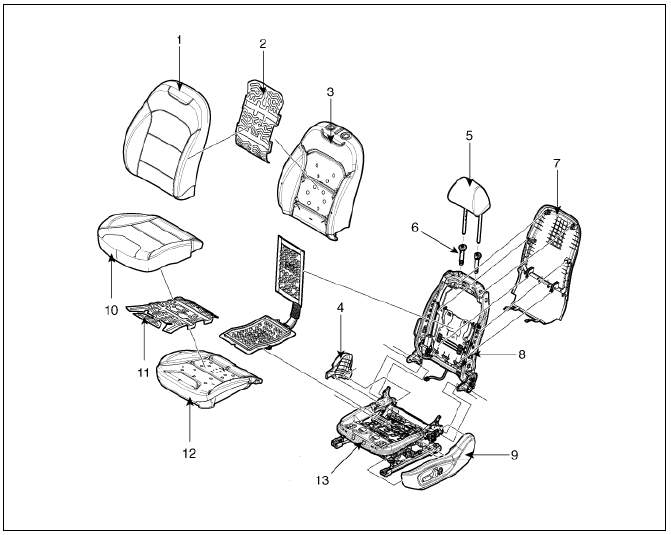

Front Seat / Components And Components Location
- Front seat back covering
- Front seat back heater
- Front seat back pad
- Front seat inner shield cover
- Front seat headrest
- Front seat headrest guide
- Front seat back board
- Front seat back frame
- Front seat outer shield cover
- Front seat cushion covering
- Front seat cushion heater
- Front seat cushion pad
- Front seat cushion frame
- Front Seat Assembly | Front Seat Shield Outer Cover
- Front Seat Back Cover
- Front Seat Cushion Cover | Front Seat Frame Assembly
