KIA Niro: Controlling power windows switch
KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Features of your vehicle / Windows / Controlling power windows switch

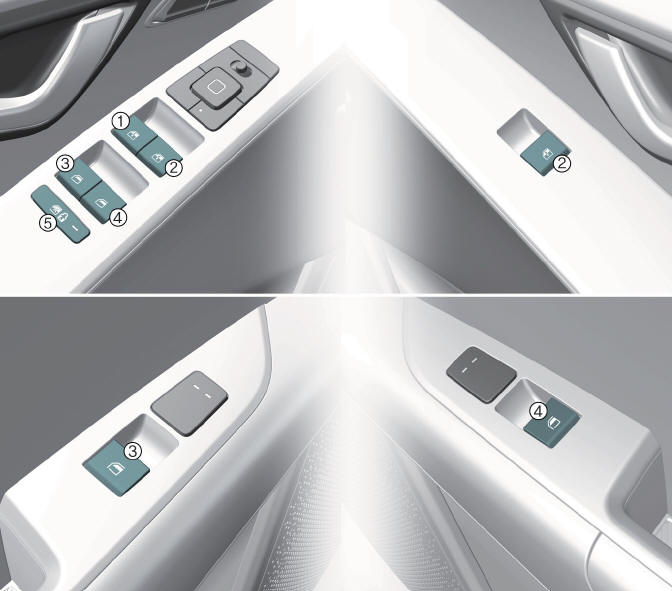

Left-hand drive

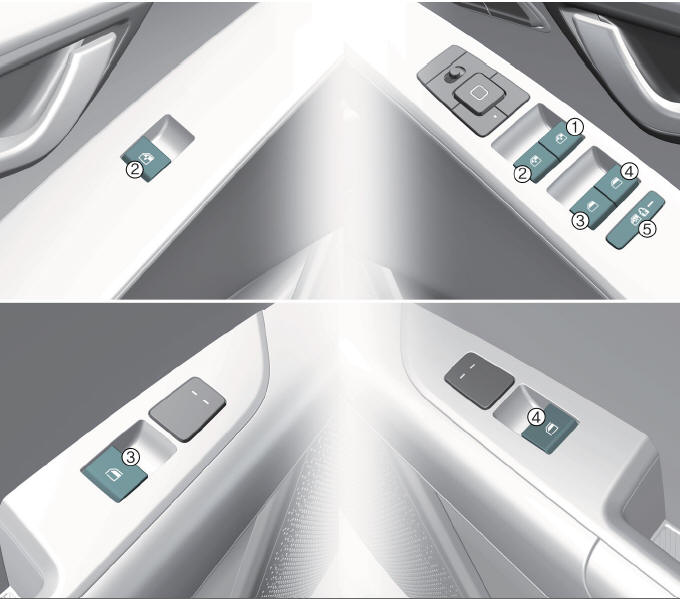

Right-hand drive
- Driver's door power window switch
- Front passenger's door power window switch
- Rear door (left) window switch
- Rear door (right) window switch
- Power window lock switch
Controlling power windows switch
- Type A: 1
- Type B: 1, 2 (if equipped)
Operation

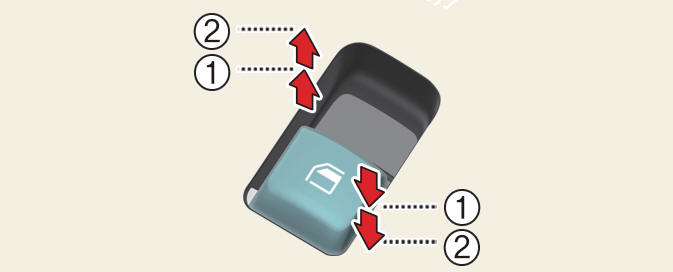

- Press or pull the switch to the first/ second detent position (1, 2).
INFORMATION
Only type B can use auto up/down function.
Operating condition(s)
- The vehicle is in the ON position.
WARNING
Do not install any accessories in the area of windows. It may impact jam protection.
NOTICE
- While driving with the rear windows down or with the sunroof (if equipped) in an open (or partially open position), your vehicle may demonstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If the noise occurs with one or both of the rear windows down, partially lower both front windows approximately 2.5 cm (1 inch). If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening.
- In cold and wet climates, power windows may not work properly due to freezing conditions.
Resetting power windows
Operation
- Close the window.
- Pull the power window switch.
- Approximately 1 second
Operating condition(s)
- The vehicle is in the ON position.
