KIA Niro: Engine compartment (Kia Niro Hybrid only)
KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Your vehicle at a glance / Engine compartment (Kia Niro Hybrid only)

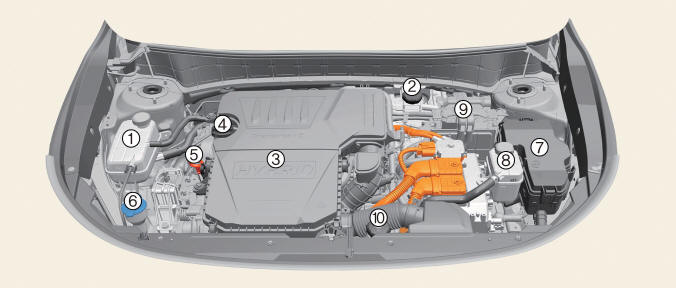

Smartstream G1.6 GDi HEV

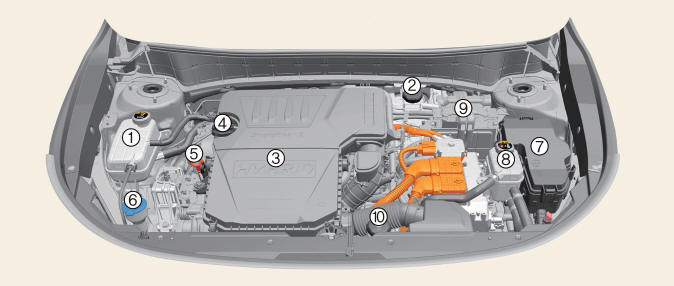

Smartstream G1.6 GDi PHEV
- Engine coolant reservoir
- Brake fluid reservoir
- Air cleaner
- Engine oil filler cap
- Engine oil dipstick
- Windshield washer fluid reservoir
- Fuse box
- Inverter coolant reservoir
- Electric Control Unit (ECU)
- Engine actuator reservoir tank
