KIA Niro: Exterior overview

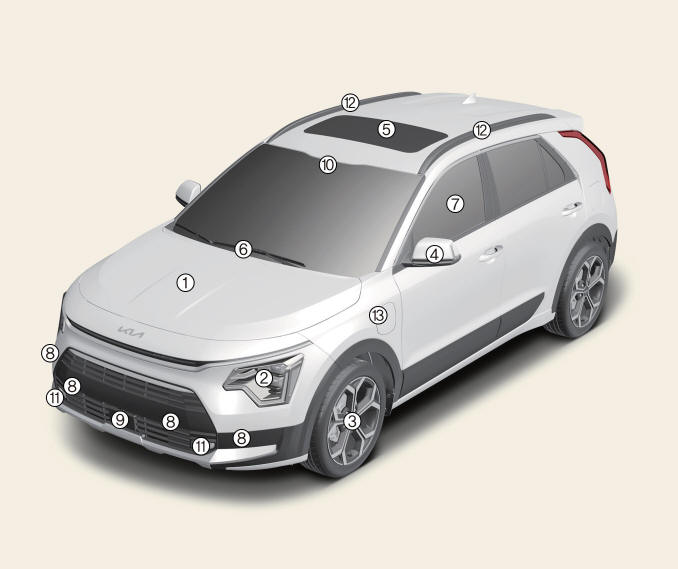

Front view
Front view

* The actual features in your vehicle may not necessarily be available due to the selected options or regions.

  1. Hood
  2. Head lamp
  3. Wheel and tire
  4. Outside rear view mirror
  5. Sunroof
  6. Front windshield wiper blades
  7. Windows
  8. Front ultrasonic sensor
  9. Front radar
  10. Front view camera
  11. Front fog lamp
  12. Roof rack
  13. Charging door

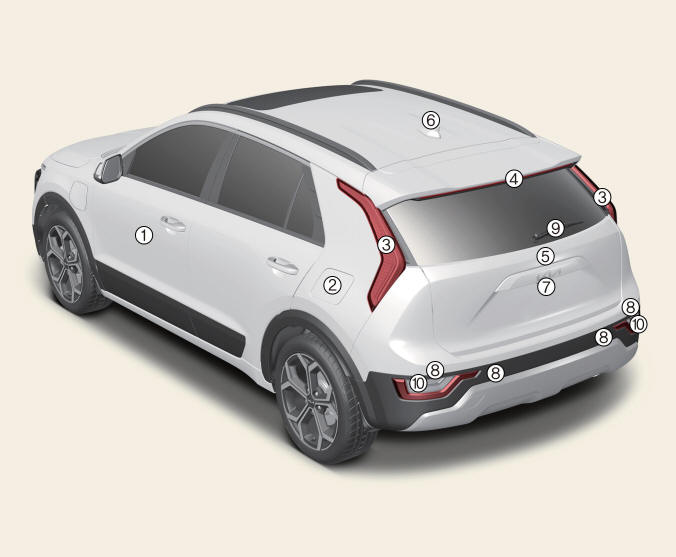

Rear view ( Kia NIRO Hybrid)
Rear view (Kia NIRO Hybrid)

  1. Doors
  2. Fuel filler door
  3. Rear combination lamp
  4. High mounted stop lamp
  5. Tailgate
  6. Antenna
  7. Wide-rear view camera
  8. Rear ultrasonic sensor
  9. Rear wiper
  10. Backup lamp and rear fog lamp

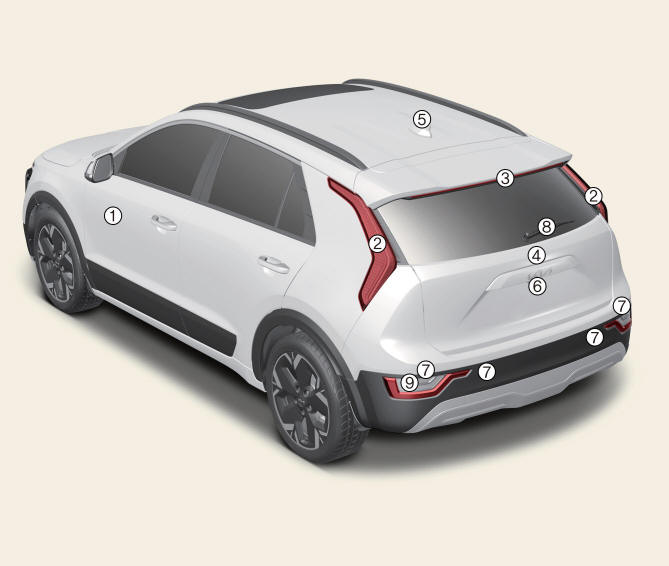

Rear view ( Kia Niro EV)
Rear view (Kia Niro EV)

  1. Doors
  2. Rear combination lamp
  3. High mounted stop lamp
  4. Tailgate
  5. Antenna
  6. Wide-rear view camera
  7. Rear ultrasonic sensor
  8. Rear wiper
  9. Rear lower combination lamp


     Interior overview

    Left-hand drive (Kia NIRO Hybrid) Right-hand drive (Kia NIRO Hybrid) Inside door handle Seat position memory system Outside rearview mirror folding switch Outside rearview mirror control switch Central door lock/unlock switch

     Instrument panel overview

    Left-hand drive (Kia NIRO Hybrid) Right-hand drive (Kia NIRO Hybrid) Audio remote control button Driver's front air bag Horn Driving Assist button Instrument cluster Light control/turn signals lever Wiper and washer contr

     Engine compartment (Kia Niro Hybrid only)

    Smartstream G1.6 GDi HEV Smartstream G1.6 GDi PHEV Engine coolant reservoir Brake fluid reservoir Air cleaner Engine oil filler cap Engine oil dipstick Windshield washer fluid reservoir Fuse box Inverter coolant reservoir


     Fuel Delivery System

    Components Location Fuel Tank Assembly Fuel tank Fuel pump Fuel filter Fuel pressure regulator Canister Fuel tank air Filter Fuel pressure sensor (FPS) Fuel tank pressure sensor (FTPS) Fuel level sensor (FLS) Fuel tank iso

     Cowl Top Cover

    Cowl Top Cover / Components And Components Location Cowl top cover Cowl Top Cover / Repair Procedures Replacement Warning Put on gloves to protect your hands. Warning Use a plastic panel removal tool to remove interior trim pieces
