KIA Niro: Instrument panel overview

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Your vehicle at a glance / Instrument panel overview

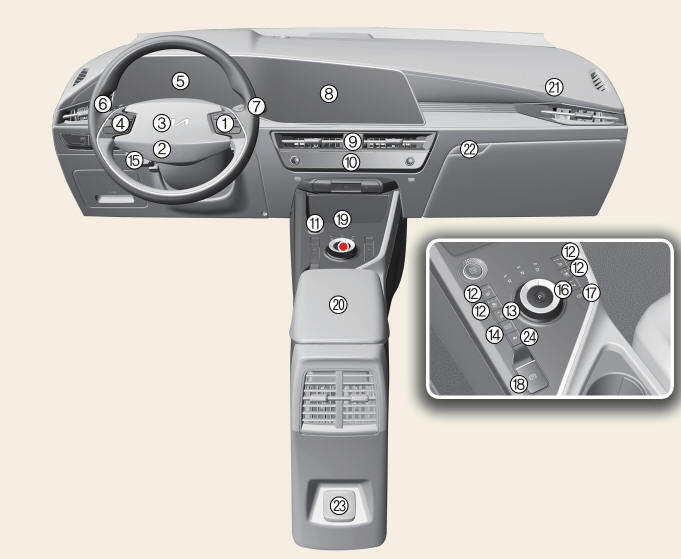

Left-hand drive ( Kia NIRO Hybrid)
Left-hand drive (Kia NIRO Hybrid)

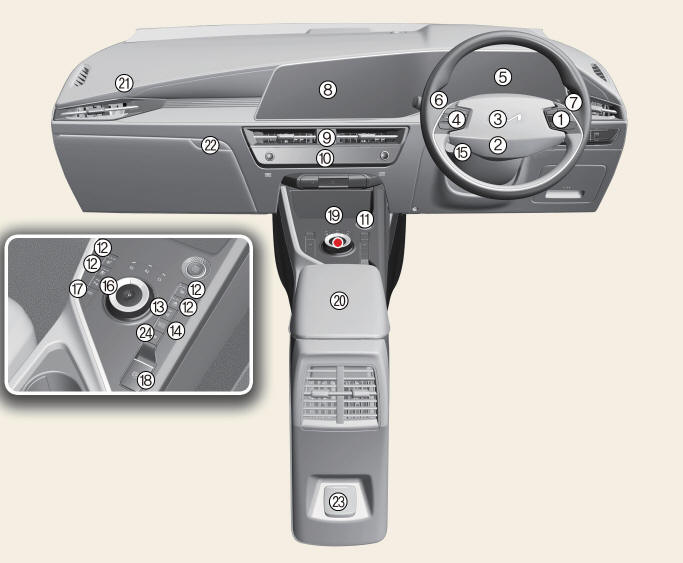

Right-hand drive ( Kia NIRO Hybrid)
Right-hand drive (Kia NIRO Hybrid)

  1. Audio remote control button
  2. Driver's front air bag
  3. Horn
  4. Driving Assist button
  5. Instrument cluster
  6. Light control/turn signals lever
  7. Wiper and washer control lever
  8. Infotainment system
  9. Hazard warning flasher switch
  10. Climate control system/ Infotainment/climate switchable controller
  11. ENGINE START/STOP button
  12. Front seat warmer and air ventilation seat button
  13. Steering wheel heater button
  14. AUTO HOLD button
  15. Drive mode button
  16. Parking Safety button
  17. Parking/View button
  18. EPB button
  19. Wireless smartphone charging system
  20. Center console storage box
  21. Passenger's front air bag
  22. Glove box
  23. 115V/220V Inverter
  24. EV Button

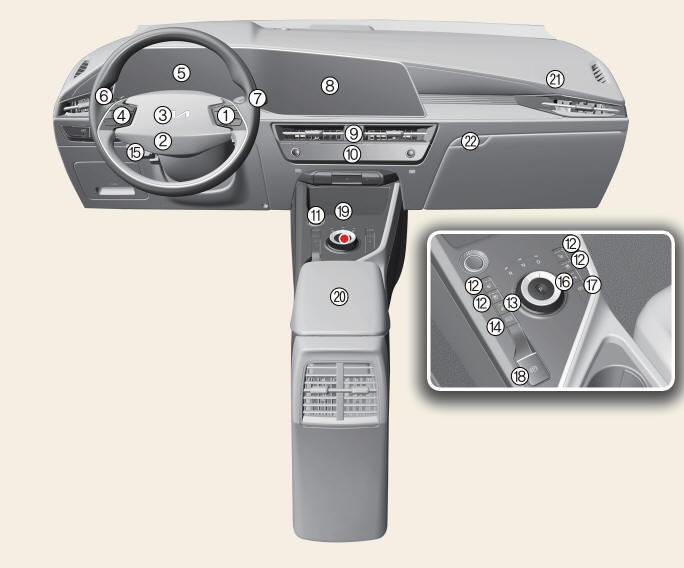

Left-hand drive ( Kia Niro EV)
Left-hand drive (Kia Niro EV)

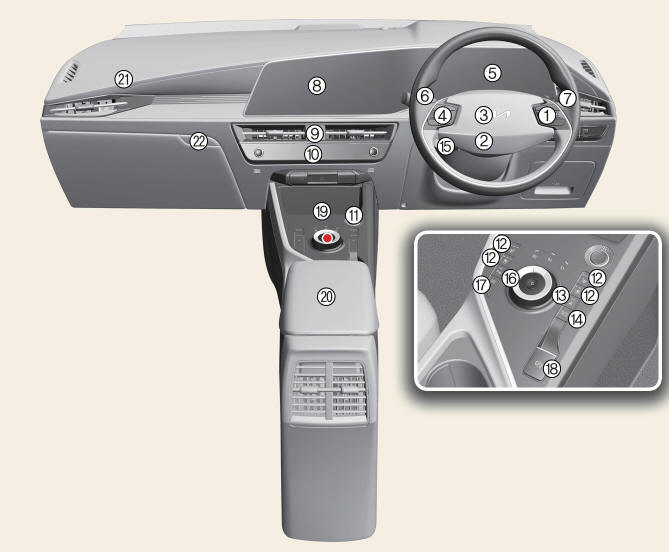

Right-hand drive ( Kia Niro EV)
Right-hand drive (Kia Niro EV)

  1. Audio remote control button
  2. Driver's front air bag
  3. Horn
  4. Driving Assist button
  5. Instrument cluster
  6. Light control/turn signals lever, Wiper and washer control lever
  7. Wiper and washer control lever, Light control/turn signals lever
  8. Infotainment system
  9. Hazard warning flasher switch
  10. Infotainment/climate switchable controller
  11. EV button
  12. Front seat warmer and air ventilation seat button
  13. Steering wheel heater button
  14. AUTO HOLD button
  15. Drive mode button
  16. Parking Safety button
  17. Parking/View button
  18. EPB switch
  19. Wireless charging system
  20. Center console storage box
  21. Passenger's front air bag
  22. Glove box
