KIA Niro: Map lamp

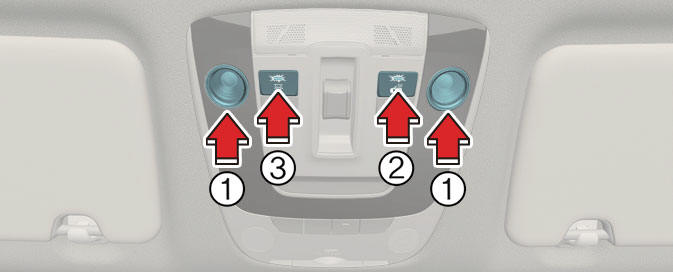

Type A

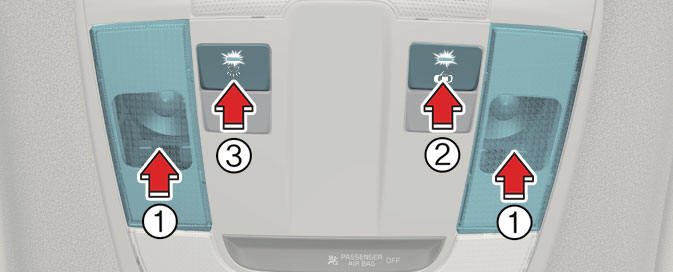

Type B
Operation
- Press or touch the lamp (1) to turn the map lamp ON.
(2): DOOR mode
(3): Front and rear room lamps on and off.
INFORMATION- (Kia Niro Hybrid only)
DOOR mode
- The map lamp and room lamp come on approximately 30 seconds.
- When a door is opened.
- When doors are unlocked with a smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on
- If a door is opened with the ENGINE START/STOP button in the ACC or OFF position. (5 minutes)
- If the door is opened with the ENGINE START/STOP button in the ON position. (continuously)
- The map lamp and room lamp will go out
- If the vehicle is changed to the ON position or all doors are locked. (immediately)
NOTICE
The DOOR mode and ROOM mode can not be selected at a time.
INFORMATION- (Kia Niro EV only)
- The map lamp and room lamp come on approximately 30 seconds.
- When a door is opened.
- When doors are unlocked with a smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on
- If a door is opened with the vehicle in the ACC or OFF position. (5 minutes)
- If the door is opened with the vehicle in the ON position. (continuously)
- The map lamp and room lamp will go out
- If the vehicle is changed to the ON position or all doors are locked. (immediately)
