KIA Niro: Specifications & Consumer information (Kia NIRO Hybrid)
KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Specifications & Consumer information / Specifications & Consumer information (Kia NIRO Hybrid)

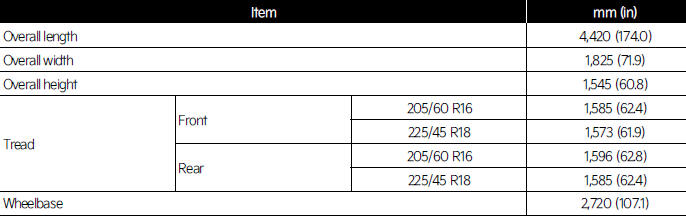

Dimensions

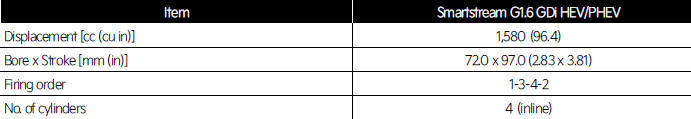

Engine
Gross vehicle weight

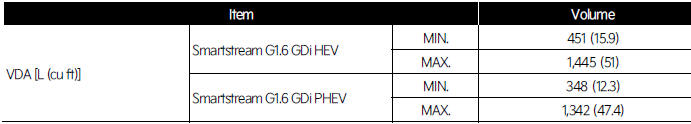

Luggage volume
- Min: Behind rear seat to upper edge of the of the seatback
- Max: Behind front seat to roof

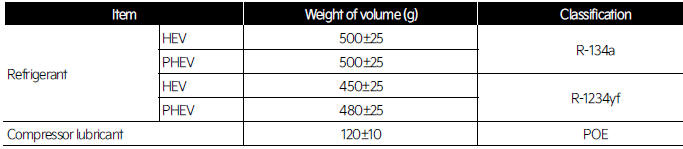

Air conditioning system
Please contact a professional workshop for more details. Kia recommends to contact an authorized Kia dealer/service partner.

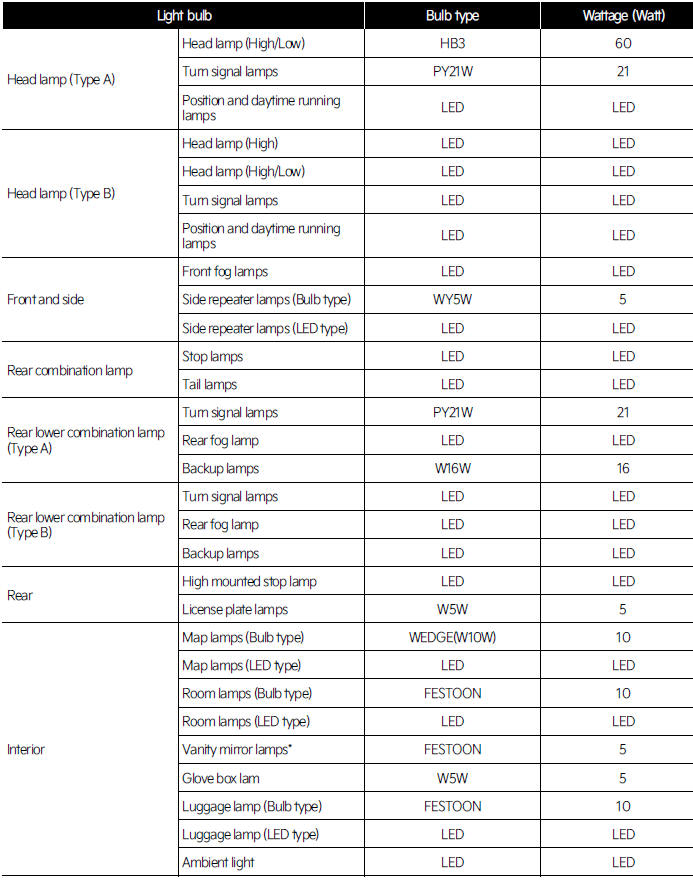

Bulb wattage
* : if equipped
