KIA Niro: Specifications & Consumer information (Kia Niro EV)
KIA Niro EV / Hybrid (SG2) - (2021-2023) - Owner's manual / Specifications & Consumer information / Specifications & Consumer information (Kia Niro EV)

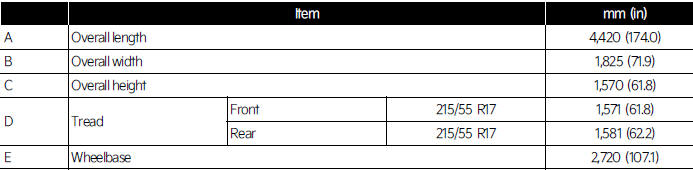

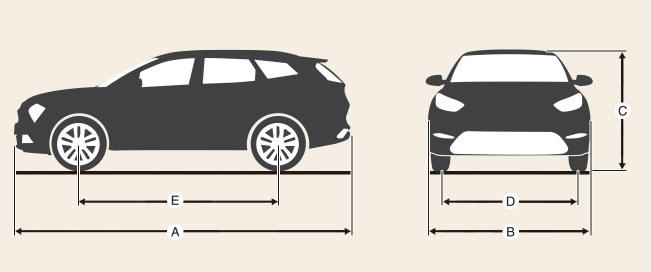

Dimensions

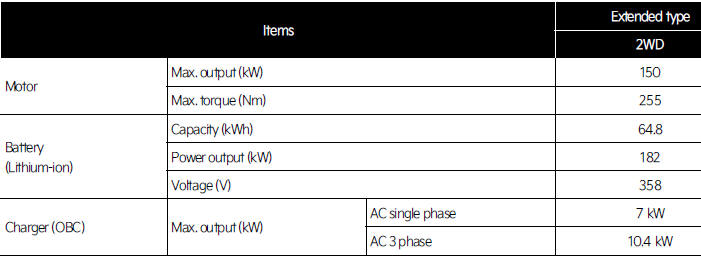

Electric vehicle specifications
OBC: On-Board Battery Chargers
Volume and weight
Available front trunk weight

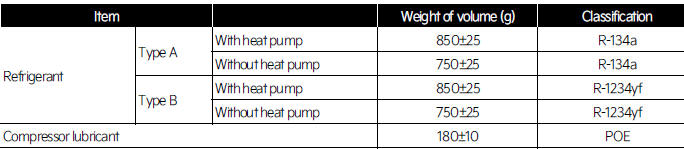

Air conditioning system
Please contact a professional workshop for more details. Kia recommends to contact an authorized Kia dealer/service partner.

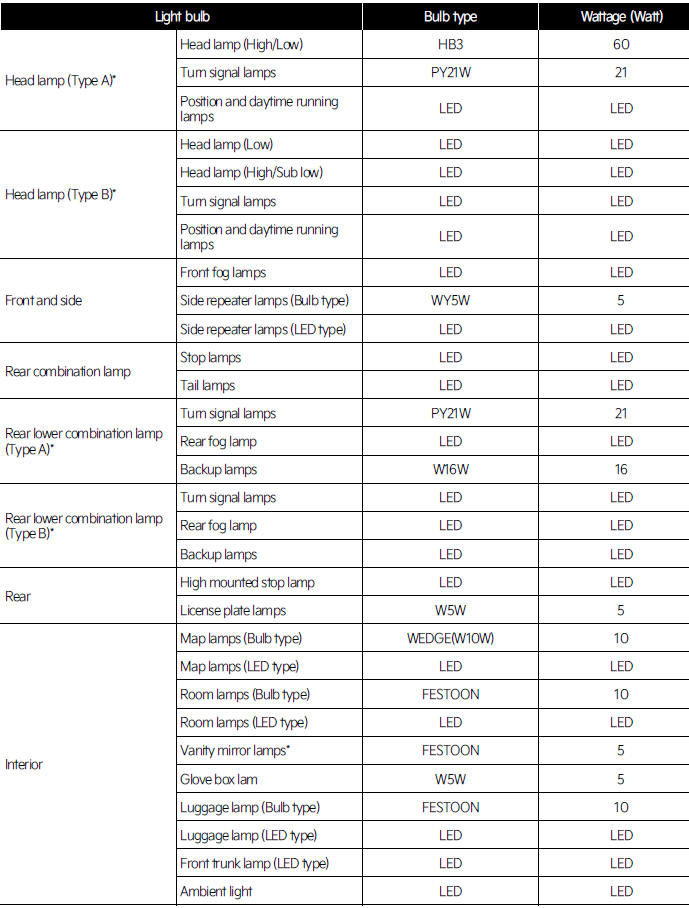

Bulb wattage
* : if equipped
READ NEXT:
Tires and wheels
(Kia Niro EV / Hybrid)
*1. Load Index
*2. Speed Symbol
CAUTION
When replacing tires, use the same size
originally supplied with the vehicle.
Using tires of a different size can damage
the related parts or make it work
irregularly.
NOTI
Vehicle Identification
Vehicle Identification Number (VIN)
Kia NIRO Hybrid
Type A - For hybrid vehicle
Type A - For plug-in hybrid vehicle
Type B
Kia Niro EV
Type A
Type B
The Vehicle Identification Number (VIN)
is the number used in registering your
Tire specification and pressure label
Type A
Type B
The tire label located on the center pillar
as shown gives the tire pressures recommended
for your vehicle. The tires supplied
on your new vehicle are chosen to
provide the best performance for normal
driving.
Motor number (
SEE MORE:
Low Voltage DC/DC Converter (LDC)
Component Location
Low Voltage DC/DC Converter (LDC) (HPCU)
Low Voltage DC/DC Converter (LDC) power output
terminal (+) (DC 12V)
Low Voltage DC/DC Converter (LDC) ground terminal (-)
Schematic Diagram
Low Voltage DC/DC Converter
Starting the engine with smart key
The vehicle will check for the smart key
when:
The vehicle doors are opened
The ENGINE START/STOP button is
pressed
If the smart key is not in the vehicle, the
indicator ( ) and the message will
appear on the instrument cluster.
WARNIN
