KIA Niro: Tire specification and pressure label

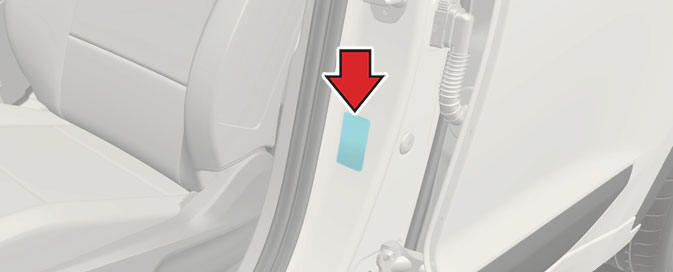

Type A

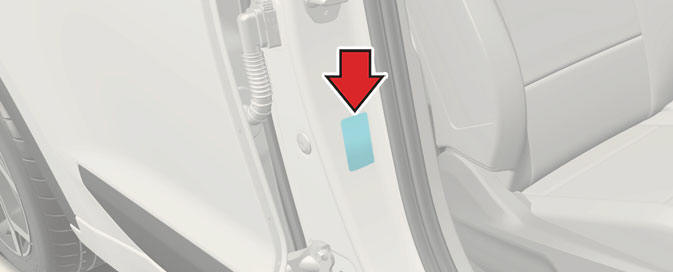

Type B
The tire label located on the center pillar as shown gives the tire pressures recommended for your vehicle. The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

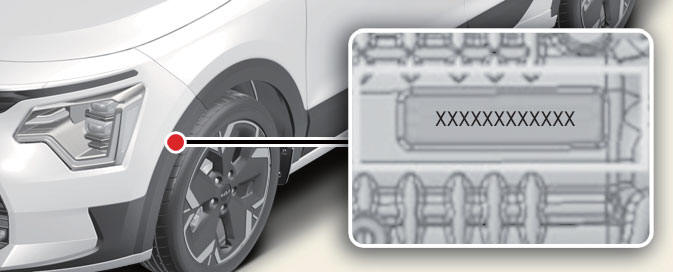

Motor number (Kia Niro EV)
The motor number is stamped on the motor as shown.

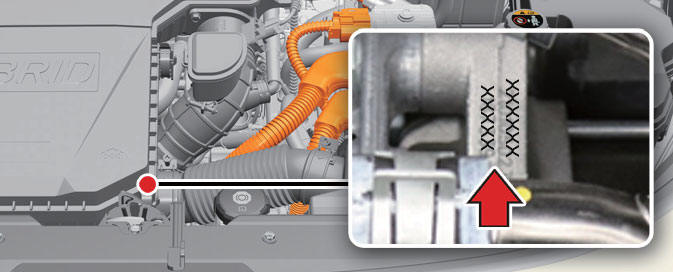

Engine number (Kia NIRO Hybrid)
Smartstream G1.6 GDi HEV/PHEV
The engine number is stamped on the engine block as shown.

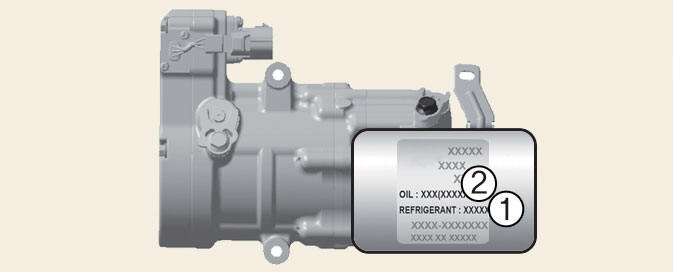

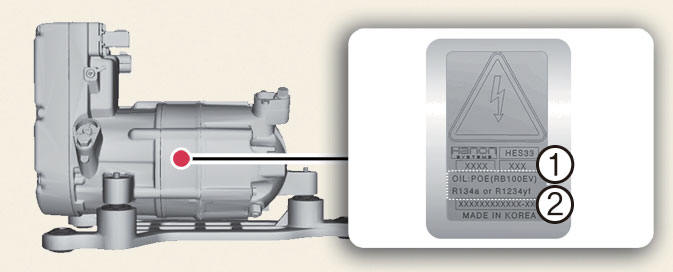

Air conditioner compressor label (Kia Niro EV)
- Refrigerant
- Refrigerant oil
A compressor label informs you the type of compressor your vehicle is equipped with such as model, supplier part number, production number, refrigerant (1) and refrigerant oil (2).
Air conditioner compressor label (Kia NIRO Hybrid)
A compressor label informs you the type of compressor your vehicle is equipped with such as model, supplier part number, production number, refrigerant (1) and refrigerant oil (2).
Refrigerant label
The refrigerant label is located as shown
Fuel label (if equipped)
The fuel label is attached on the fuel filler door.

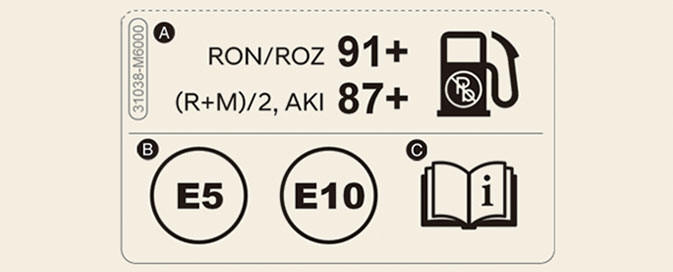

Hybrid vehicle
- A. Octane rating of unleaded gasoline
- RON/ROZ: Research Octane Number
- (R+M)/2, AKI: Anti Knock Index
- B. Identifiers for Gasoline-type fuels
* This symbol means usable fuel. Do not use any other fuel.
- C. For further details, refer to the "Fuel requirements"
Plug-in hybrid vehicle

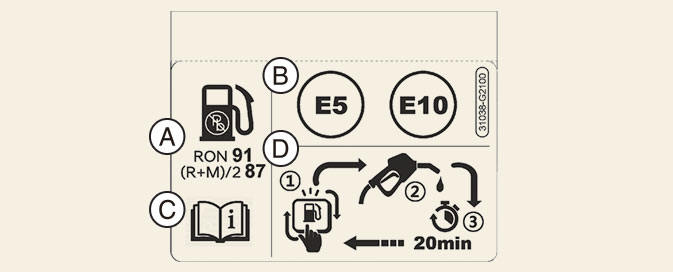

For Europe

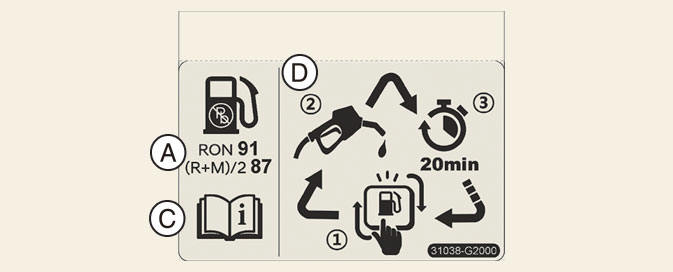

Except Europe
- A. Octane rating of unleaded gasoline
- RON/ROZ: Research Octane Number
- (R+M)/2, AKI: Anti Knock Index
- B. Identifiers for Gasoline-type fuels
* This symbol means usable fuel. Do not use any other fuel.
- C. For further details, refer to the "Fuel requirements"
- D. Add fuel into the fuel tank within 20 minutes.
