KIA Niro: How to check the symbol on the charging label (For Europe) (if equipped)

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Specifications & Consumer information / How to check the symbol on the charging label (For Europe) (if equipped)

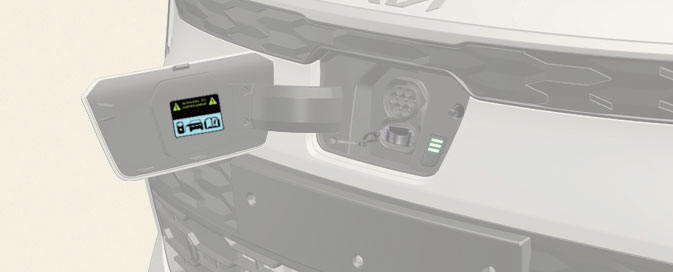

Vehicle charging INLET
Vehicle charging INLET

How to check the symbol on the charging label (For Europe) (if equipped)

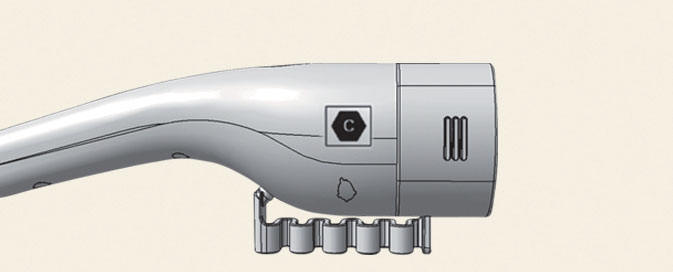

Charging connector OUTLET
Charging connector OUTLET

Symbol location and application example
Symbol location and application example

Precautions for charging AC and Trickle charger (Portable charging cable) (AC charging)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.
  2. Check the charging connector symbol of the AC and Trickle charger cable.
  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

* Refer to "Electric charging label symbol table (For Europe)"

  1. Risk of failure, fire, injury, etc. expected when using the charging connector with unmatched symbol.

Precautions for DC charging (DC charging) - (Kia Niro EV only)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.
  2.  Check the charging connector symbol at the high speed charging station.
  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

* Refer to "Electric charging label symbol table (For Europe)"

  1. Risk of failure, fire, injury, etc. expected when using the charging connector with unmatched symbol.

Electric charging label (For Europe)

Kia Niro EV

Electric charging label (For Europe)

The electric charging label is attached on the charging door.

  1. Warning for high voltage
  2. Symbol for charging door
  3. For further details, refer to "How to check the symbol on the charging label (For Europe) (if equipped)"
  4. Charging voltage and current
  • ( ): AC Single phase
  • ( ): AC 3 phase

5~7: Symbols for charging type. For further details, refer to "Electric charging label symbol table (For Europe)"

Electric charging label (For Europe)

Kia NIRO Hybrid

Electric charging label (For Europe)

The electric charging label is attached on the charging door.

1 ~ 3: Warning for high voltage

  1. Identifier for charging door
  2.  For more details, refer to "How to check the symbol on the charging label (For Europe) (if equipped)".
  3.  Charging voltage and current - ( ) AC single phase.
  4. Identifiers for charging type. For more details, refer to "Electric charging label symbol table (For Europe)"

Electric charging label symbol table (For Europe)

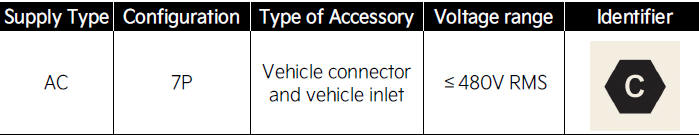

AC and Trickle charger charging

AC and Trickle charger charging

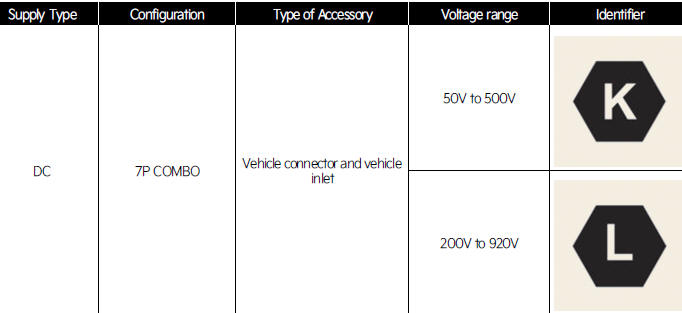

DC charging- Kia Niro EV

DC charging- Kia Niro EV
