KIA Niro: Tilt open/close

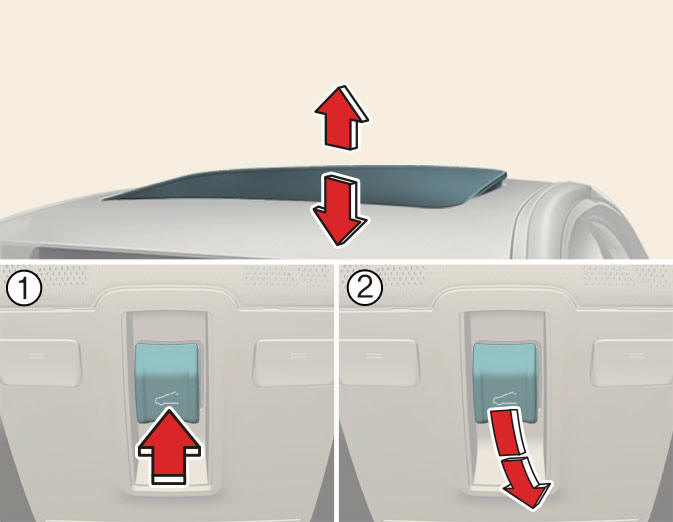

- Tilt open
- Tilt close
- Push the sunroof switch upward, the sunroof glass tilts open.
Push the sunroof switch forward when the sunroof glass is tilt opened, the sunroof glass closes.
The sunroof glass tilts open or closes while the switch is pushed.
INFORMATION
The sunroof glass cannot slide open and tilt open at the same time. You cannot tilt the sunroof glass open while the sunroof glass is slide open. Also, you cannot slide the sunroof glass open while the sunroof is tilt open. Slide open or tilt open the sunroof glass when the sunroof glass is completely closed.

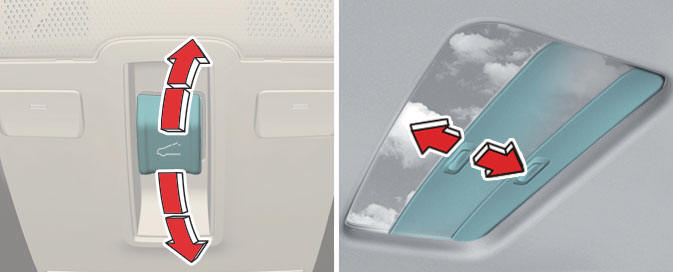

Slide open/close
- Push the sunroof switch rearward, the
sunshade and sunroof glass slide
open.
Push the sunroof switch forward, only the sunroof glass closes.
- Push the sunroof switch forward or rearward to the first detent position, the sunroof glass moves until the switch is released.
- Push the sunroof switch forward or rearward to the second detent position, the sunroof glass operates automatically (auto slide feature). To stop the sunroof movement at any point, push the sunroof switch in any direction.
- The sunroof glass stops halfway (first detent position) before it is fully opened. To fully open the sunroof glass, push the sunroof switch rearward once more. At this time, the sunroof glass opens only while the switch is pushed.
INFORMATION
To reduce wind noise while driving, we recommend that you drive at the recommended position (first detent position) before the maximum slide open position.
