KIA Niro: Cowl Top Cover

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body (Interior And Exterior) / Cowl Top Cover

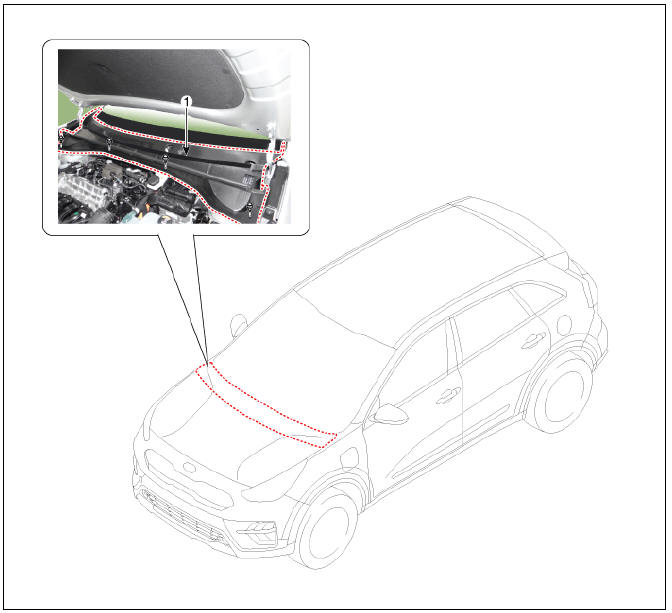

Cowl Top Cover / Components And Components Location

  1. Cowl top cover

Cowl Top Cover / Repair Procedures

Replacement

Warning

Put on gloves to protect your hands.

Warning

  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Be careful not to bend or scratch the trim and panels.

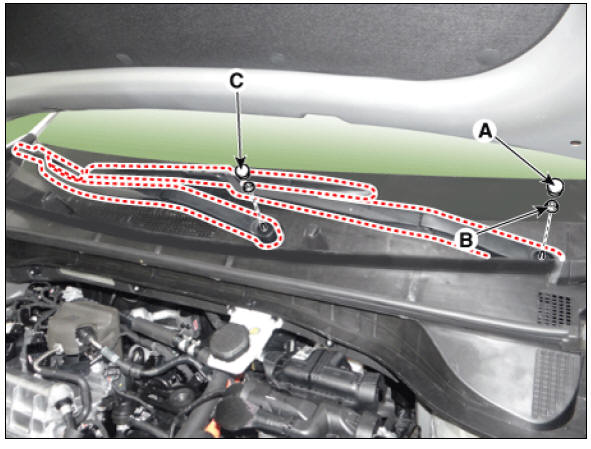

  1. Remove the cap (A) and the nuts (B), and then remove the wiper arm (C).

Tightening torque : 22.6 - 26.5 N*m(2.3 - 2.7 kgf*m, 16.6 - 19.5 lb*ft)

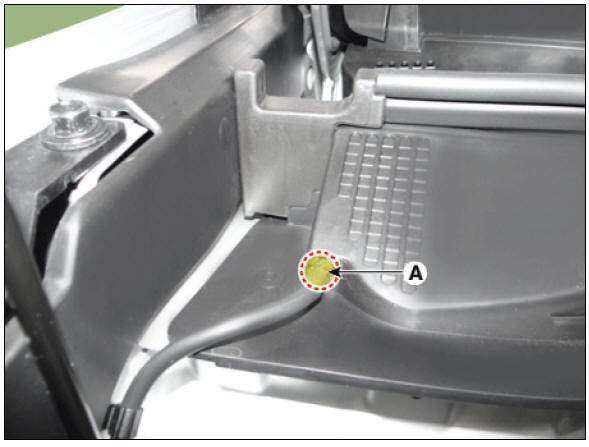

  1. Disconnect the nozzle hose (A).

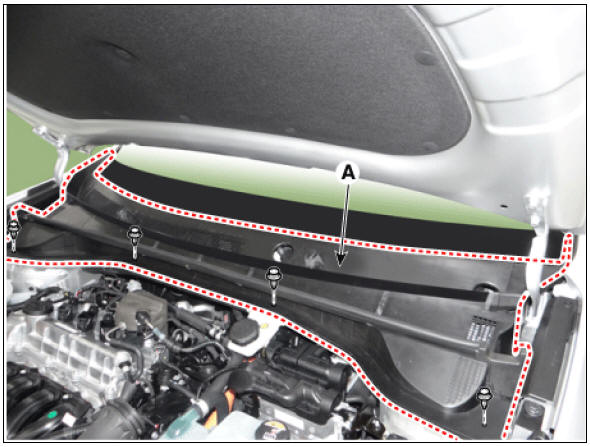

  1. Detach the clips, then remove the cowl top cover (A).

  1. Install in the reverse order of removal.

Warning

Replace any damaged clips.
