Front Door Module Components and components location

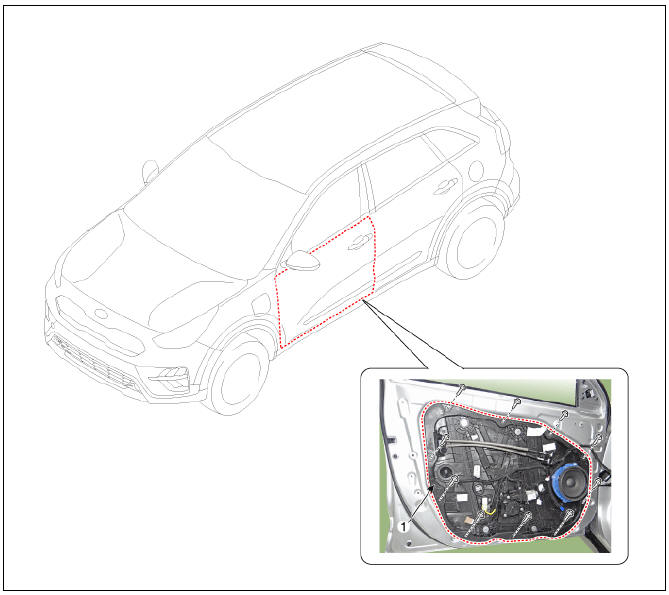

- Front door module
Replacement
- Remove the front door trim.
(Refer to Front Door - "Front Door Trim")

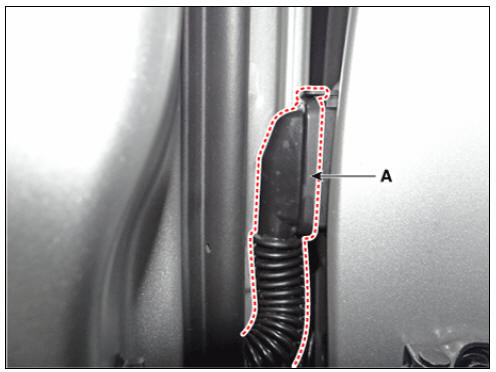

- Disconnect the front door main connector (A).

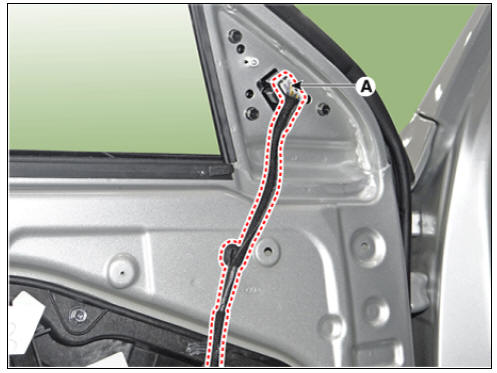

- Disconnect the outside rear view mirror connector (A).

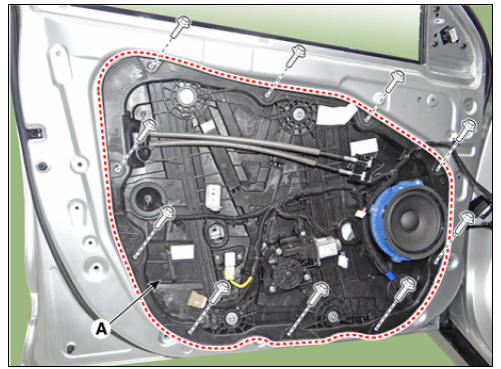

- Separate the rear door module (A) after loosening the mounting bolts.
Tightening torque : 8.8 - 13.7 N*m (0.9 - 1.4 kgf*m, 6.5 - 10.1 lb*ft)

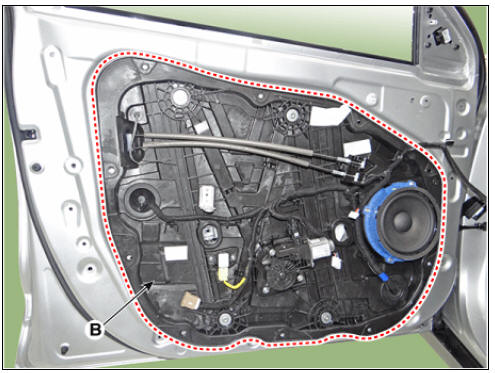

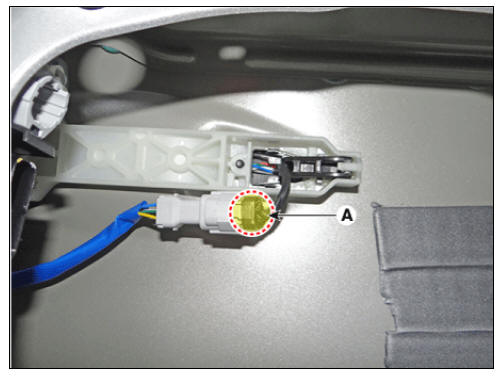

- Remove the front door module (A) after disconnecting the front door latch connector (B).

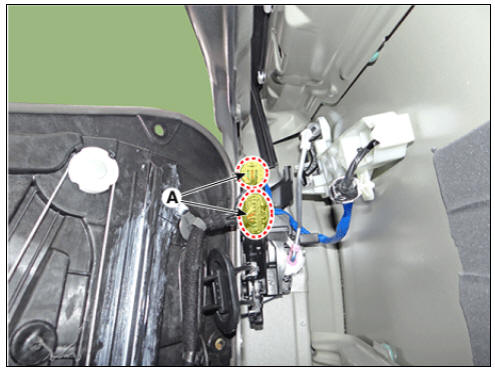

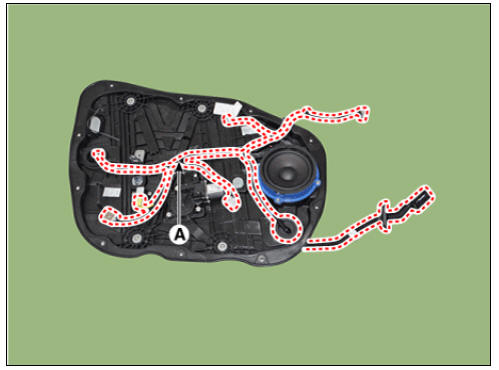

- Disconnect the connectors and front door module wiring harness (A).
- Remove the front speaker.
(Refer to Body Electrical System - "Speakers")
- Remove the front power window motor.
(Refer to Body Electrical System - "Power Window Motor")
- Remove the side impact sensor.
(Refer to Restraint - "Side Impact Sensor")
- Install in the reverse order of removal.
Warning
- Apply enough grease onto the whole parts.
- Make sure that connectors are connected properly and each rod is connected securely.
- Make sure that the door locks/unlocks and opens/closes properly.
Front Door Outside Handle

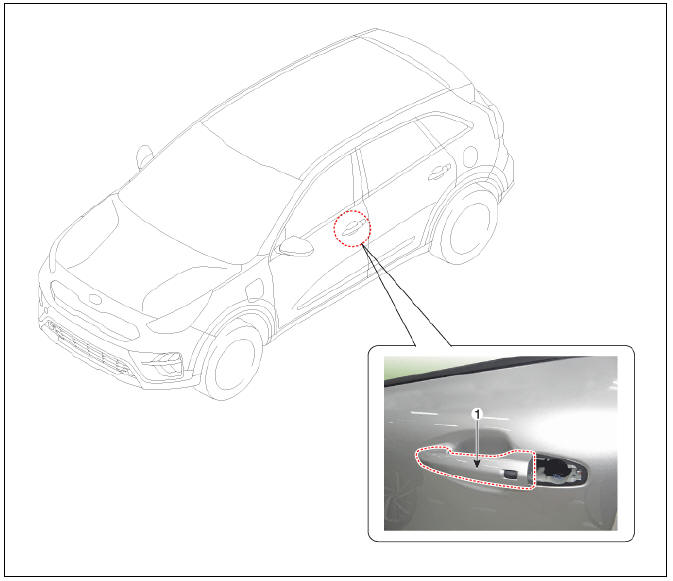

- Front door outside handle
Replacement
- Remove the front door module.
(Refer to Front Door - "Front Door Module")

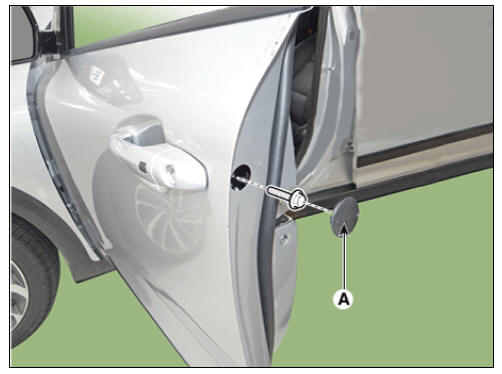

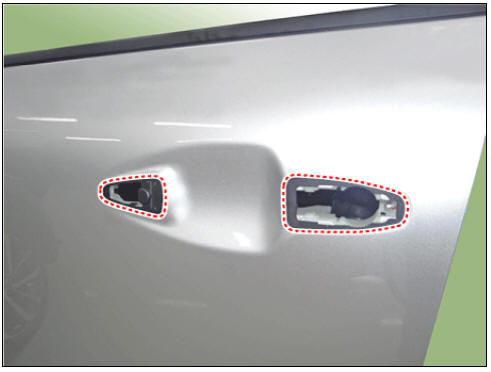

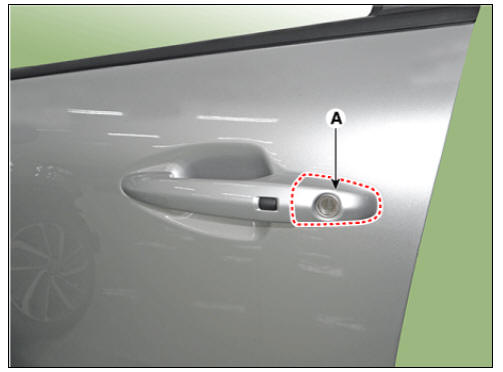

- Remove the plug hole cap (A) and then loosen the bolt.
Tightening torque : 3.4 - 5.7 N*m (0.4 - 0.6 kgf*m, 2.9 - 4.3 lb*ft)
- Remove the door lock assembly (A).
- Disconnect the front door outside handle connector (A).

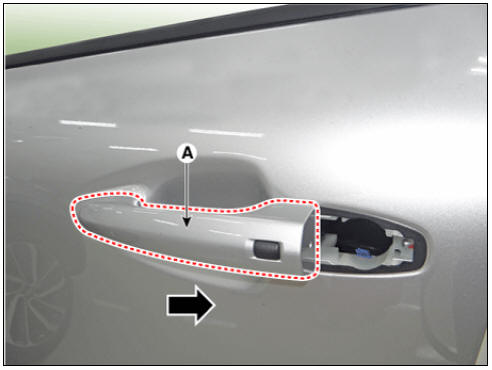

- Remove the front door outside handle (A) by sliding it rearward.
- Install in the reverse order of removal.
Warning
- Be sure to install the outside handle pad (A) between the outside handle and the door panel.
- Make sure that the connector is connected properly.
- Make sure that the door locks/unlocks and opens/closes properly.
