KIA Niro: LCD display modes

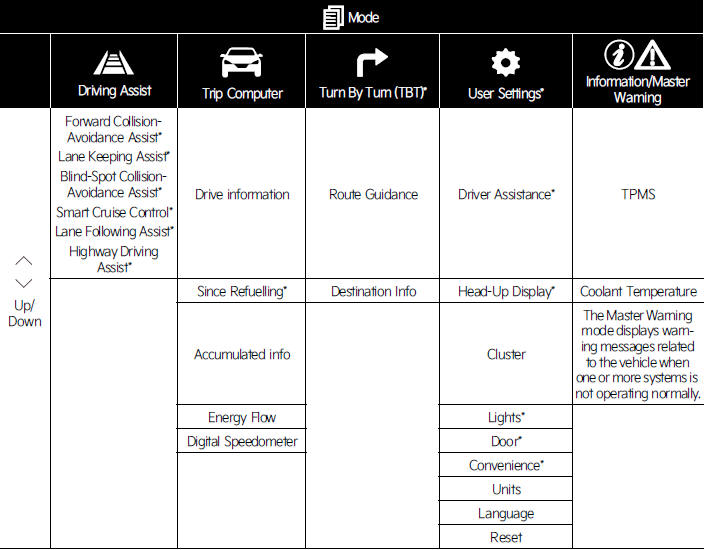

LCD display modes

* : if equipped

* If you press OK button for more than 1 second when the Driving Assist mode is being displayed, it leads to Driver assistance settings menu on the infotainment system screen.

Electric energy economy

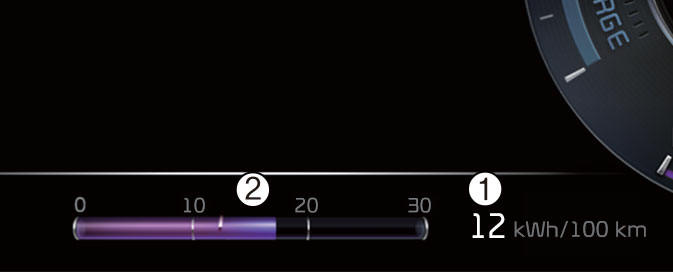

Electric energy economy

  1. Average electric energy economy
  2. Instant electric energy economy

Average electric energy economy (1)

The average electric energy economy is calculated by the total driving distance and energy consumption since the last average electric energy economy resets.

  • On vehicle start: The information will automatically reset when the driver's door is opened after the vehicle is turned off, or approximately 3 minutes have passed after the vehicle is turned off.
  • After recharging: The information will reset to default automatically after recharging.
  • Manually: Press and hold the OK button on the steering wheel when the average fuel economy is displayed.

Instant electric energy economy (2)

Displays the instant electric energy economy during the last few seconds when the vehicle speed is more than approximately 10 km/h (6 mph).

Driving assist mode

This mode displays the state of:

  • Forward Collision-Avoidance Assist
  • Lane Keeping Assist
  • Blind-Spot Collision-Avoidance Assist
  • Smart Cruise Control
  • Lane Following Assist
  • Highway Driving Assist

Trip computer mode

* You may change through items in the following order.

Drive Info

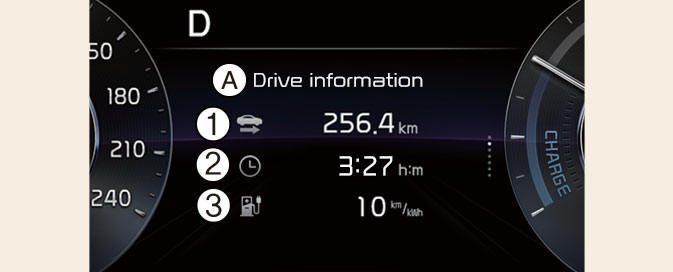

Drive Info

A: Drive information

  1. Accumulated trip distance
  2. Total driving time
  3. Average energy consumption

The driver's door is opened after turning off the vehicle or the vehicle is turned on after 3 minutes have passed, the Drive Info screen will reset.

After recharging

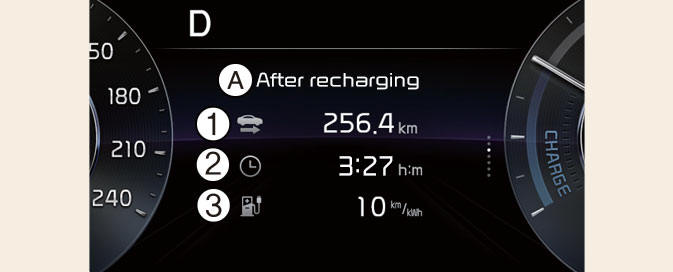

After recharging

A: After recharging

  1. Accumulated trip distance
  2. Total driving time
  3. Average energy consumption

The information after recharging.

To manually reset the information, press and hold the OK button when viewing the After recharging.

Accumulated Info

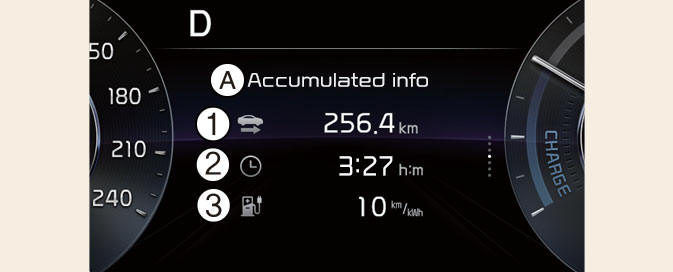

Accumulated Info

A: Accumulated info

  1. Accumulated trip distance
  2. Total driving time
  3. Average energy consumption

The information is accumulated starting from the last reset.

To manually reset the information, press and hold the OK button when viewing the Accumulated Info.

NOTICE

  • The vehicle must be driven for a minimum of 300 meters (0.19 miles) since the last cycle before the accumulated driving information is recalculated.
  • The average electric energy economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 meters (0.03 miles) since the EV button is turned to ON.

Energy flow

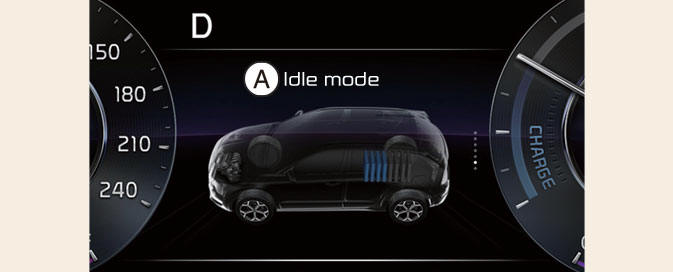

Energy flow

A: Idle mode

  • The electric vehicle system informs the drivers its energy flow in various operating modes.

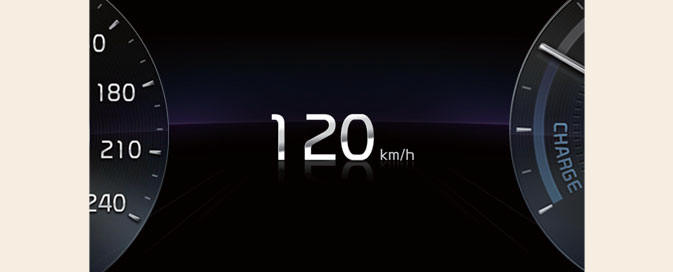

Digital speedometer

Digital speedometer

Indicates the speed of the vehicle.

Turn By Turn (TBT) mode

This mode displays the Navigation status.

Information mode

Tire pressure

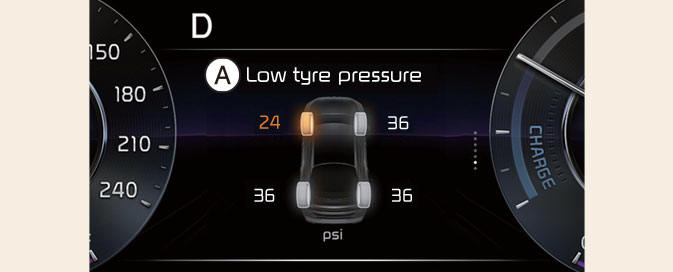

Tire pressure

A: Low tyre pressure

  • Information related to Tire Pressure.

    Refer to "Tire Pressure Monitoring System (TPMS) (if equipped)"

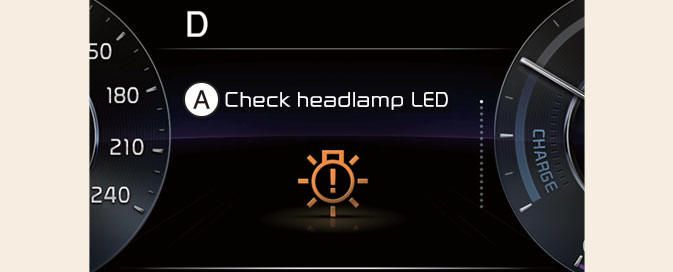

Master warning mode

Master warning mode

A: Check headlamp LED

Master warning mode

This mode informs you of the following situations:

  • Driver assistance system malfunction, limitation or radar/camera blockage
  • LED headlamp malfunction
  • Lamp malfunction
  • TPMS failure, low tire pressure, etc.

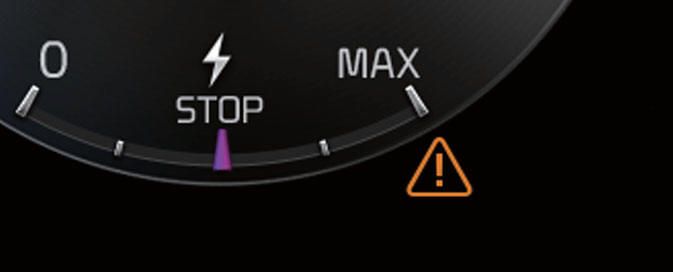

At this time, a Master Warning icon ( ) will appear in the lower right corner on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.
