KIA Niro: Rear Door Outside Handle | Rear Door Latch

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body (Interior And Exterior) / Rear Door / Rear Door Outside Handle | Rear Door Latch

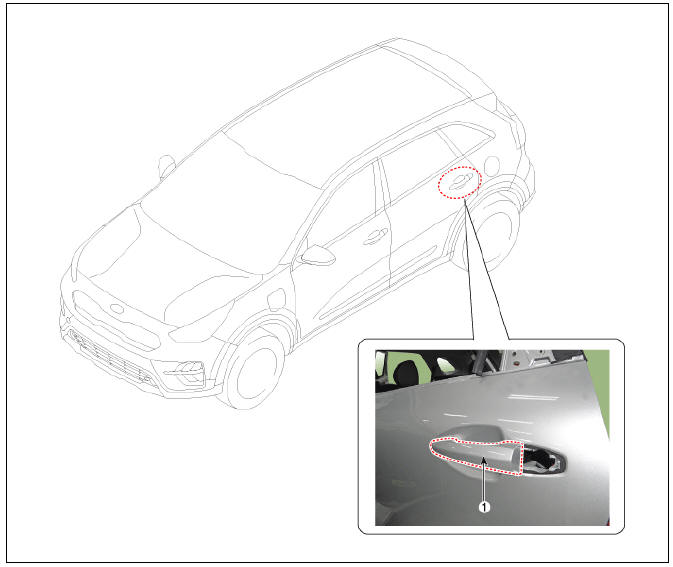

  1. Rear door outside handle

Replacement

  1. Remove the rear door trim.

    (Refer to Rear Door - "Rear Door Trim")

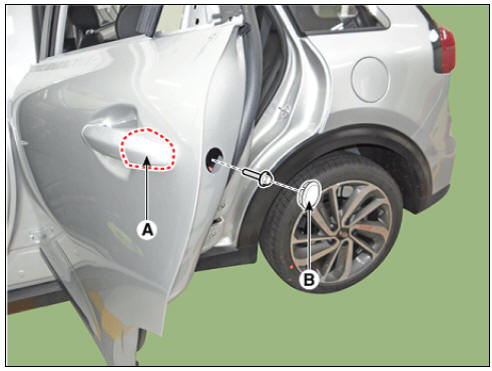

  2. Remove the rear door outside handle cover (A) after loosening the mounting bolt.

Tightening torque : 3.9 - 5.9 N*m (0.4 - 0.6 kgf*m, 2.9 - 4.3 lb*ft)

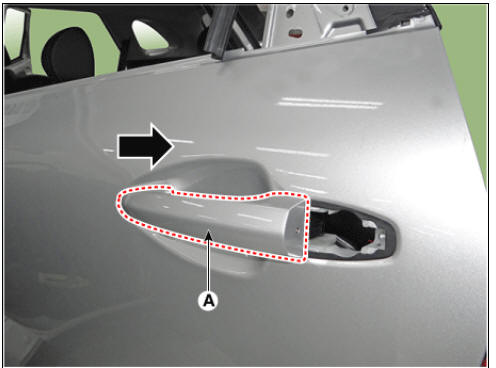

  1. Remove the rear door outside handle (A) by sliding it rearward.

  1. Install in the reverse order of removal.

Warning

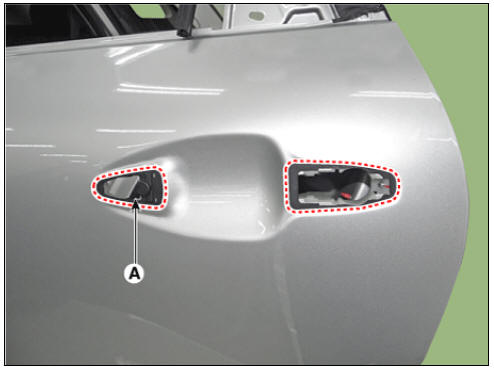

  • Be sure to install the outside handle pad (A) between the outside handle and the door panel. Make sure that the connector is connected properly.
  • Make sure that the connector is connected properly.
  • Make sure that the door locks/unlocks and opens/closes properly.

Rear Door Latch

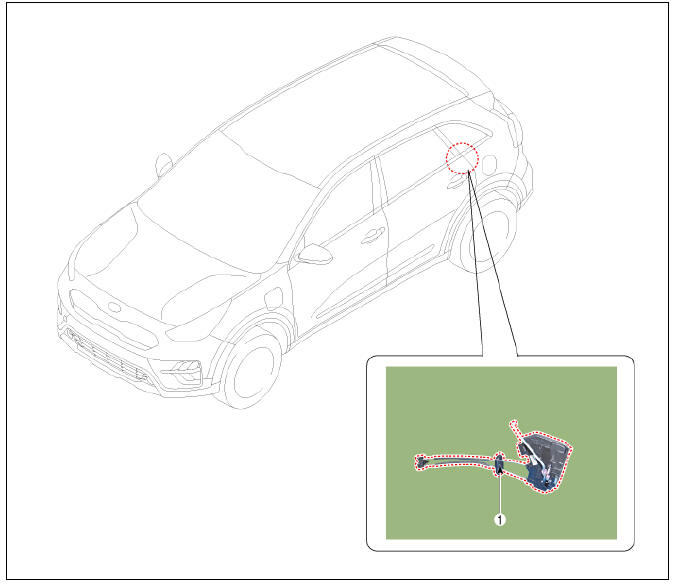

  1. Rear door latch

Replacement

  1. Remove the rear door module.

    (Refer to Rear Door - "Rear Door Module")

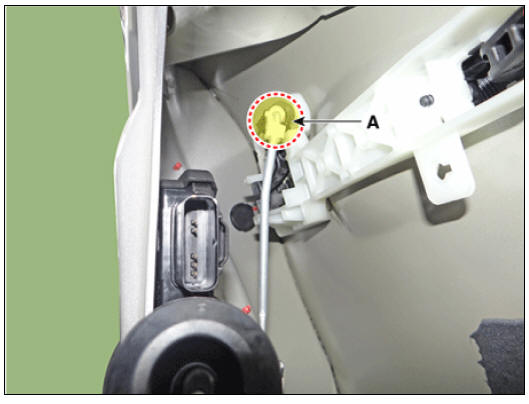

  2. Loosen the rear door outside handle base mounting bolt (A).

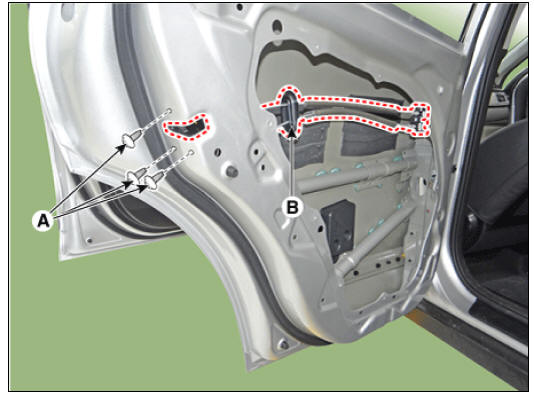

  1. Remove the rear door latch (B) after loosening the mounting screw (A).

  1. Install in the reverse order of removal.

Warning

  • Make sure that the connector is connected properly.
  • Make sure that the door locks/unlocks and opens/closes properly.
  • Replace any damaged clips.
