KIA Niro: Rear pillar trim

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body (Interior And Exterior) / Interior Trim / Rear pillar trim

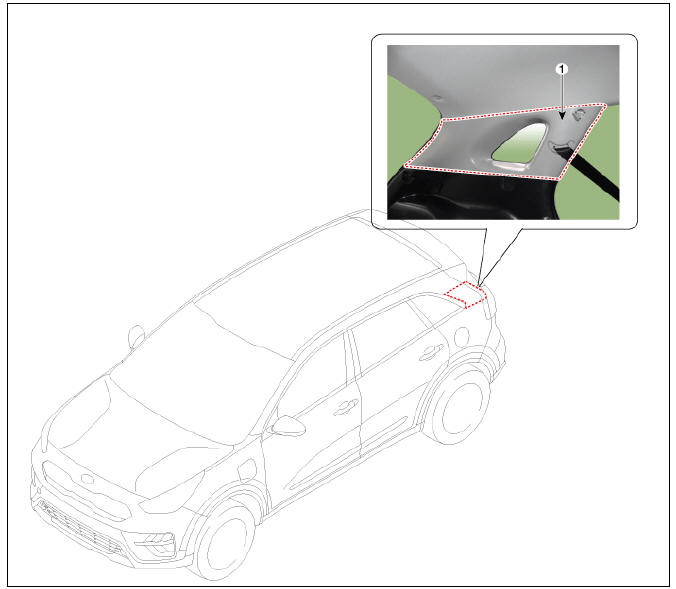

Component Location

  1. Rear pillar trim

Replacement

  1. Separate the rear seat belt lower anchor (A) after loosening the bolt.

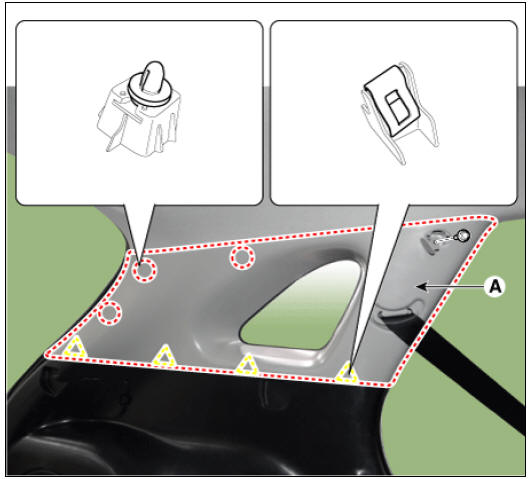

  1. Remove the rear pillar trim (A) after loosening the mounting bolts.

  1. Install in the reverse order of removal.

Warning

Replace any damaged clips.
