KIA Niro: Smart Cruise Control malfunction

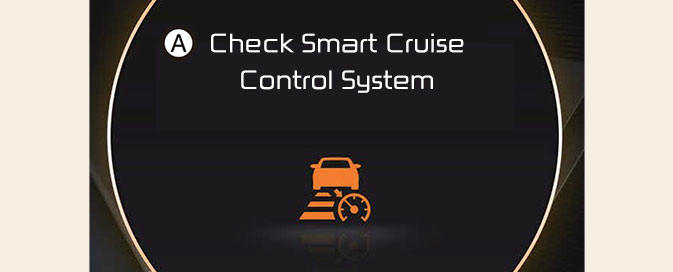

A: Check Smart Cruise Control System
When Smart Cruise Control is not working
properly, the warning message will
appear, and the (
) warning light
will
appear on the cluster. Have Smart
Cruise Control be inspected by a professional
workshop. Kia recommends visiting
an authorized Kia dealer/service
partner.
Smart Cruise Control disabled

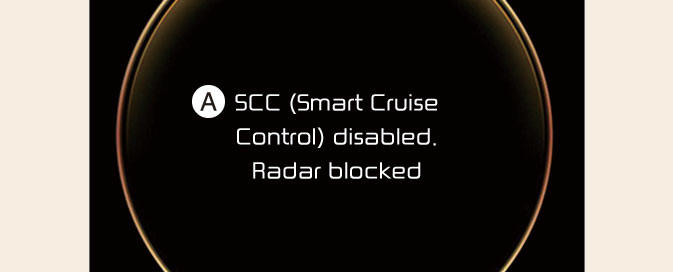

A: SCC (Smart Cruise Control) disabled.
Radar blocked
When the front radar cover or sensor is covered with snow, rain, or foreign material, it can reduce the detecting performance and temporarily limit or disable Smart Cruise Control.
If this occurs the warning message will appear for a certain period of time on the cluster.
Smart Cruise Control will operate properly when snow, rain or foreign material is removed.
Always keep it clean.
WARNING
Even though the warning message does not appear on the cluster, Smart Cruise Control may not properly operate.
CAUTION
Smart Cruise Control may not properly operate in an area (e.g. open terrain), where there is nothing to detect, or detecting sensor is covered in foreign material after turning ON the vehicle.
