KIA Niro: Steering Angle Sensor (SAS) Calibration and Set the steering feel torque to zero
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Steering System / Electric Power Steering / Steering Angle Sensor (SAS) Calibration and Set the steering feel torque to
zero
Diagnosis with KDS
Warning
- Check that the battery is fully charged before "Steering Angle Sensor (SAS) Calibration".
- Be careful not to disconnect any cables connected to the vehicle or scan tool during "Steering Angle Sensor (SAS) Calibration".
- After completing the "Steering Angle Sensor (SAS) Calibration", switch off the ignition and wait for several seconds. Then, start the engine to confirm normal operation of the vehicle.
- Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the selfdiagnosis device after key is ON.
- Select the "vehicle model" and "Motor Driven Power Steering" on KDS vehicle selection screen.

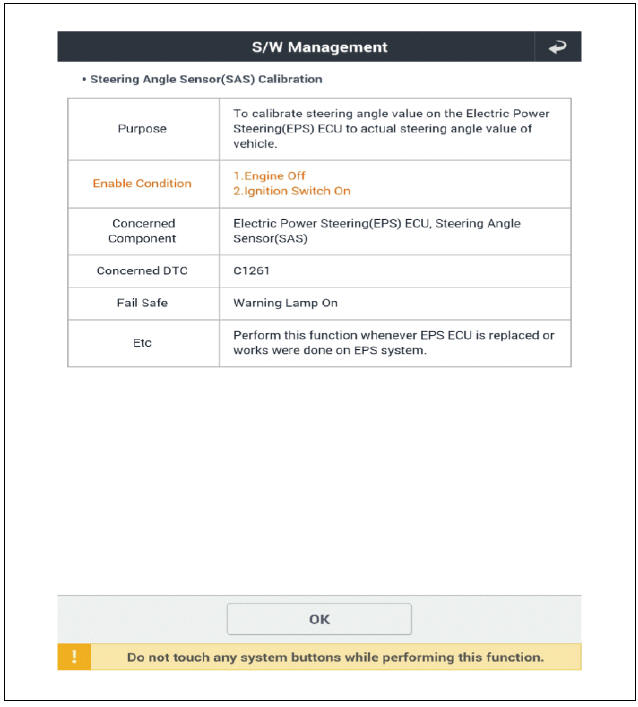

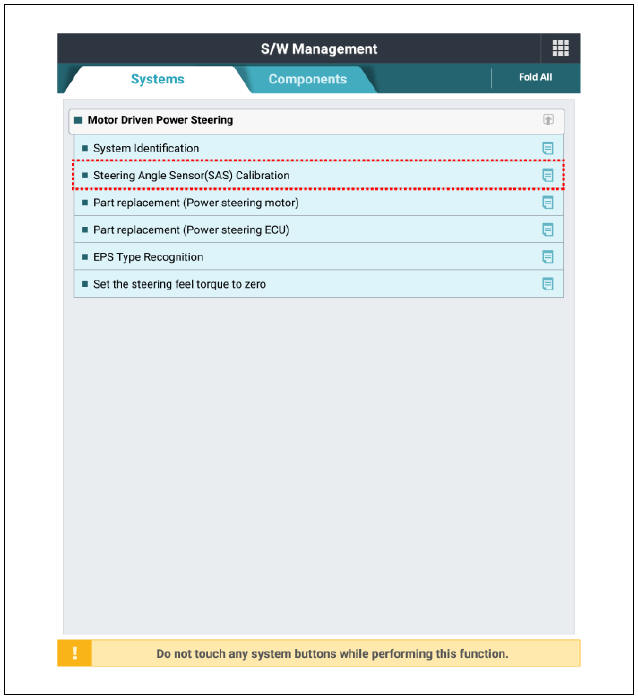

- Select the "Steering Angle Sensor (SAS) Calibration" on KDS screen, then select OK.

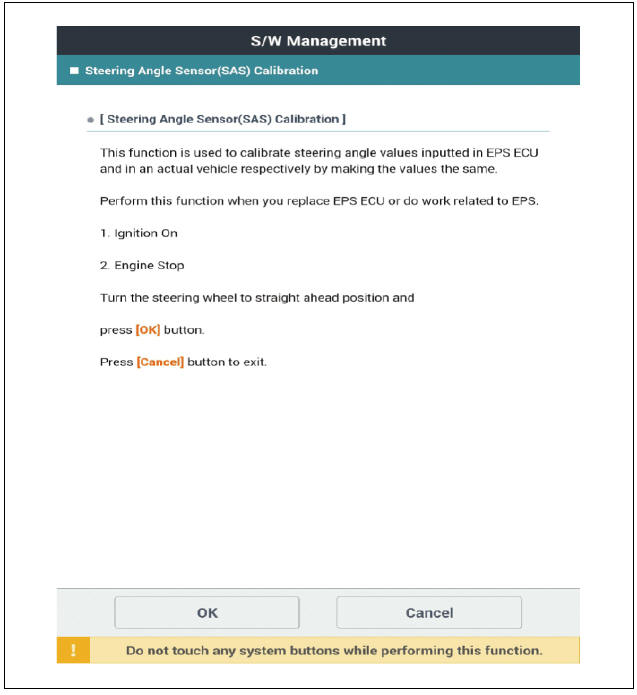

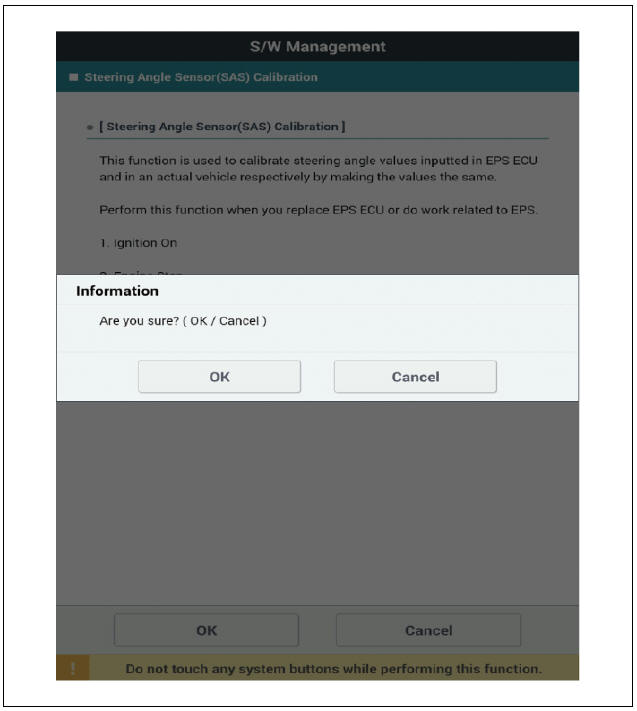

- Proceed with the test according to the screen instructions.

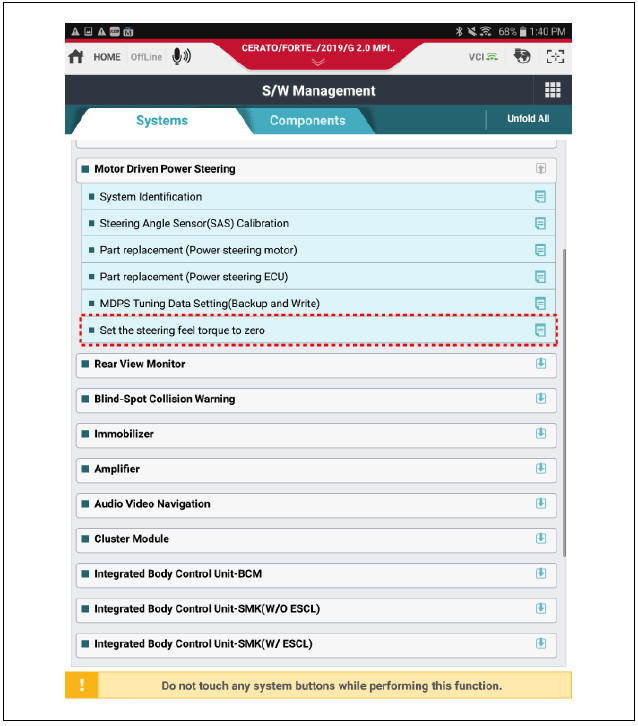

- Select the "Set the steering feel torque to zero" on KDS screen, then select OK.

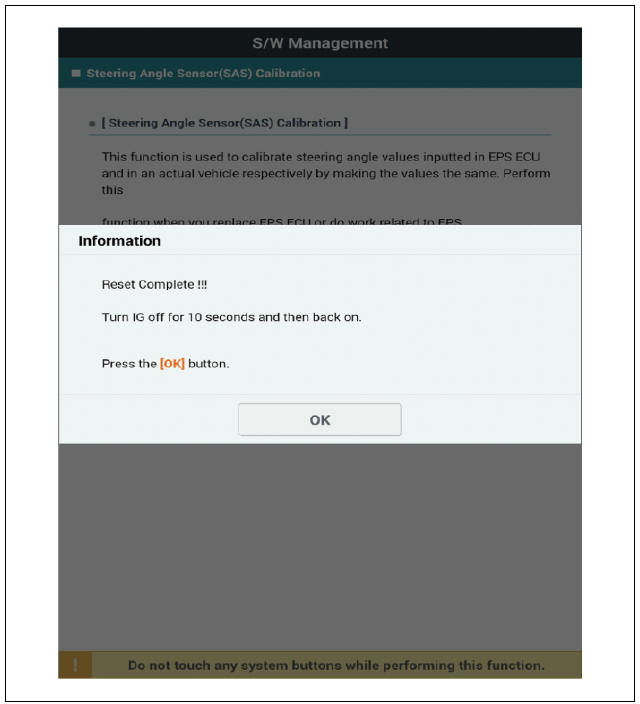

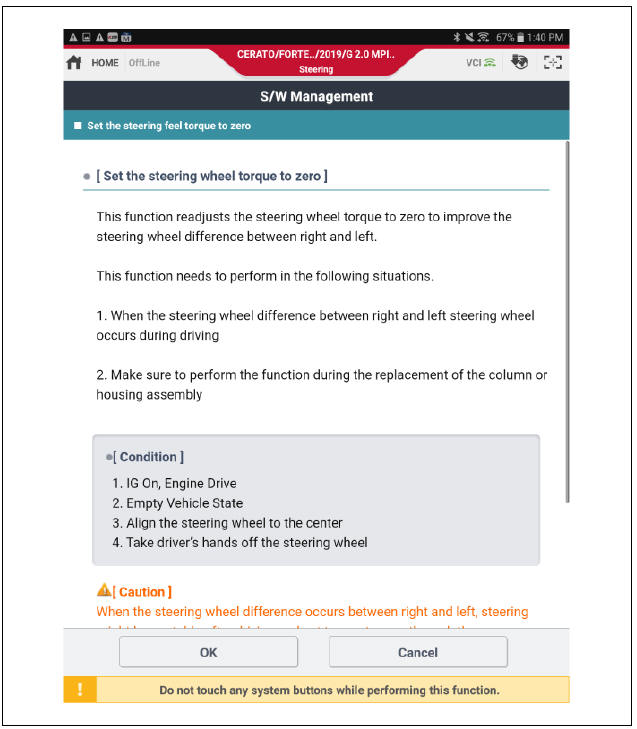

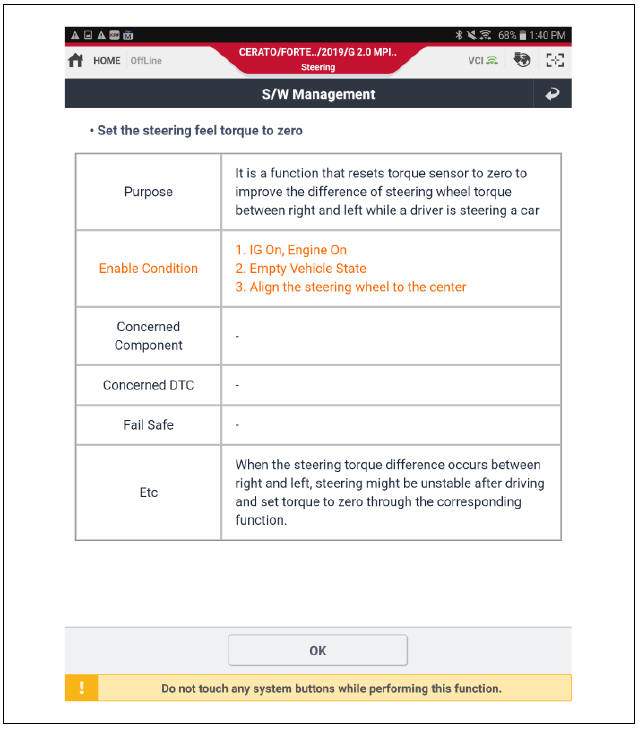

- Proceed with the test according to the screen instructions.
- Remove the DTC.
- Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.
