KIA Niro: Washers (Kia NIRO Hybrid)

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Features of your vehicle / Wipers and washers / Washers (Kia NIRO Hybrid)

Controlling washers

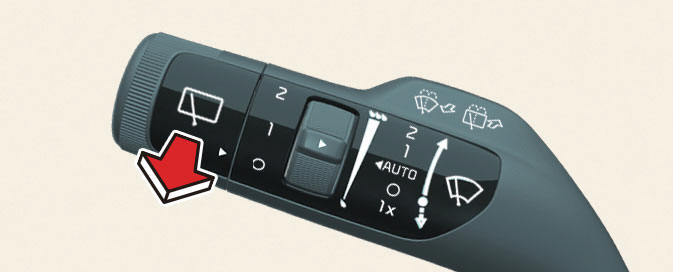

Type A
Type A

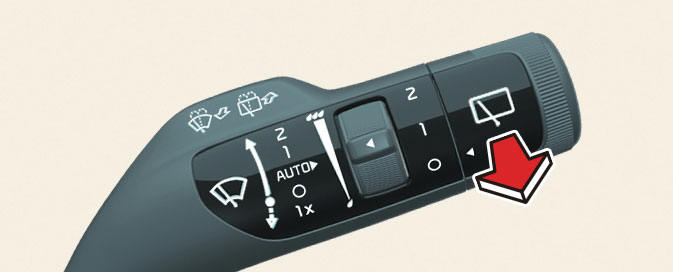

Type B
Type B

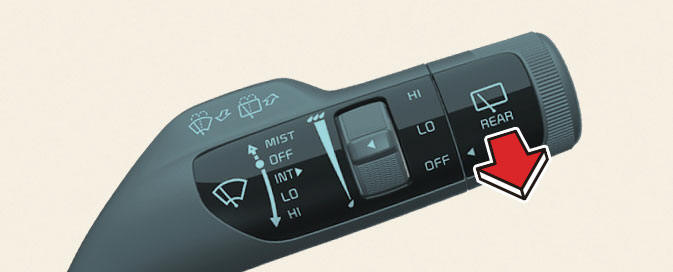

Type C
Type C

Operation

Move the wiper speed control switch to / position.
Pull/push the lever to spray washer fluid on the windshield.
The wipers run several times.

WARNING

Do not use the washer in freezing temperatures without first warming the windshield with the defrosters; the washer solution could freeze on the windshield and obscure your vision.

CAUTION

To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.
To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry.
To prevent damage to the wiper blades, do not use gasoline, kerosene, paint thinner, or other solvents on or near them.
To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually.
To prevent possible damage to the wipers and washer system, use antifreezing washer fluids in the winter season or cold weather.
