KIA Niro: Controlling fan speed (Kia Niro EV)

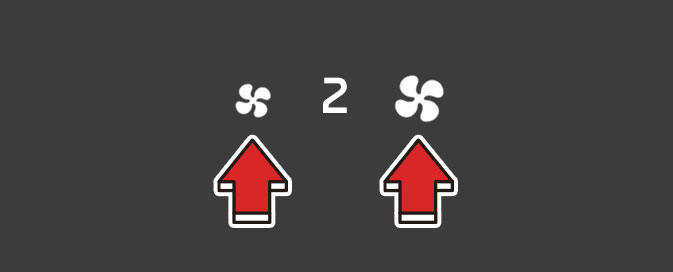

  • Press the left or right button to adjust the speed.

Controlling fan speed (Kia Niro EV)

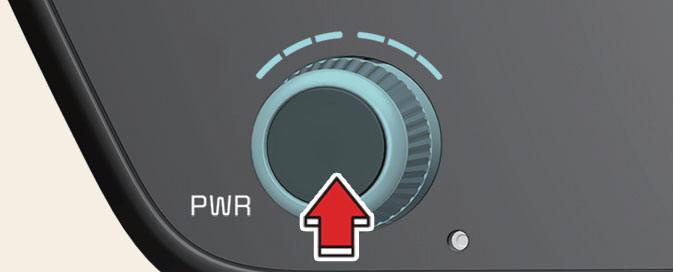

  • Press the knob to turn the blowers off.

Controlling fan speed (Kia Niro EV)


  • Continuously using the climate control system in the recirculated air position may fog the glass, obscure visibility and make the air in the passenger compartment stale.
  • Do not sleep in a vehicle with the air conditioning or heating system on. It may cause serious harm or death due to a drop in the oxygen level and/or body temperature.
  • Continuously using the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.


Operating the blower when the EV button is in the ON position could cause the battery to discharge. Operate the blower when the vehicle is running.


  • Prolonged use of the air conditioning with the re circulated air position selected will result in excessively dry air in the passenger compartment.
  • To turn the automatic operation off, select any button or switch of the following:
  • Mode selection button
  •  Air conditioning button
  •  Front-windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will illuminate on the information display once again.)
  •  Fan speed control knob

The selected function will be controlled manually while other functions operate automatically.

  • For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 22 C (72 F).
  • Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.
  • To help improve microphone voice input sound, fan speed may automatically slow down for a couple of minutes when you activate voice recognition or hands free.
  • When charging or right after charging the high voltage battery, the cooling will be made using air conditioner system in order to control the high voltage battery temperature.

    At this time, the noise might occur by the air conditioner compressor and cooling fan, but this is due to normal operation.
