KIA Niro: DCT (Dual Clutch Transmission) System - Troubleshooting

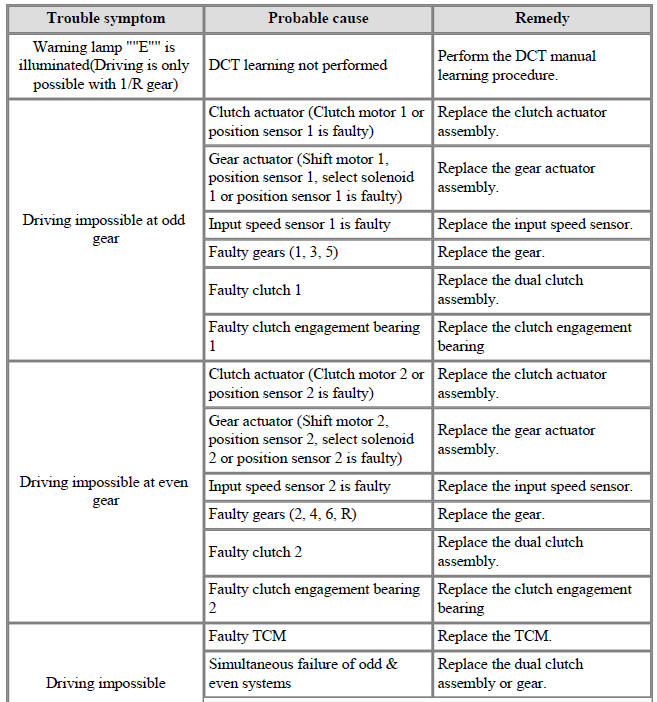

Trouble symptom:



Warning lamp ""E"" is illuminated(Driving is only possible with 1/R gear)



Probable cause → Remedy



DCT learning not performed → Perform the DCT manual learning procedure.



Trouble symptom:



Driving impossible at odd gear



Probable cause → Remedy



Clutch actuator (Clutch motor 1 or position sensor 1 is faulty) →Replace the clutch actuator assembly.

Gear actuator (Shift motor 1, position sensor 1, select solenoid 1 or position sensor 1 is faulty) →Replace the gear actuator assembly

Input speed sensor 1 is faulty →Replace the input speed sensor.

Faulty gears (1, 3, 5) →Replace the gear.

Faulty clutch 1 →Replace the dual clutch
assembly.

Faulty clutch engagement bearing 1 → Replace the clutch engagement
bearing

Trouble symptom:



Driving impossible at even gear



Probable cause → Remedy



Clutch actuator (Clutch motor 2 or position sensor 2 is faulty)  →Replace the clutch actuator assembly.

Gear actuator (Shift motor 2, position sensor 2, select solenoid 2 or position sensor 2 is faulty)  → Replace the gear actuator assembly.

Input speed sensor 2 is faulty  → Replace the input speed sensor.

Faulty gears (2, 4, 6, R)  →Replace the gear.

Faulty clutch 2  →Replace the dual clutch
assembly.

Faulty clutch engagement bearing 2 → Replace the clutch engagement
bearing

Trouble symptom:



Driving impossible



Probable cause → Remedy



Faulty TCM →Replace the TCM.



Simultaneous failure of odd & even systems →Replace the dual clutch assembly or gear.

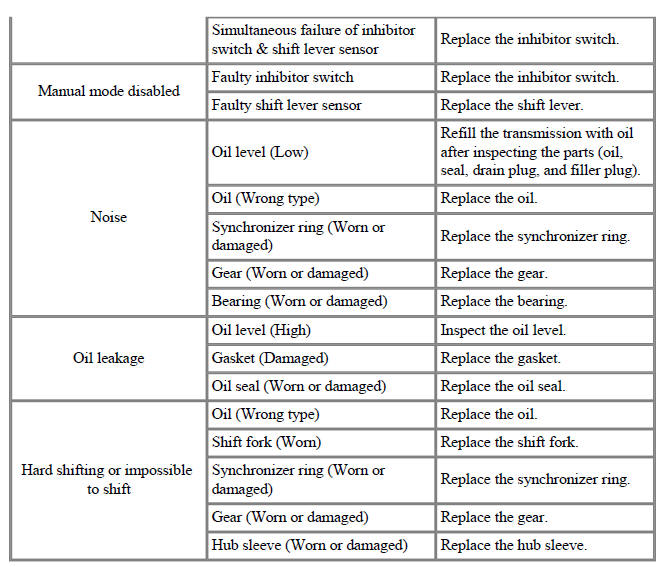

Simultaneous failure of inhibitor switch & shift lever sensor →Replace the inhibitor switch.



Trouble symptom:



Manual mode disabled



Probable cause → Remedy



Faulty inhibitor switch →Replace the inhibitor switch.



Faulty shift lever sensor →Replace the shift lever.



Trouble symptom:



Noise



Probable cause → Remedy



Oil level (Low) → Refill the transmission with oil after inspecting the parts (oil, seal, drain plug, and filler plug).



Oil (Wrong type)→ Replace the oil.



Synchronizer ring (Worn or damaged) → Replace the synchronizer ring.



Gear (Worn or damaged) → Replace the gear.



Bearing (Worn or damaged) → Replace the bearing.



Trouble symptom:



Oil leakage



Probable cause → Remedy



Oil level (High) → Inspect the oil level.



Gasket (Damaged) → Replace the gasket.



Oil seal (Worn or damaged) → Replace the oil seal.



Trouble symptom:



Hard shifting or impossible to shift



Probable cause → Remedy



Oil (Wrong type) → Replace the oil.



Shift fork (Worn) → Replace the shift fork.



Synchronizer ring (Worn or damaged) → Replace the synchronizer ring.



Gear (Worn or damaged) → Replace the gear.



Hub sleeve (Worn or damaged) → Replace the hub sleeve.
