KIA Niro: Driver Attention Warning operation
Basic function
The basic function of Driver Attention Warning is to warn the driver 'Consider taking a break'.
Taking a break

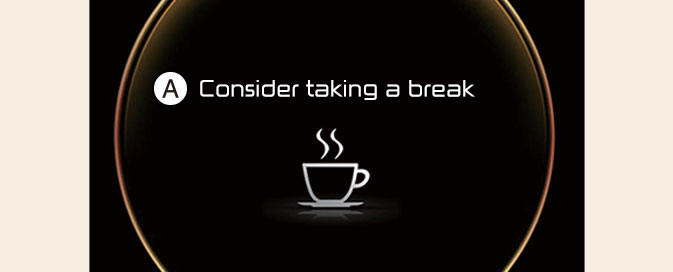

A: Consider taking a break
Warning message will appear on the cluster and an audible warning will sound to suggest that the driver take a break, when the driver's attention level is below a certain level.
- Driver Attention Warning will not suggest a break when the total driving time is shorter than 5 minutes or 10 minutes has not passed after the last break was suggested.
Driver Attention Warning (DAW) operates under the following conditions:
- Your driving speed: Approximately 0~200 km/h (0~120 mph).
WARNING
For your safety, change the Settings after parking the vehicle at a safe location.
CAUTION
- Driver Attention Warning may suggest a break depending on the driver's driving pattern or habits, even if the driver doesn't feel fatigue.
- Driver Attention Warning is a supplemental function and may not be able to determine whether the driver is inattentive.
- The driver who feels fatigued should take a break at a safe location, even though there is no break suggestion by Driver Attention Warning.
NOTICE- (Kia Niro Hybrid only)
- For more details on vehicle settings, refer to "User settings mode"
Leading vehicle departure alert function

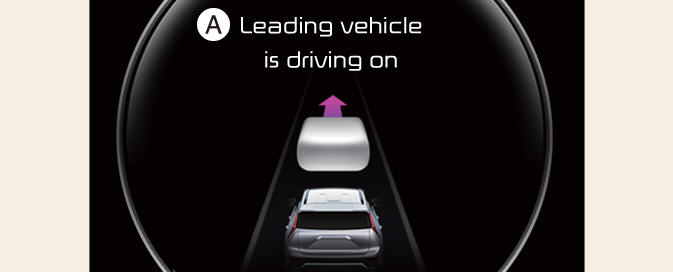

A: Leading vehicle is driving on
When a detected vehicle in front departs from a stop, Leading Vehicle Departure Alert will inform the driver by displaying the warning message on the cluster and an audible warning will sound.
WARNING
- If any other system's warning message is displayed or audible warning is generated, Leading Vehicle Departure Alert's warning message may not be displayed and audible warning may not be generated.
- The driver should hold the responsibility to safely drive and control the vehicle.
CAUTION
- Leading Vehicle Departure Alert is a supplemental function and may not alert the driver whenever the front vehicle departs from a stop.
- Always check the front of the vehicle and road conditions before departure.
NOTICE
The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.
