Description

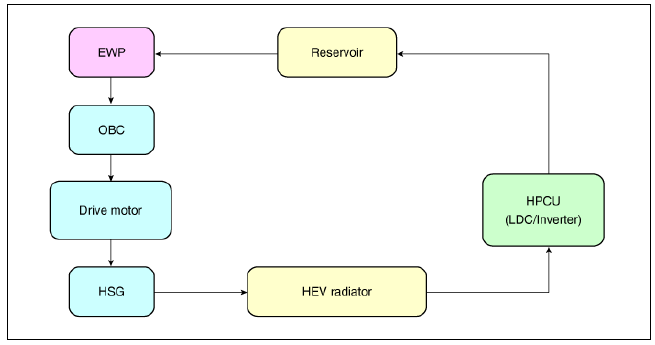

The Hybrid Power Control Unit (HPCU) uses various semiconductors that are supplied with high voltage, hence generating more heat than engine combustion devices. Overheating can decrease the efficiency of control devices, restrict proper operation and melt semiconductors in excessive heat, causing system failure. To prevent this, the hybrid system is equipped with a separate cooling system.

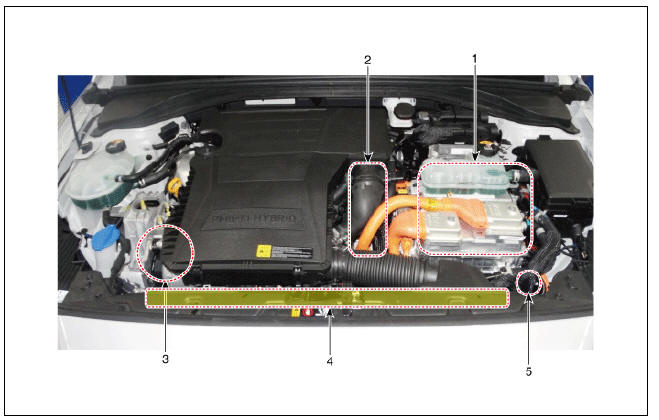

Component location
- HPCU (Hybrid Power Control Unit) (LDC+MCU+HCU+Reservoir)
- Hybrid drive motor
- Hybrid starter generator (HSG)
- Electrical radiator
- Electric water pump (EWP)
- Radiator Repair procedures
- Electric Water Pump (EWP) Repair procedures | Reservoir
- Coolant Repair procedures
