KIA Niro: Hybrid Motor System
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Hybrid Motor System
Specifications

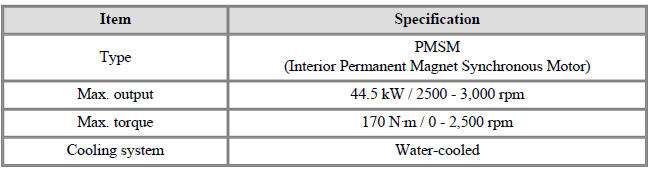

Hybrid Drive Motor

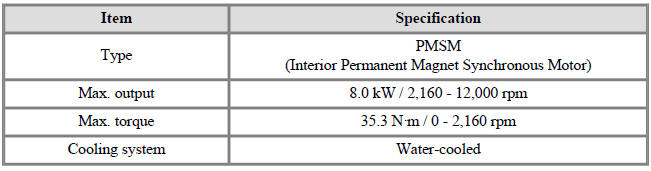

Hybrid Starter Generator (HSG)

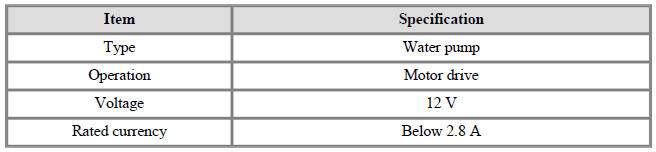

Electric Water Pump (EWP)
Coolant

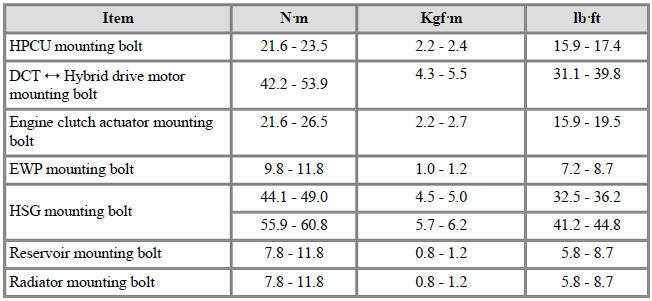

Tightening Torques

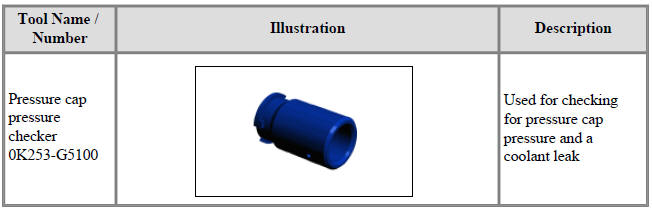

Special Service Tools
Tool Name /
Number/
Illustration / Description
Pressure cap
pressure
checker
0K253-G5100/
/Used for checking
for pressure cap
pressure and a
coolant leak
Hybrid Motor Assembly / Description And Operation
Description

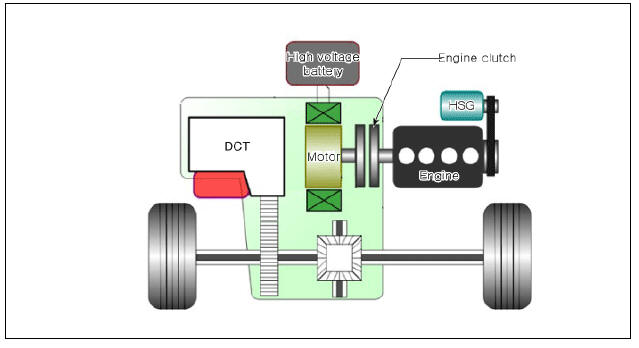

- The hybrid motor system is equipped with two electric motors - HSG and drive motor.
- The traction motor operates to move the vehicle, to reduce Noise, Vibration, and Harshness (NVH) while driving and to improve fuel efficiency.
- The electric motor takes on the role of a generator during deceleration and braking.
- The Hybrid Starter Generator (HSG) starts the engine while the vehicle is in motion.
- Hybrid Drive Motor Assembly
- Hybrid Drive Motor Assembly Components and components location, Repair procedures
- Hybrid Starter Generator(HSG)
- Hybrid Motor Control System
- Hybrid Motor Cooling System
READ NEXT:
Hybrid Drive Motor Assembly Components and components location, Repair procedures
Component
location!
HPCU (Hybrid Power Control Unit) (LDC+MCU+HCU+Reservoir)
Hybrid drive motor
Hybrid starter generator (HSG)
Electrical radiator
Electric water pump (EWP)
Components
Hybrid motor assembly
