KIA Niro: Lane-change side function/ Lane-change oncoming function (Kia Niro EV)

Lane-change oncoming function (if equipped)

Warning and control

The Lane-change oncoming function is warned and controlled by the following level.

  • Collision warning
  • Emergency steering

Collision warning

Collision warning

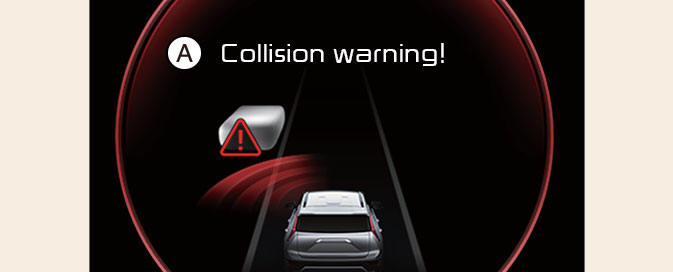

A: Collision Warning!

Collision warning will alert the driver with a warning message, an audible warning and steering wheel vibration.

Collision warning will be activated in the following conditions.

  • Your driving speed: Approximately 40~145 km/h (25~90 mph)
  • Oncoming vehicle speed: Approximately above 10 km/h (6 mph)
  • Relative speed: Approximately below 200 km/h (124 mph)

Emergency steering

Emergency steering

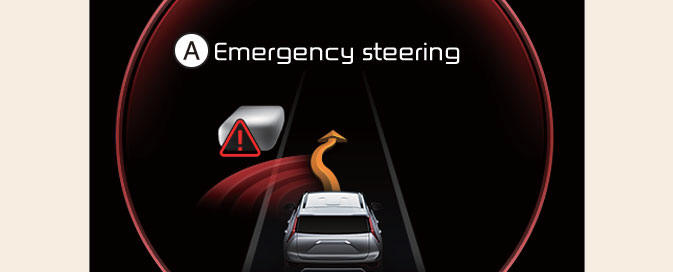

A: Emergency Steering

To warn the driver that emergency steering will be assisted, the warning message will appear on the cluster, an audible warning will sound and the steering wheel will vibrate.

Emergency steering will be activated in following conditions.

  • Your driving speed: Approximately 40~145 km/h (25~90 mph)
  • Oncoming vehicle speed: Approximately above 10 km/h (6 mph)
  • Relative speed: Approximately below 200 km/h (124 mph)

Lane-change side function (if equipped)

Warning and control

The for Lane-change side function is warned and controlled by the following level.

  • Collision warning
  • Emergency steering

Collision warning

Collision warning

Collision warning

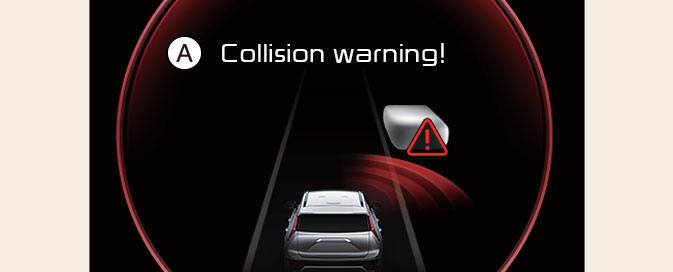

A: Collision Warning!

To warn the driver of a collision, the warning message will appear on the cluster, an audible warning will sound and the steering wheel will vibrate

Emergency steering will be activated in following conditions

  • Your driving speed: Approximately 40~145 km/h (25~90 mph)

Emergency steering

Emergency steering

Emergency steering

Emergency steering

Emergency steering

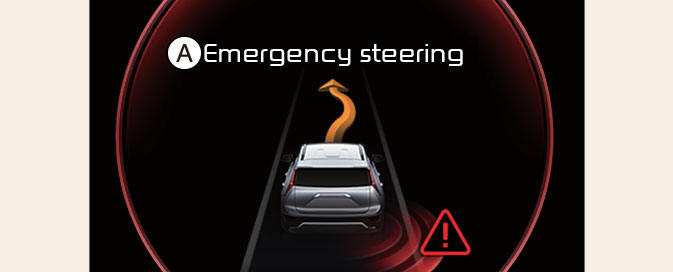

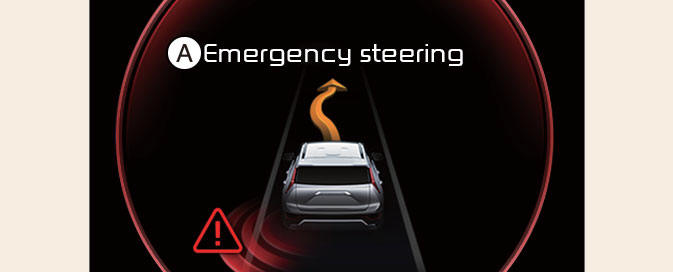

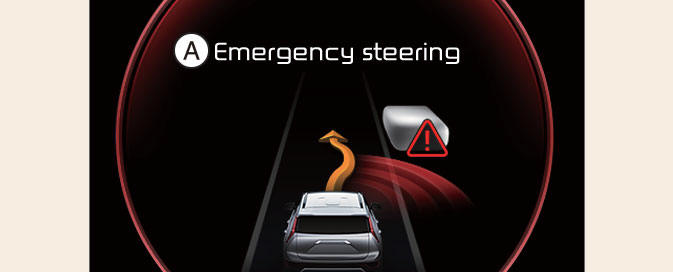

A: Emergency Steering

To warn the driver that emergency steering will be assisted, the warning message will appear on the cluster, an audible warning will sound and the steering wheel will vibrate.

The warning light on the outside rear view mirror (side view mirror) will appear when the vehicle on both lanes is detected from the rear. Steering will be assisted to avoid collision.

Emergency steering will be activated in following conditions.

  • Your driving speed: Approximately 40~145 km/h (25~90 mph)
  • Front-side vehicle or powered twowheeler: Driving

CAUTION

Lane-Change Side function does not operate if the oncoming vehicle from the front side is stopped.
