KIA Niro: Power Seat Motor

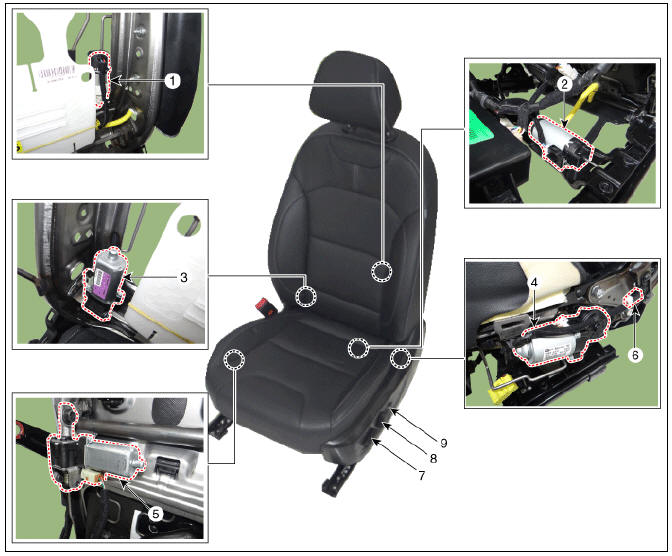

Power Seat Motor Components and components location

  1. Lumbar support motor (Horizontal)
  2. Slide motor
  3. Reclining motor
  4. Rear height motor
  5. Front tilt motor
  6. Reclining limit switch
  7. Seat cushion switch
  8. Seat back switch
  9. Lumbar support switch

Power Seat Motor Repair procedures

Inspection

Power Seat Motor

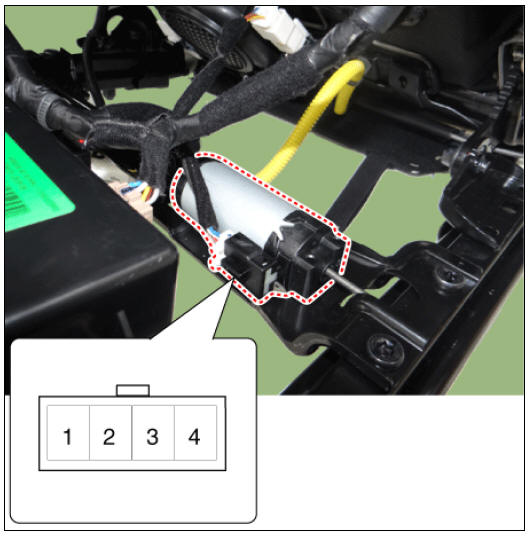

  1. Disconnect the connectors for each motor.

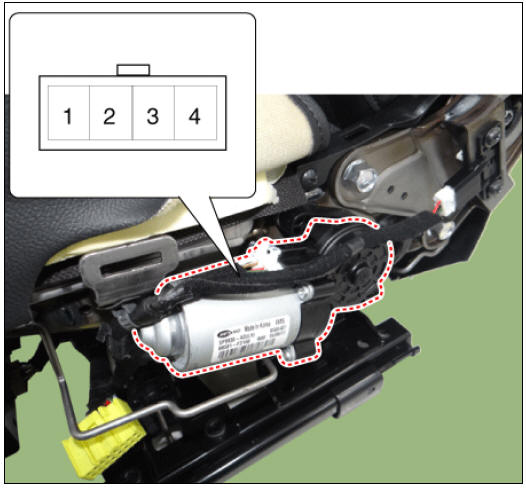

Slide motor (A)

Rear height motor (B)

Rear height motor (B)

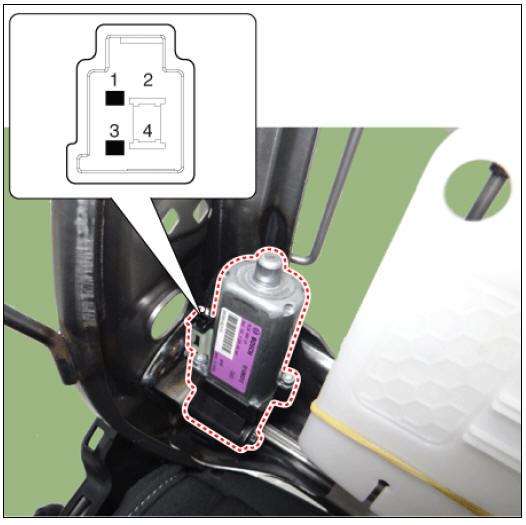

Front tilt motor (C)

Front tilt motor (C)

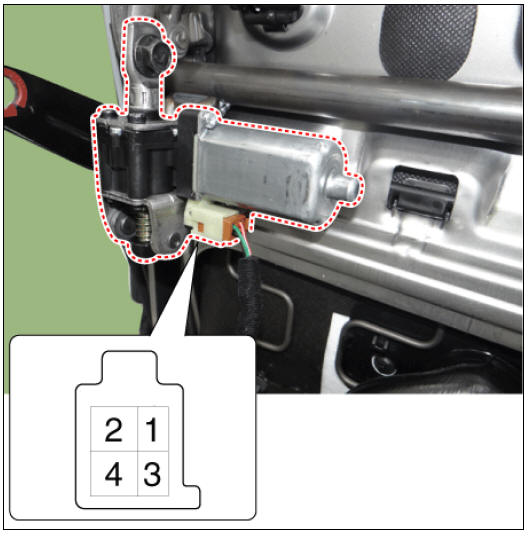

Reclining motor (D)

Reclining motor (D)

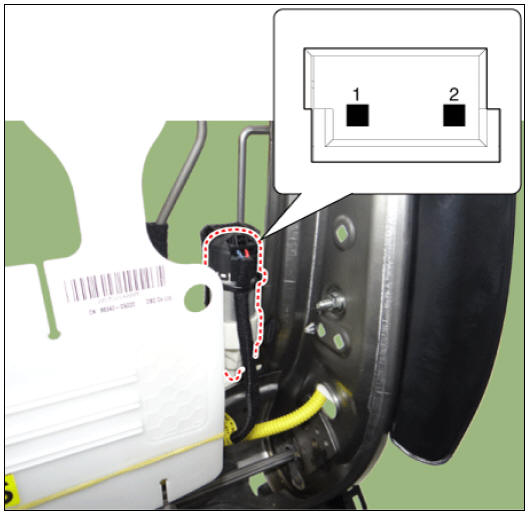

Lumbar support motor (E)

Lumbar support motor (E)

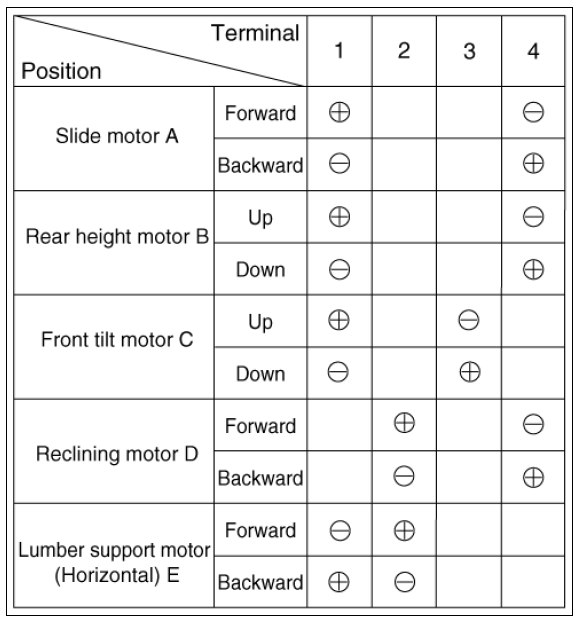

  1. When the battery power is supplied to the motor connector, check the motor for smooth operation.
  2. Reverse the connections and check that the motor turns in reverse.
  3. If the motor runs abnormally, replace it.

Driver

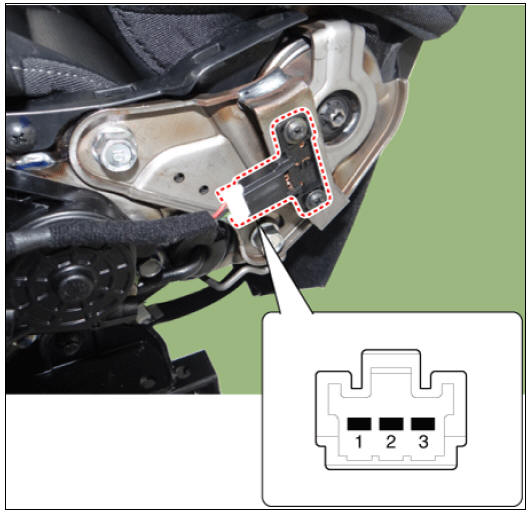

Reclining Motor Limit Switch

Reclining Motor Limit Switch

  1. Disconnect the limit switch and operate the limit switch.

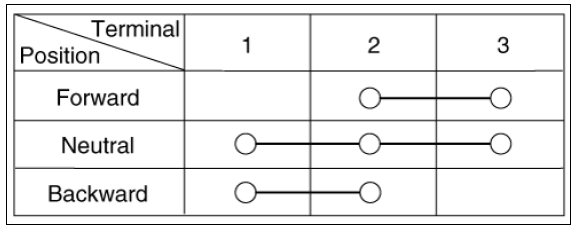

  2. Check for continuity between the terminals.
  3. Make sure that the seat operation is normal in the reverse after the maximum operation.
  4. If there is an abnormality, replace the limit switch.

Remove

Remove

Front Seat

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "Front Seat Assembly")

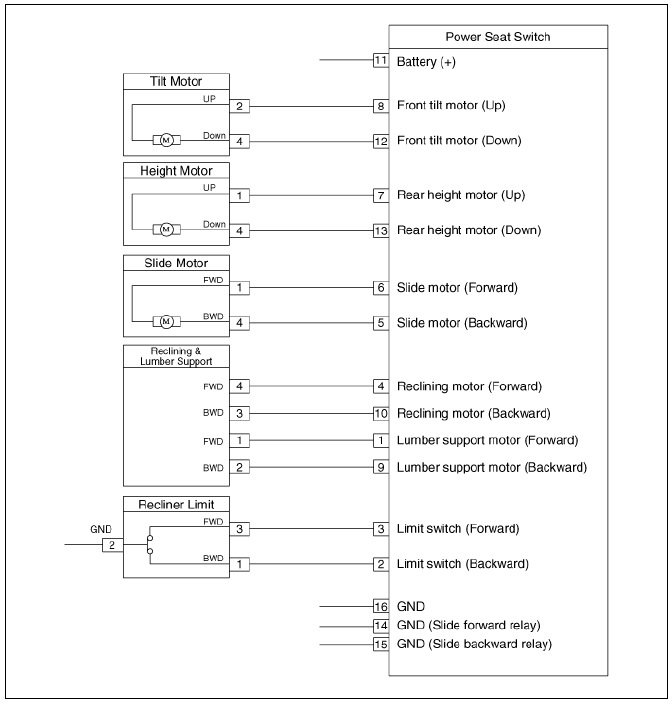

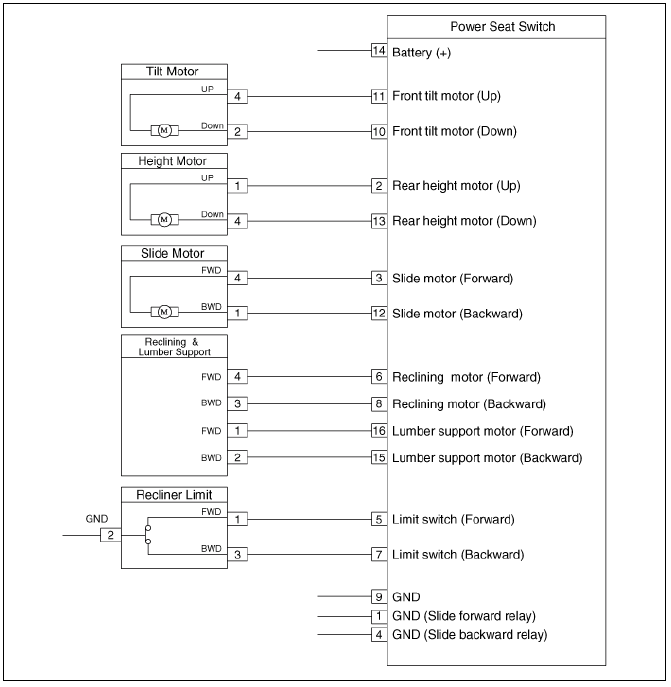

Power Seat Control Switch Schematic diagrams

Driver power seat switch

(Non-IMS Type)

(IMS Type)

(IMS Type)
