KIA Niro: Seat Heater
Front Seat Heater

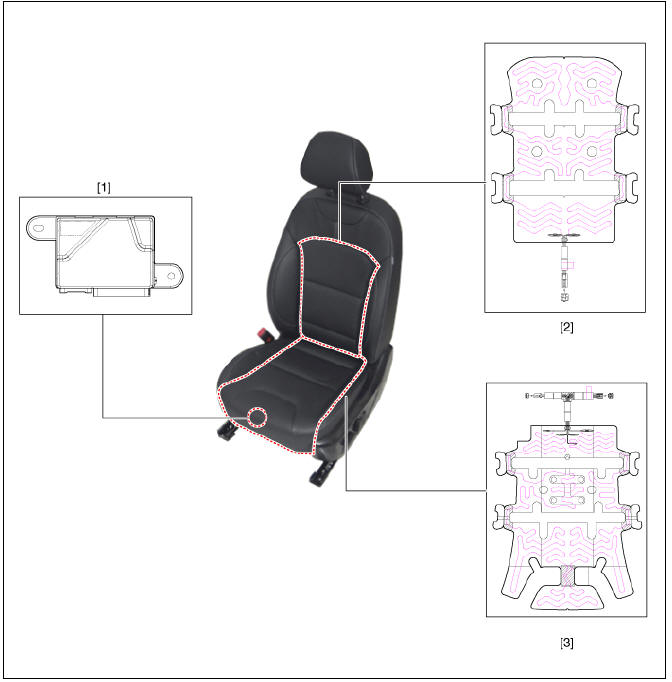

- Seat heater unit (Assist seat only)
- Front seat back heater
- Front seat cushion heater

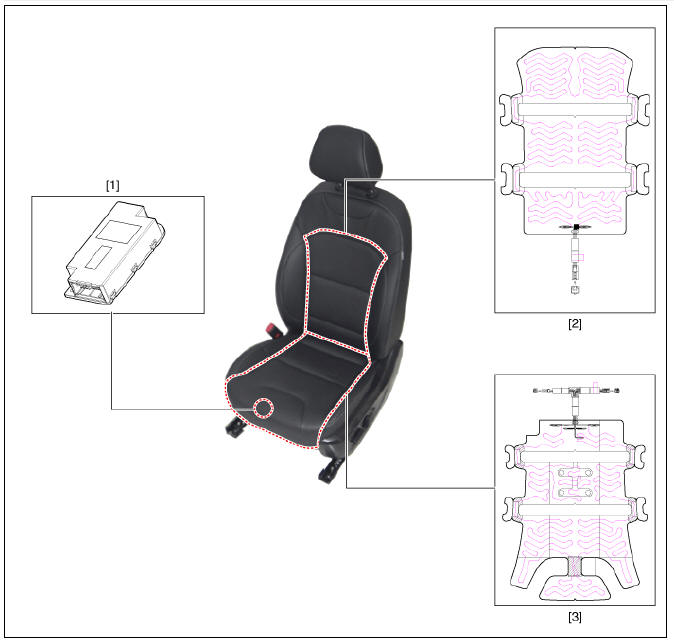

Front Seat Heater (Air Ventilation)
- Air ventilation seat unit (Assist seat only)
- Front seat back heater
- Front seat cushion heater

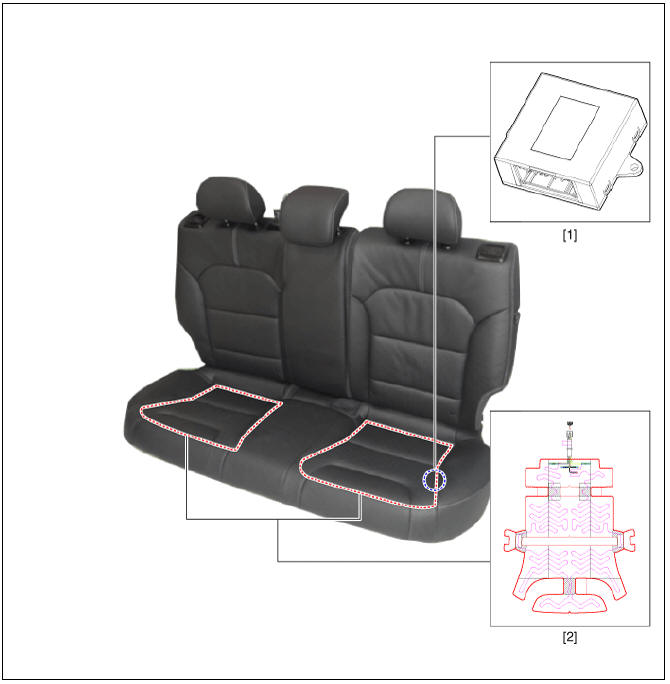

Rear Seat Heater
- Rear seat heater unit
- Rear seat cushion heater

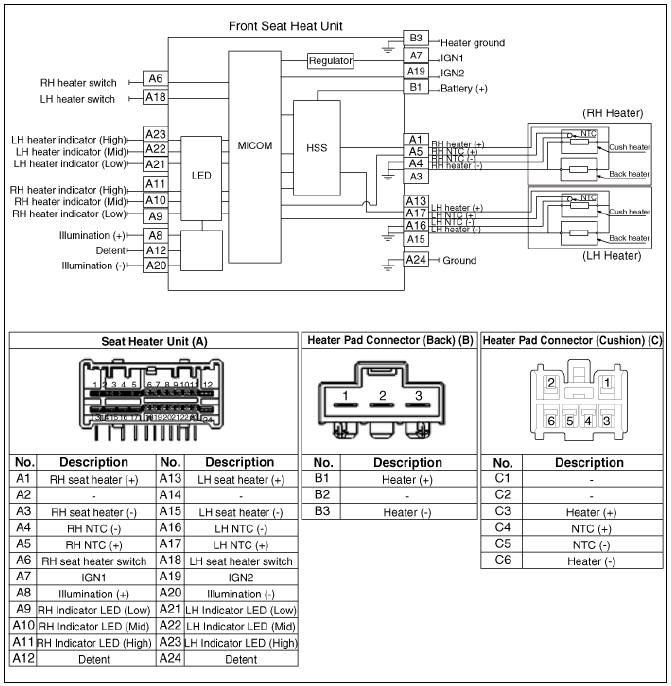

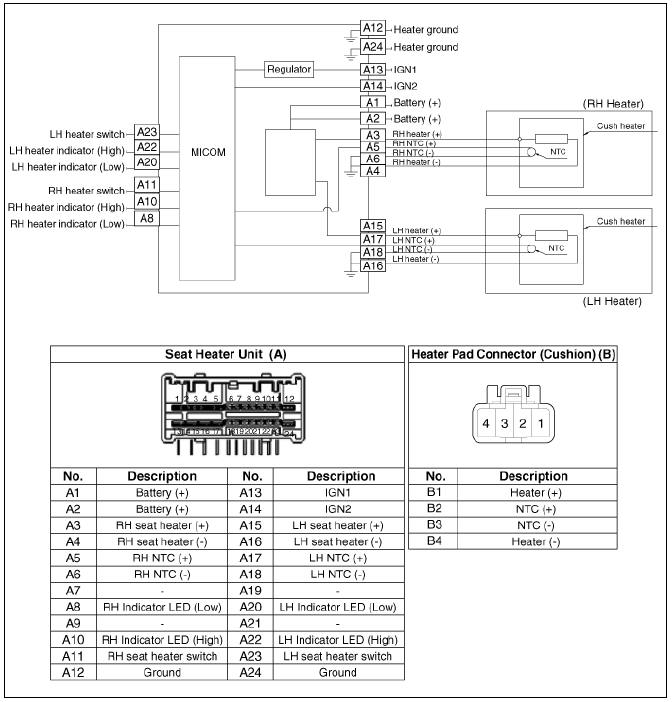

Circuit Diagram
Front Seat Heater
- Seat Heater Repair procedures
- Seat Heater Switch Repair procedures
- Air Ventilation Seat
- Lumbar Support Units
READ NEXT:
Seat Heater Repair procedures
Inspection
Front Seat Heater
Check for continuity and measure the resistance between power terminal
(heater : 3, ventilation : 4) and
ground terminal (6).
Standard value
Driver / Assists (cushion + back)
Heater seat : 1.77Ω+-10%/23Ã
Seat Heater Switch Repair procedures
Seat Heater Switch Components and components location
Front Seat Switch
Driver side seat heater switch
Passenger side seat heater switch
Rear Seat Switch
Rear seat heater switch (LH/RH)
Description
Seat Heater Smart Control
Air Ventilation Seat
Air Ventilation Seat Components and components location
Ventilation seat blower
Ventilation seat unit (Assist seat only)
Circuit Diagram
Removal
Ventilation Blower
Disconnect the negative (-) battery terminal.
Remove the fron
