Replacing the front wiper blade (Kia NIRO Hybrid)

Operation

  1. Turn off the vehicle.

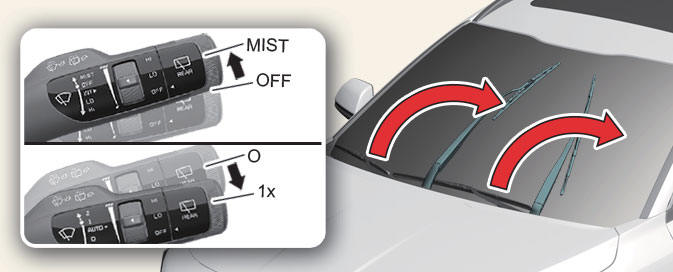

  2. Move the wiper switch to the single wiping (MIST/1x) position.
  3. Hold the wiper switch for more than 2 seconds.
  4. Type A (if equipped)
  • Raise the wiper arm.

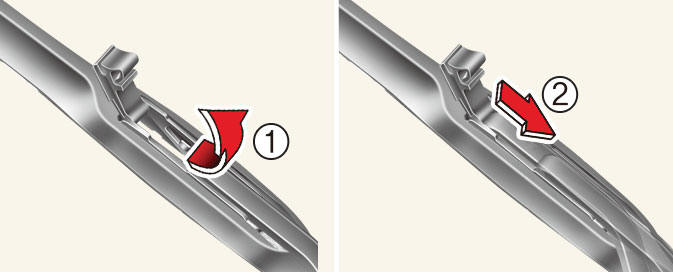

  • Lift the wiper blade clip up. Pull down the blade assembly and remove it.

Replacing the front wiper blade (Kia NIRO Hybrid)

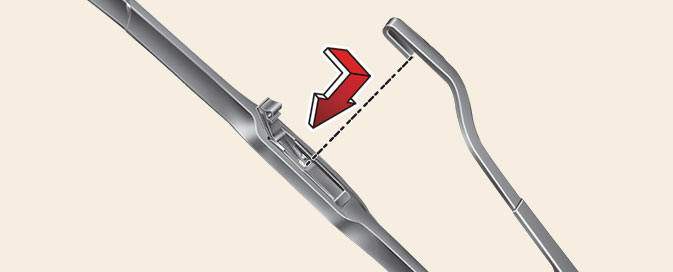

  • Install the new blade assembly.

Replacing the front wiper blade (Kia NIRO Hybrid)

  1. Type B (if equipped)

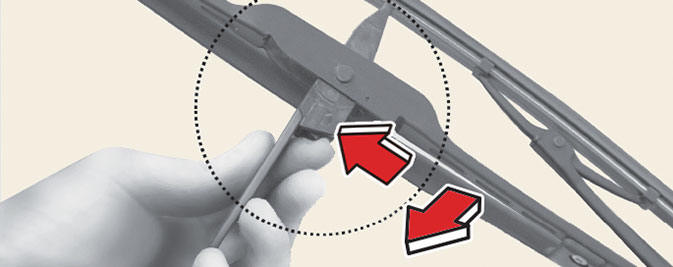

  • Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

Replacing the front wiper blade (Kia NIRO Hybrid)

  • Compress the clip and slide the blade assembly downward.

Replacing the front wiper blade (Kia NIRO Hybrid)

  • Lift it off the arm.
  • Install the blade assembly in the reverse order of removal.

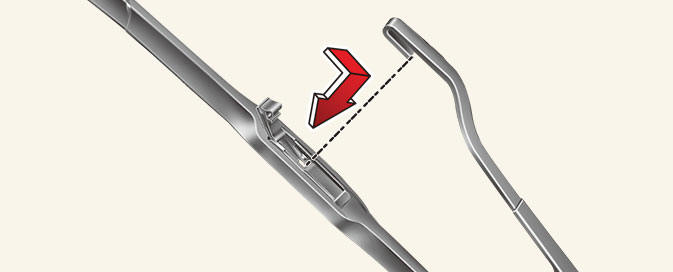

  1. Install the new blade assembly.

Replacing the front wiper blade (Kia NIRO Hybrid)

  1. Return the wiper arm on the windshield.
  2. Turn the vehicle on and wiper arms will return to the normal operating position.
