KIA Niro: Replacing the front wiper blade (Kia Niro EV)

KIA Niro EV / Hybrid (SG2) - (2021-2023) - Owner's manual / Maintenance / Wiper blade / Replacing the front wiper blade (Kia Niro EV)

Replacing the front wiper blade (Kia Niro EV)

Operation

  1. Turn off the vehicle.

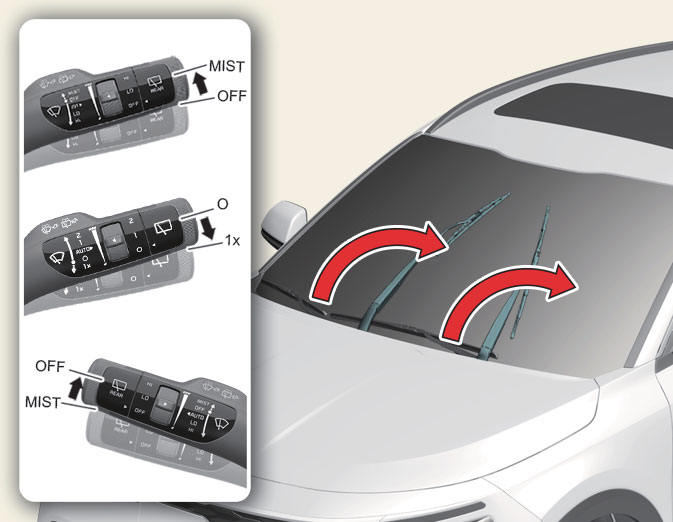

  2. Move the wiper switch to the single wiping (MIST/1x) position within 20 seconds.
  3. Hold the wiper switch for more than 2 seconds.
  4. Raise the wiper arm.

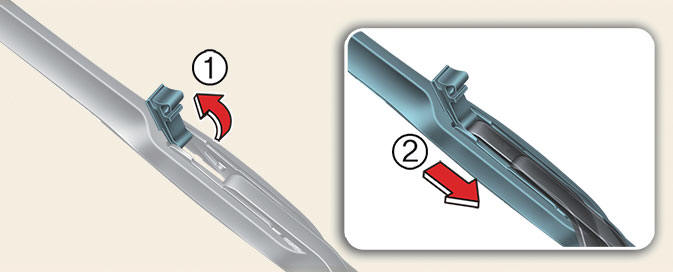

  5. Lift the wiper blade clip up (1). Pull down the blade assembly and remove it (2).

Replacing the front wiper blade (Kia Niro EV)

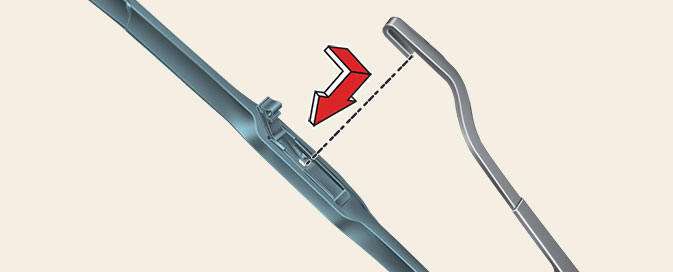

  1. Install the new blade assembly.

Replacing the front wiper blade (Kia Niro EV)

  1. Upon starting the vehicle, the wiper arms will return to their normal operating position.
