KIA Niro: ECO driving
A: Electric vehicle
- Energy information

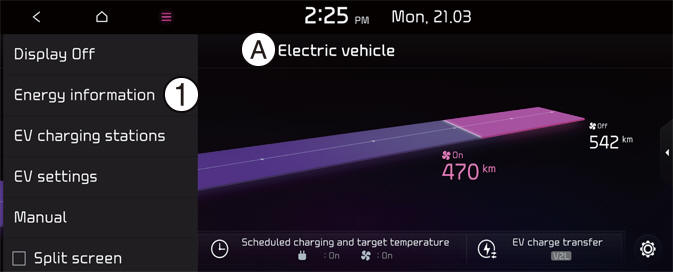

In order to check the ECO driving history, select Menu ? Energy information on the screen.

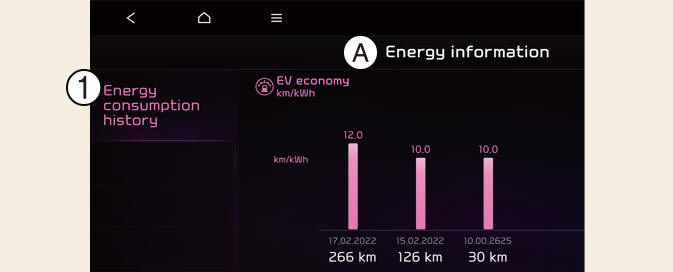

Electric energy economy history
A: Energy information
- Energy consumption history
It is possible to check the history of electric energy economy with the date and distance of previous driving. The icon is displayed on the most efficient electric energy economy record.

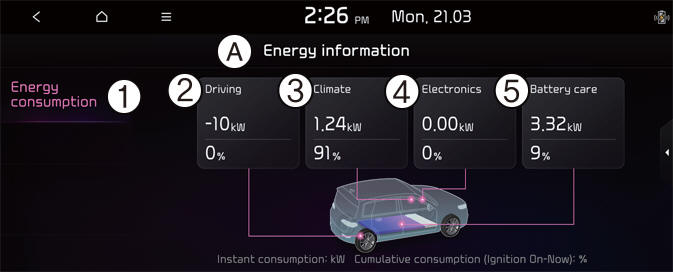

Energy consumption
In order to check the current energy consumption for each system of the vehicle, select Menu ? Energy information on the screen.
A: Energy information
- Energy consumption
A: Energy information
- Energy consumption
- Driving
- Climate
- Electronics
- Battery care
- Driving shows the total power and energy consumption of the driving motor's driving energy and regenerative energy.
- Climate shows the power and energy consumption which are used by the heater or air conditioner.
- Electronics shows the power and energy consumption which are used by the vehicle systems including the cluster, infotainment system (speaker and navigation), headlamp, vehicle control unit, etc.
- Battery care shows the momentary power and energy consumption which are used when:
- Operating the battery conditioning mode to increase the battery temperature during winter to improve the driving performance.
- Cooling down the battery temperature during summer to prevent over temperature of the battery.
NOTICE
The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.
