KIA Niro: LCD display messages

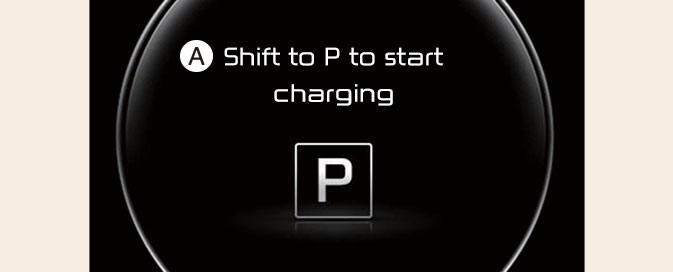

Shift to P to start charging
A: Shift to P to start charging
This message is displayed if you connect the charging cable without the gear in the P (Park) position.
Shift to P (Park) before connecting the charging cable.

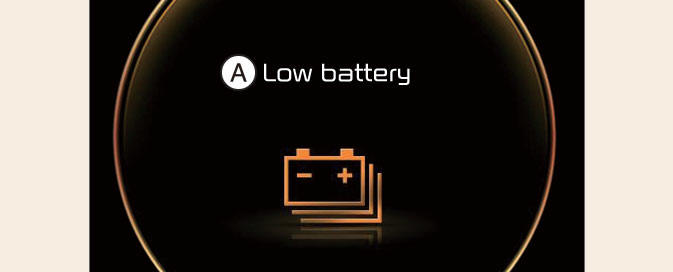

Low battery
A: Low battery
When the high voltage battery level reaches around 15% or less, this warning message is displayed.
The warning light on the instrument
cluster (
) will turn on
simultaneously.
Charge the battery immediately.

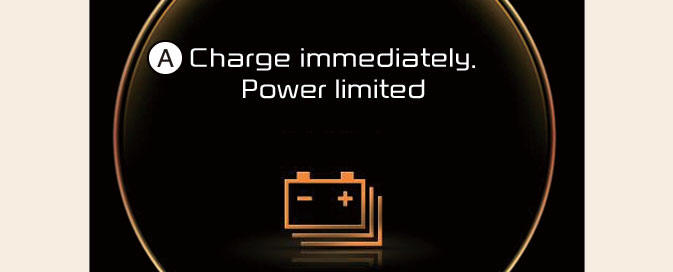

Charge immediately. Power limited
A: Charge immediately. Power limited
When the high voltage battery level reaches around 5% or less, this warning message is displayed.
The warning light on the instrument
cluster (
) and the power down
indicator
light (
) will turn on
simultaneously.
The vehicle's power will be reduced to minimize the energy consumption of the high voltage battery. Charge the battery immediately.

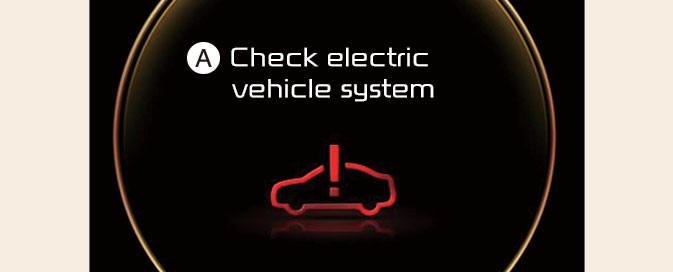

Check electric vehicle system
A: Check electric vehicle system
This warning message is displayed when there is a problem with the electric vehicle control system.
WARNING
Refrain from driving when the warning message is displayed.
If this occurs, park the vehicle in a safe location and we recommend that you tow your vehicle to the nearest authorized Kia dealer/service partner and have the vehicle inspected.
