KIA Niro: Fuel Delivery System
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Engine Control / Fuel System / Fuel Delivery System
Components
Location

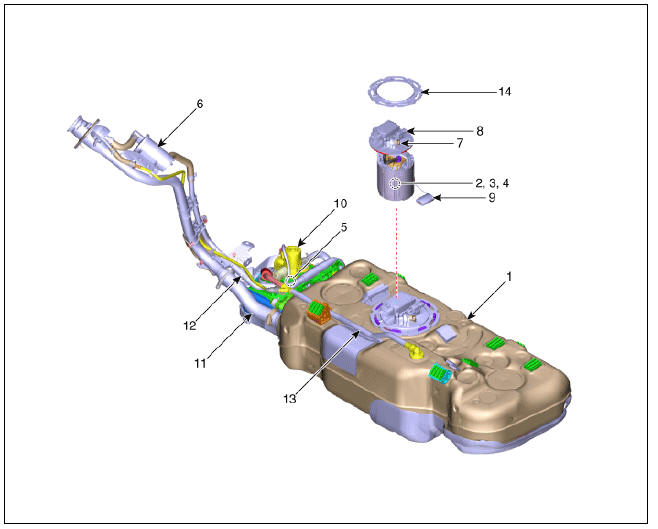

Fuel Tank Assembly
- Fuel tank
- Fuel pump
- Fuel filter
- Fuel pressure regulator
- Canister
- Fuel tank air Filter
- Fuel pressure sensor (FPS)
- Fuel tank pressure sensor (FTPS)
- Fuel level sensor (FLS)
- Fuel tank isolation valve (FTIV)
- Fuel Filler hose
- Vent hose
- Vapor tube
- Fuel pump plate cover

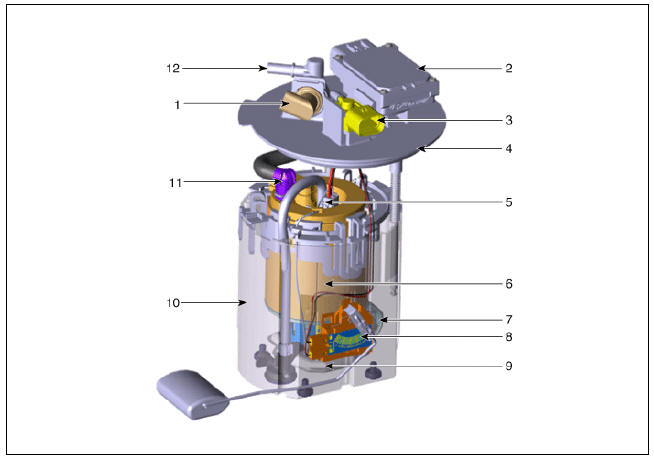

Fuel Pump Assembly
- Fuel Pressure Sensor (FPS)
- Fuel Pressure Control Module (FPCM)
- Fuel Tank Pressure Sensor (FTPS)
- Head Assembly
- Fuel Pump Motor
- Fuel Filter
- Fuel Pressure Regulator
- Fuel Sender
- Pre-filter
- Reservoir Cup
- Fuel Feed Tube
- Fuel Feed Tube Port

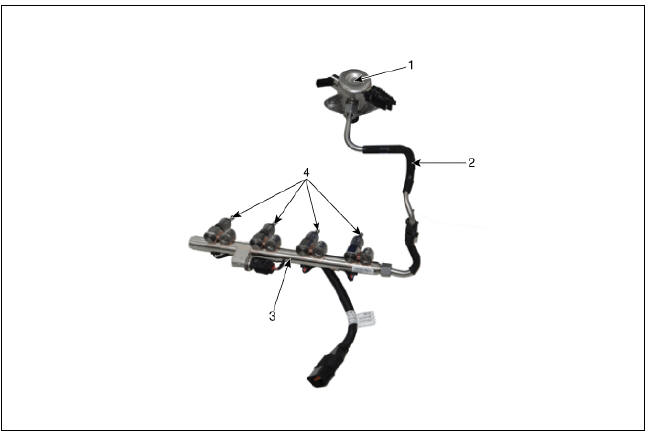

High Pressure Fuel Line
- High pressure fuel pump
- High pressure fuel pipe
- Delivery pipe
- Injector
Warning
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
- Fuel Pressure Test (Low pressuresystem)
- Release Residual Pressure in Fuel Line | Fuel Tank Repair procedures
- Fuel Pump Repair procedures
- Fuel Filter Repair procedures
- Fuel Pump Motor Repair procedures
- Fuel Sender Repair procedures
- Fuel Pressure Regulator Repair procedures | Fuel Line Repair procedures
- Filler-Neck Assembly Repair procedures | Fuel Pump Control Module (FPCM)
- Fuel Pressure Sensor (FPS)
- Delivery Pipe Repair procedures
- High Pressure Fuel Pump Repair procedures
READ NEXT:
Fuel Pressure Test (Low pressuresystem)
Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - Inspection - "Release Residual Pressure
in Fuel Line").
Warning
When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC)
may occur. De
Release Residual Pressure in Fuel Line | Fuel Tank Repair procedures
Warning
Whenever the high pressure fuel fuse, fuel pipe, delivery pipe, or injector is removed immediately after shutting off the engine, an injury may be caused by the release of highly pressurized fuel.
Release the residual pressure in the
