KIA Niro: Engine Control / Fuel System
Specifications

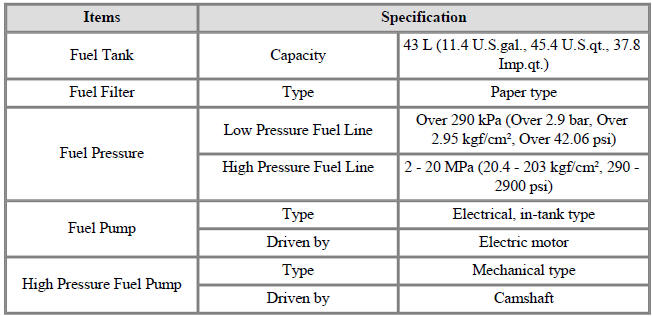

Fuel Delivery System
Sensors

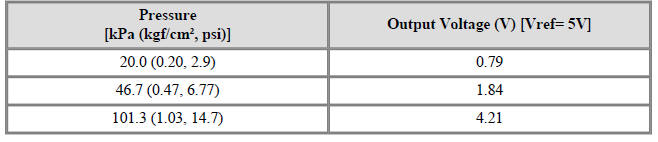

Manifold Absolute Pressure Sensor (MAPS)
- Type: Piezo-resistive pressure sensor type
- Specification

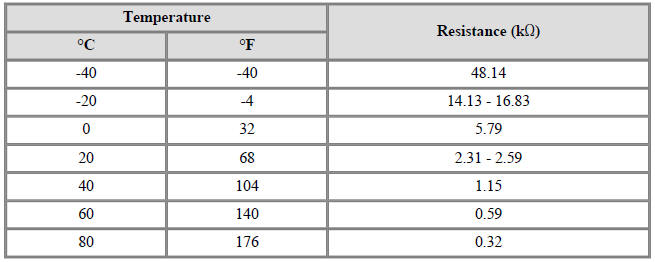

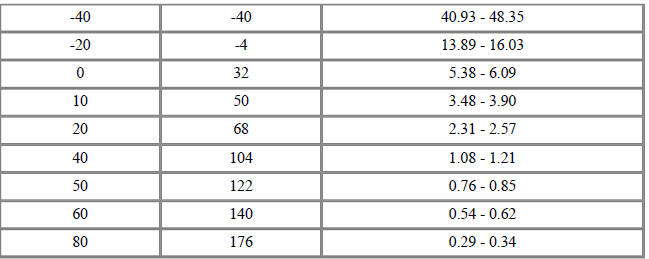

Intake Air Temperature Sensor (IATS)
- Type: Thermistor type
- Specification
Engine Coolant Temperature Sensor (ECTS)
- Type: Thermistor type
- Specification

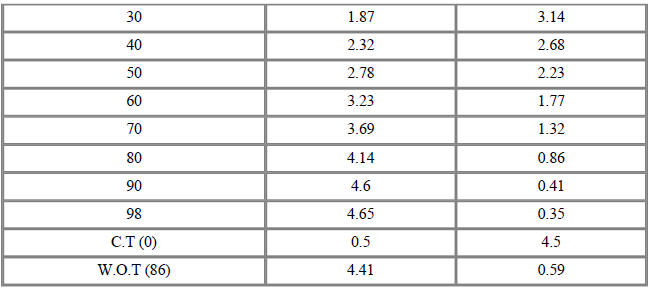

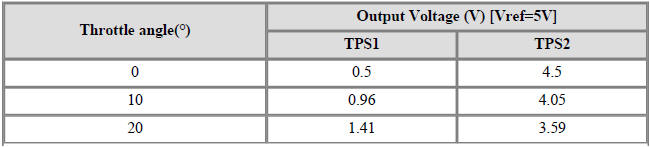

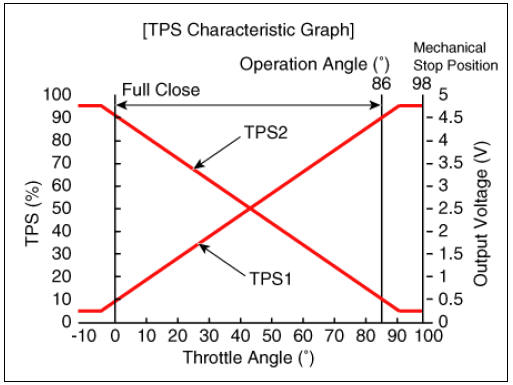

Throttle Position Sensor (TPS) (integrated into ETC module)
- Type: Hall IC Non-contact sensor type
- Specification
Crankshaft Position Sensor (CKPS)
- Type: Hall effect type
Camshaft Position Sensor (CMPS)
- Type: Hall effect type
Knock Sensor (KS)
- Type: Piezo-electricity type
- Specification
Heated Oxygen Sensor (HO2S) (Bank 1/Sensor 1)
- Type: Zirconia (ZrO2) (Linear) type
- Specification
Heated Oxygen Sensor (HO2S) (Bank 1/Sensor 2)
- Type: Zirconia (ZrO2) (Binary) type
- Specification

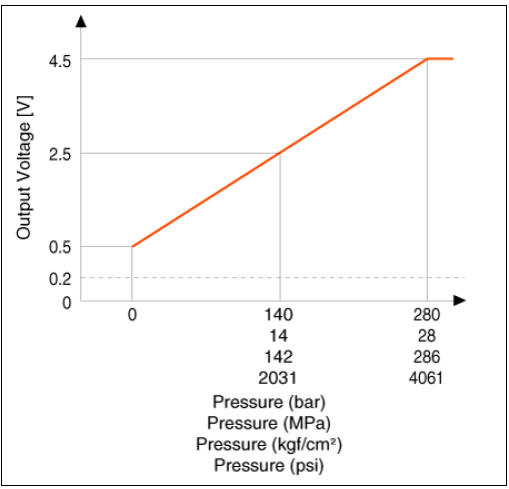

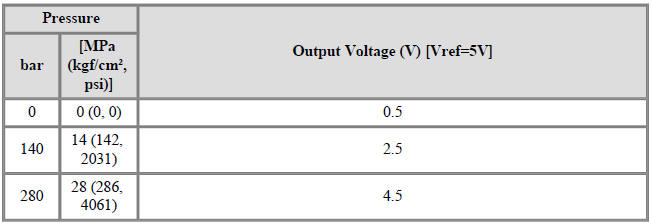

Rail Pressure Sensor (RPS)
- Type: Piezo-electricity type
- Specification

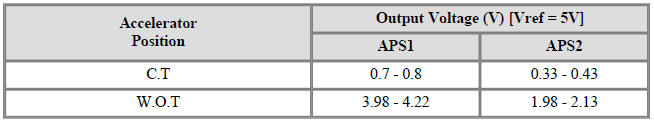

Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification
Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification
Fuel Tank Pressure Sensor (FTPS)
- Type : Piezo - Resistivity type
- Specification
Actuators
Injector
- Specification
ETC Motor (integrated into ETC Module)
- Specification

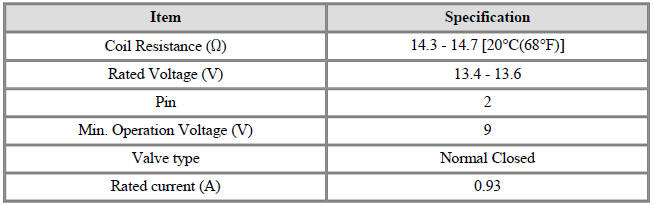

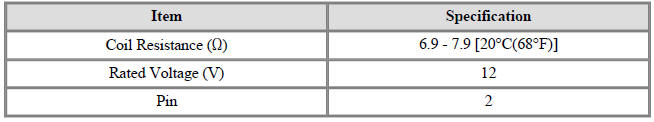

Purge Control Solenoid Valve (PCSV)
- Specification
CVVT Oil Control Valve (OCV) (Bank 1 / Exhaust)
- Specification

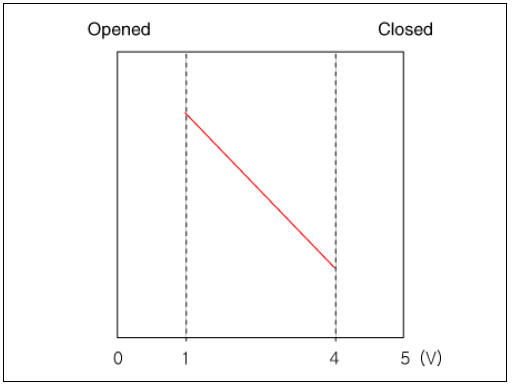

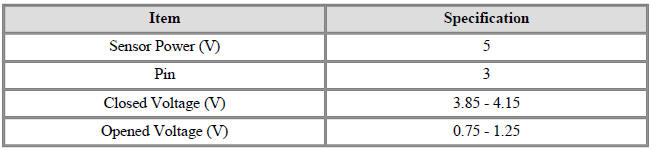

Electric EGR Control Valve
- Type: Motor / Position senso
- Specification
Motor
Position sensor
Fuel Pressure Control Valve (FPCV)
- Specification

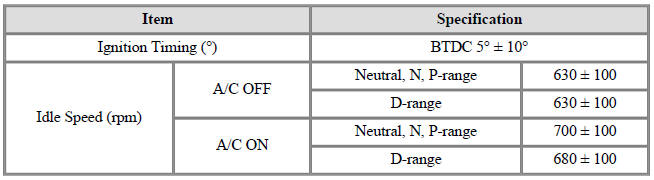

Service Standard

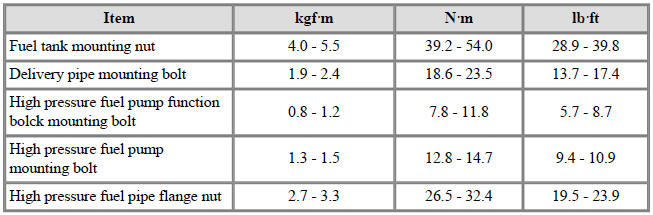

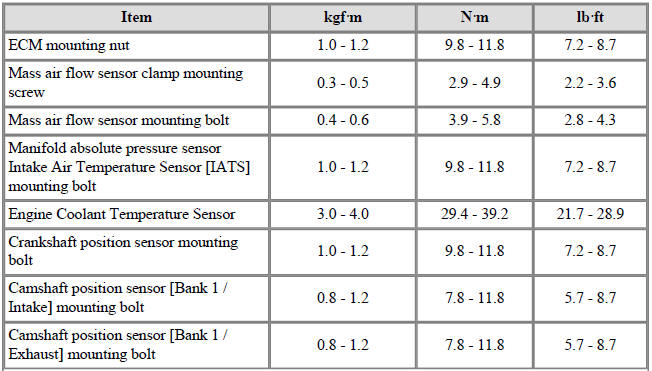

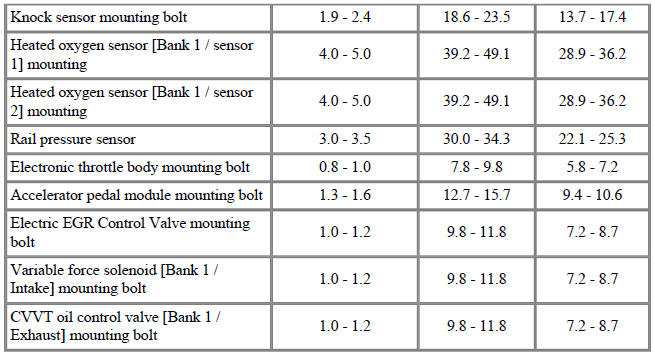

Tightening Torques
Engine Control System
Fuel Delivery System

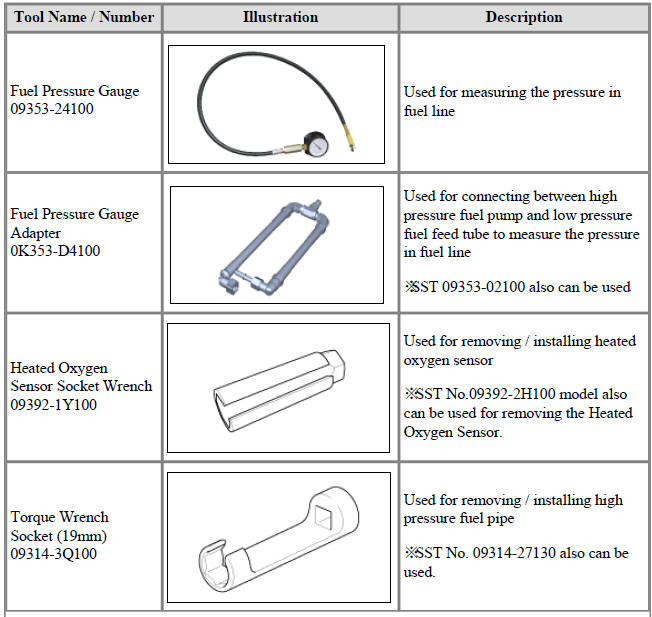

Special Service Tools
Tool Name / Number /Illustration/ Description
Fuel Pressure Gauge
09353-24100/
/Used
for measuring the pressure in
fuel line
Fuel Pressure Gauge
Adapter
0K353-D4100/
/Used
for connecting between high
pressure fuel pump and low pressure
fuel feed tube to measure the pressure
in fuel line
※SST 09353-02100 also can be used
Heated Oxygen
Sensor Socket Wrench
09392-1Y100/
/Used
for removing / installing heated
oxygen sensor
※ SST No.09392-2H100 model also
can be used for removing the Heated
Oxygen Sensor
Torque Wrench
Socket (19mm)
09314-3Q100/
/Used
for removing / installing high
pressure fuel pipe
※ SST No. 09314-27130 also can be
used.

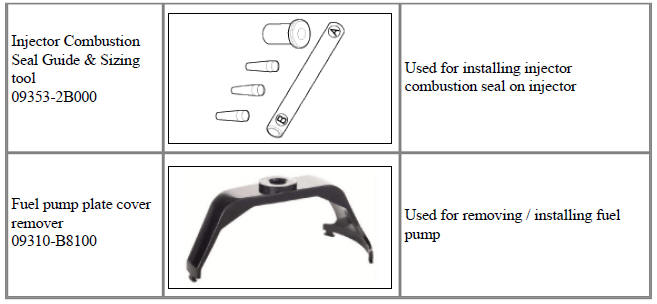

Injector Combustion
Seal Guide & Sizing
tool
09353-2B000/
/Used for installing
injector
combustion seal on injector
Fuel pump plate cover
remover
09310-B8100/
/ Used for removing /
installing fuel
pump
