KIA Niro: Crankshaft Position Sensor (CKPS)

Specification

Crankshaft Position Sensor (CKPS) Description and operation

Crankshaft Position Sensor (CKPS) Description and operation

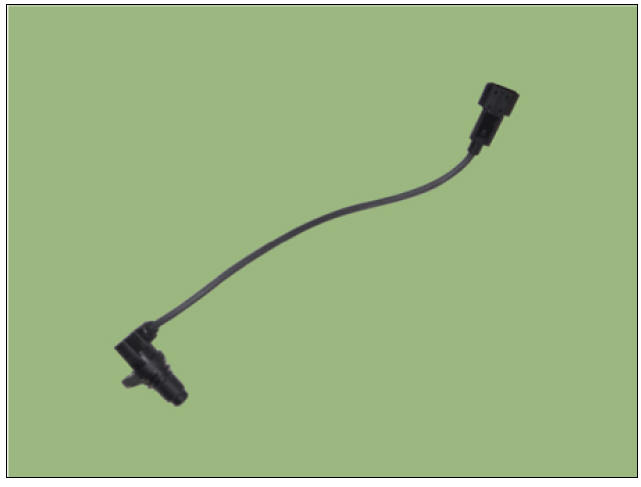

Description

Crankshaft Position Sensor (CKPS) is one of the most important sensors of the engine control system
that detects the crankshaft position. Lack of CKPS signal may cause the engine to stop.

This sensor is installed in ladder frame and generates alternating current by magnetic flux field which is made by the sensor and the target wheel when the engine rotates. The target wheel consists of 58
slots and 2 missing slots on 360 CA (Crank Angle).

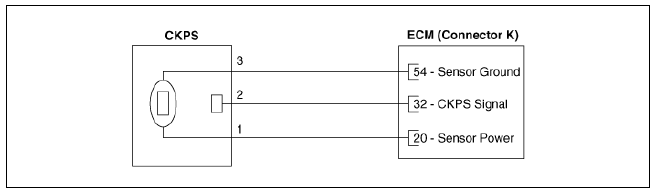

Circuit Diagram

Circuit Diagram

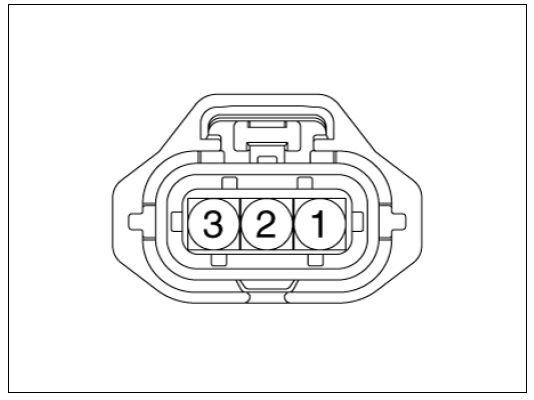

Harness Connector

Harness Connector

Crankshaft Position Sensor (CKPS) Repair procedures

Crankshaft Position Sensor (CKPS) Repair procedures

Inspection

  1. Check signal waveform of CKPS and CMPS using a KDS.

Specification: Refer to "Waveform"

Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "Air Cleaner")

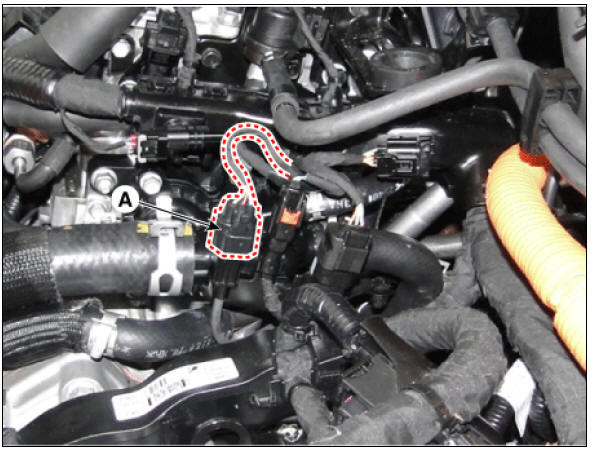

  3. Disconnect the crankshaft position sensor connector (A).

  1. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "Engine Room Under Cover")

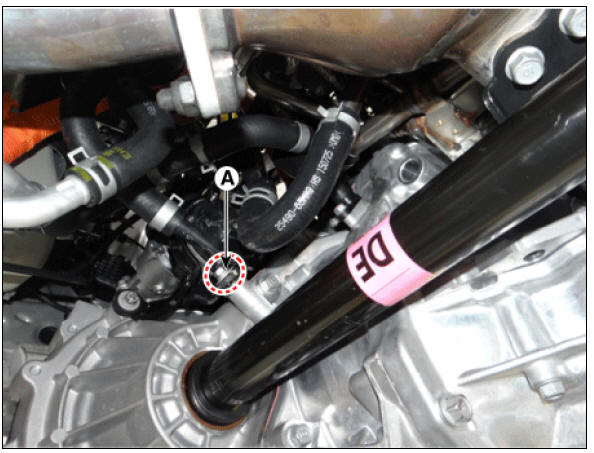

  2. Remove the crankshaft position sensor after loosening the mounting bolt (A).

Crankshaft position sensor mounting bolt : 9.8 - 11.8 N*m (1.0 - 1.2 kgf*m, 7.2 - 8.7 lb*ft)

Installation

Installation

Warning

  • Install the component to the specified torque.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • Apply engine oil to the O-ring.
  • Insert the sensor in the installation hole and be careful not to damage it.
  1. Install in the reverse order of removal.

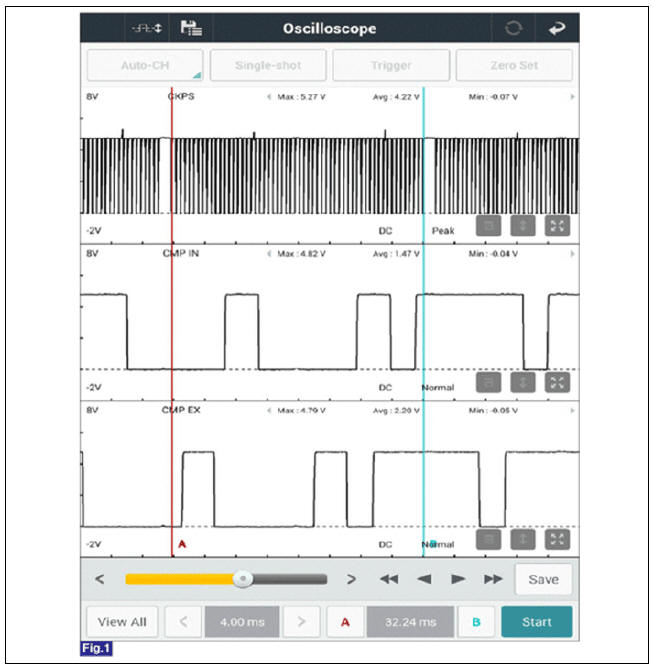

Signal Waveform

Fig.1) Normal signal waveform of CKPS and CMPS-In/Ex at Engine idle.БЮ Fig.1) Normal signal waveform of CKPS and CMPS-In/Ex at Engine idle.
