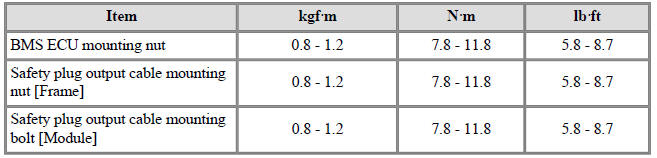

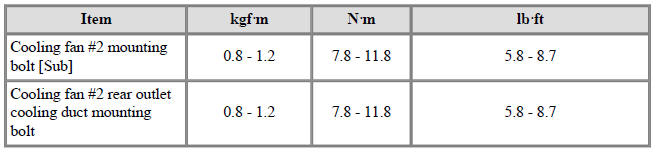

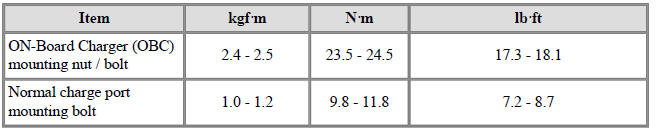

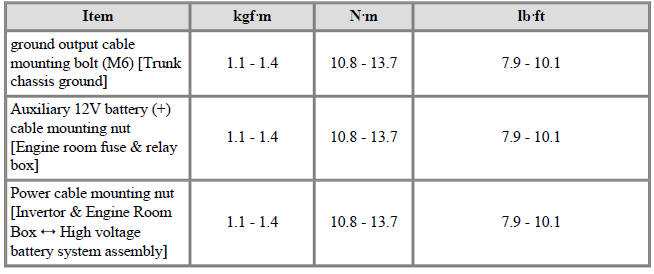

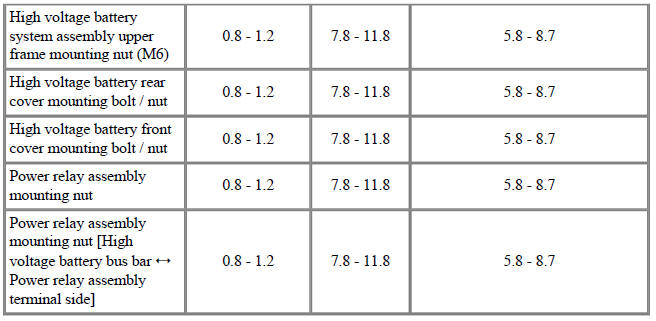

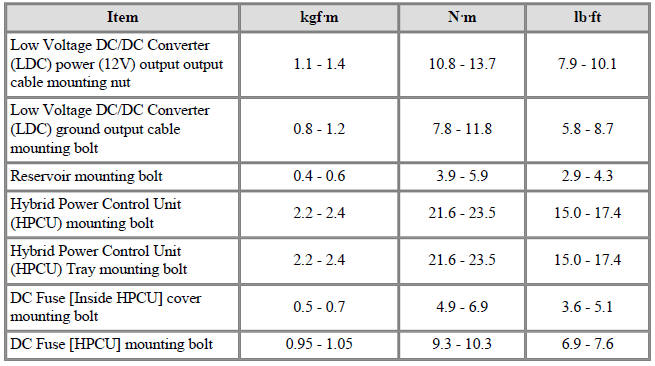

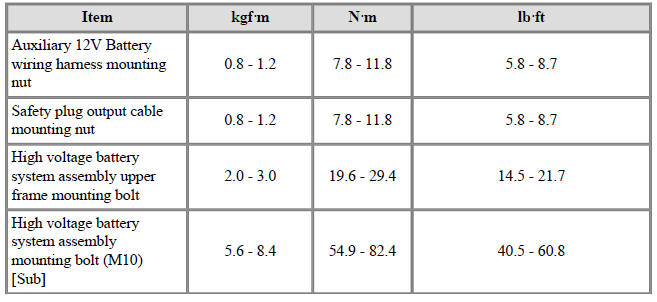

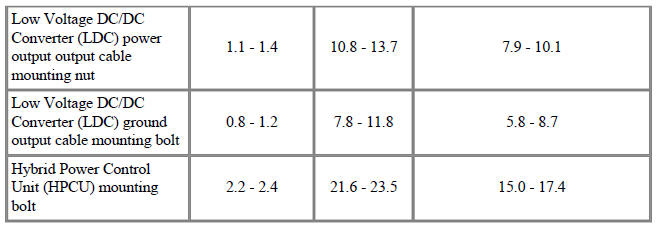

KIA Niro: Hybrid Control System - Tightening Torques
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Hybrid Control System / Hybrid Control System - Tightening Torques
Hybrid Control System

High Voltage Battery System


High Voltage Battery Control System

High Voltage Battery Cooling System

Low Voltage DC/DC Converter (LDC)


High Voltage Battery Charging System

Power Cable

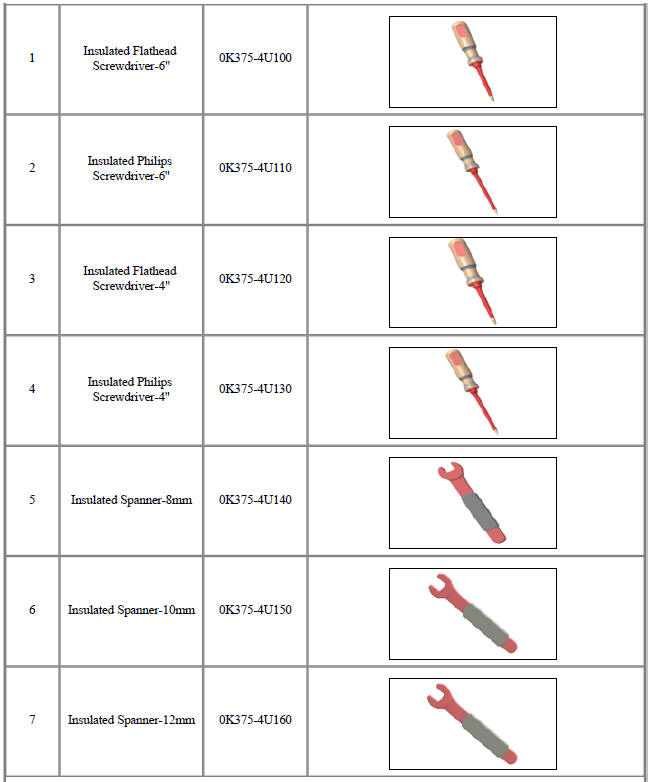

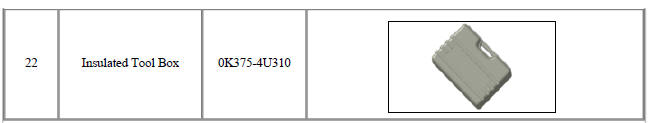

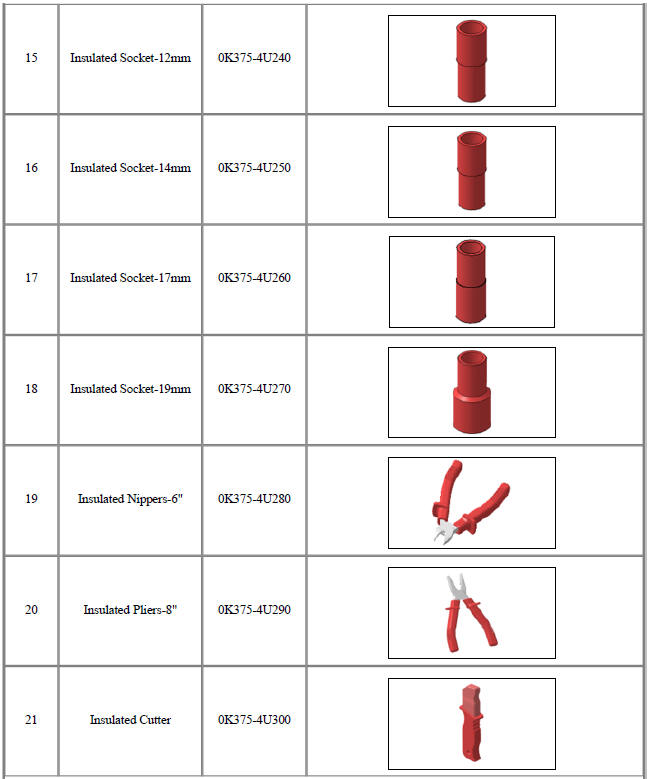

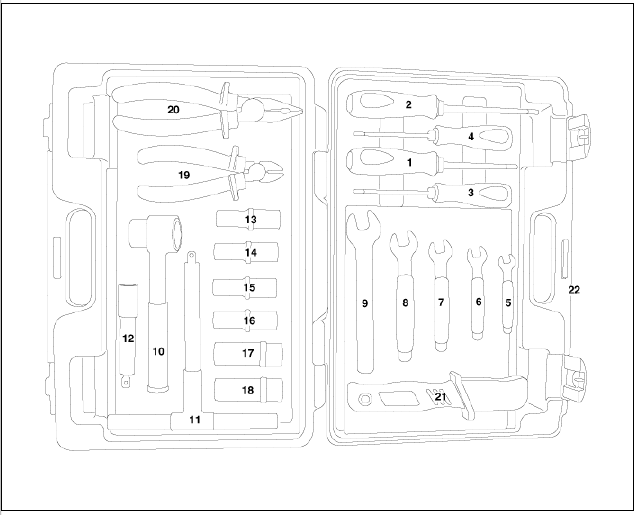

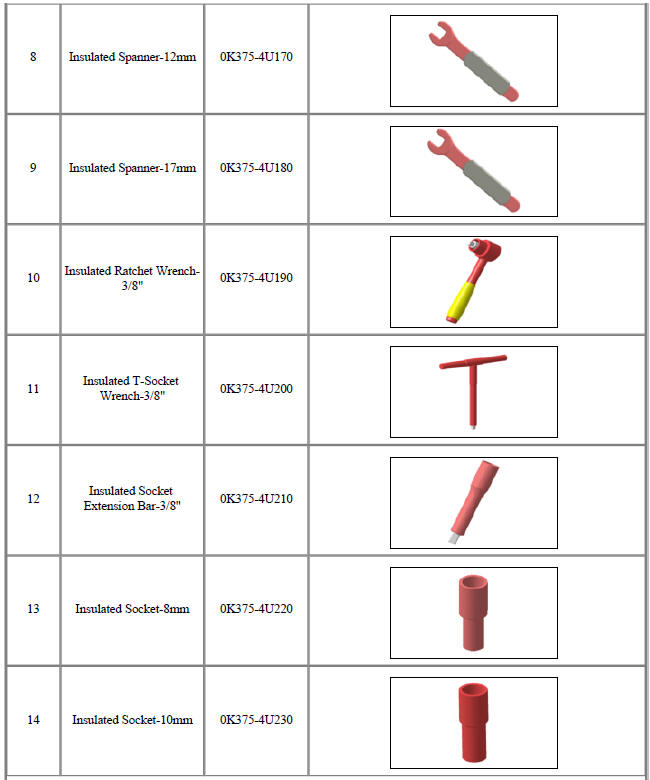

Special Service Tools





READ NEXT:
Hybrid Control System / Description And Operation
The Hybrid Electric Vehicle (HEV) uses hybrid power source (Engine, Electric
motor), so its fuel efficiency is relatively
high and exhaust emission is very small compared to the traditional vehicle
which uses only engine as power source. It
con
Hybrid Control System / Components And Components Location
HPCU (Hybrid Power Control Unit)
On-Board Charger (OBC)
Charge Port
Power Cable (HPCU↔HSG,Electronic A/C
Compressor)
Power Cable (HPCU↔Main High Voltage Battery System)
Power Cable (Main High Voltage Battery System â
