KIA Niro: Fuel Pressure Control Valve (FPCV)

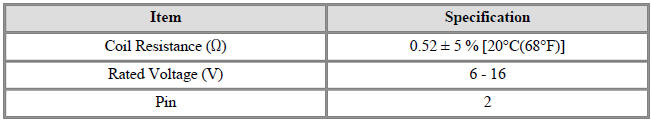

Specification

Fuel Pressure Control Valve (FPCV) Description

Fuel Pressure Control Valve (FPCV) Description

Description

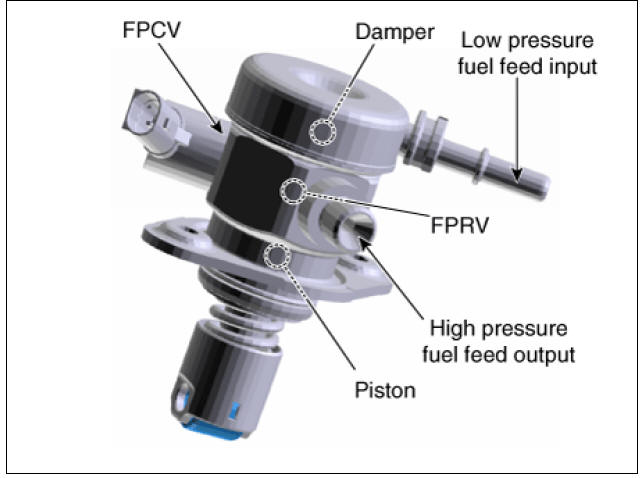

Installed on the high pressure fuel pump, the Fuel Pressure Control Valve controls the flow of fuel into the injectors in accordance with the ECM signal calculated based on various engine conditions.

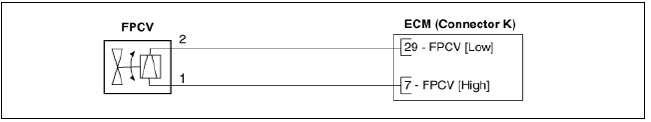

Circuit Diagram

Circuit Diagram

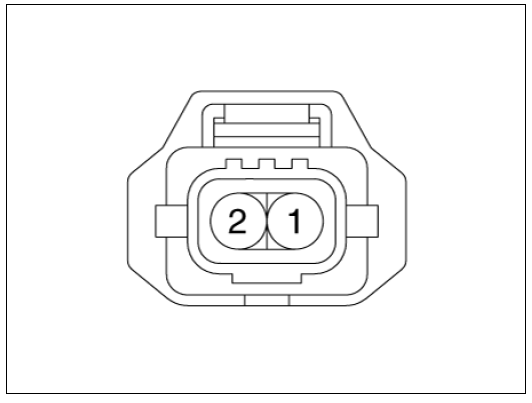

Harness Connector

Harness Connector

Fuel Pressure Control Valve (FPCV) Repair procedures

Fuel Pressure Control Valve (FPCV) Repair procedures

Inspection

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the fuel pressure regulator valve connector.
  3. Measure resistance between the fuel pressure regulator valve terminals 1 and 2.
  4. Check that the resistance is within the specification.

Specification: 0.52 +- 5 % Ω (20ºC(68ºF)

Removal

Warning

The fuel pressure regulator valve cannot be replaced as a unit. Replace it as high pressure fuel pump assembly.

(Refer to Fuel Delivery System - "High Pressure Fuel Pump".)

Installation

Warning

The fuel pressure regulator valve cannot be replaced as a unit. Replace it as high pressure fuel pump assembly.

(Refer to Fuel Delivery System - "High Pressure Fuel Pump".)

Signal Waveform

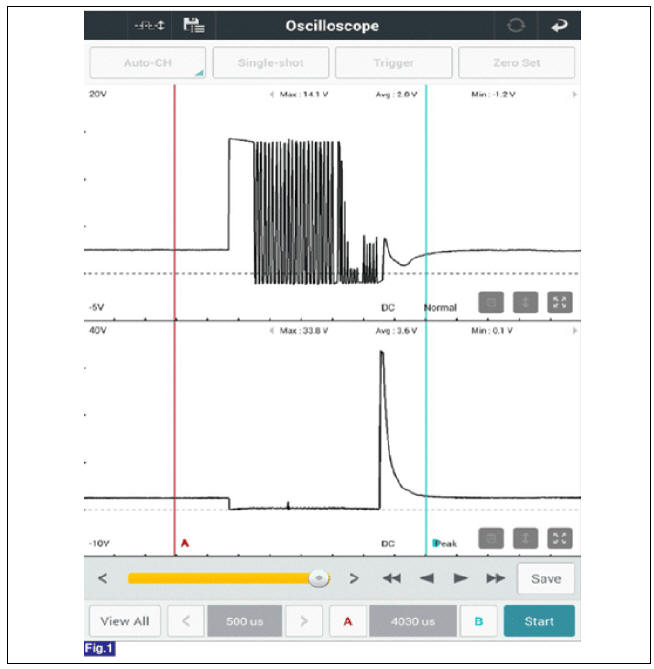

Fig.1) Nomal signal waveform of fuel pressure control valve at engine idle. Fig.1) Nomal signal waveform of fuel pressure control valve at engine idle.
