KIA Niro: Service Data

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Engine Electrical System / Service Data

Ignition System

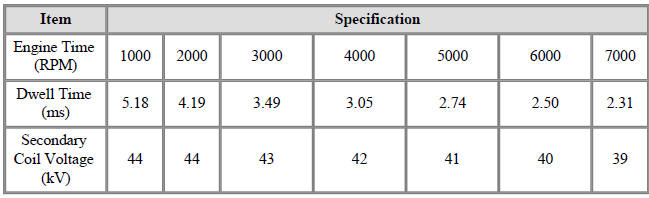

Ignition Coil

Spark Plug

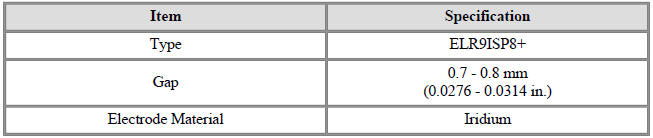

Spark Plug

Charging System

Charging System

Battery

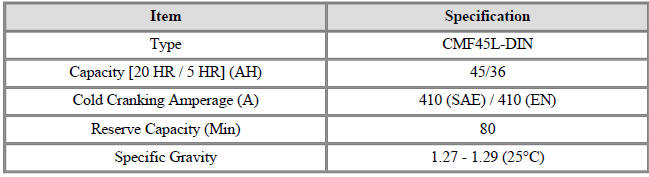

CMF45L-DIN

Warning

Warning

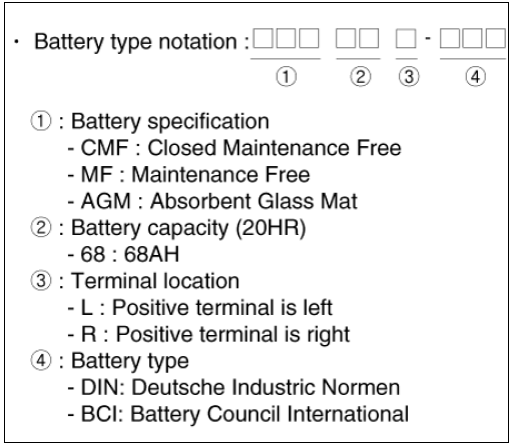

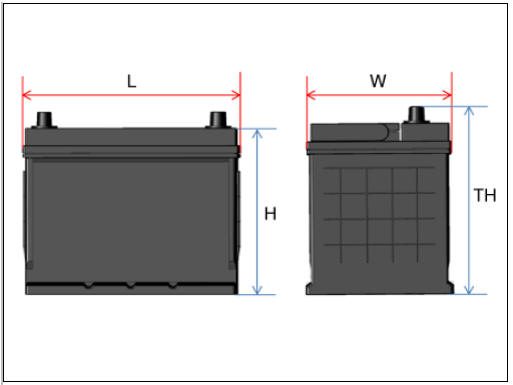

Model type description
Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

The rating is the number of amps a new, fully charged battery can deliver at -18ºC(-0.4ºF) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
The higher the CCA rating, the greater the starting power of the battery.

RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a
battery's ability to power a vehicle with an inoperative alternator or fan belt.

The rating is the number of minutes a battery at 26.7 ºC(80 ºF) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

Warning

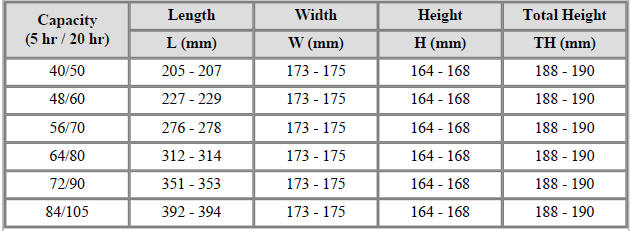

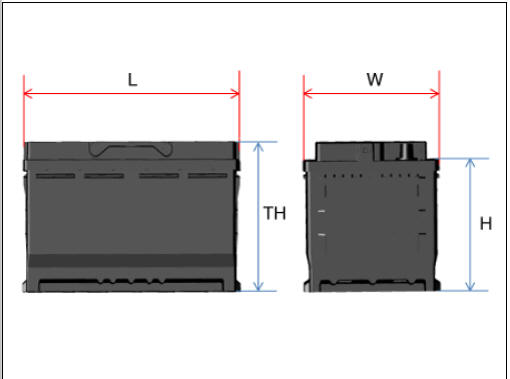

BCI Type

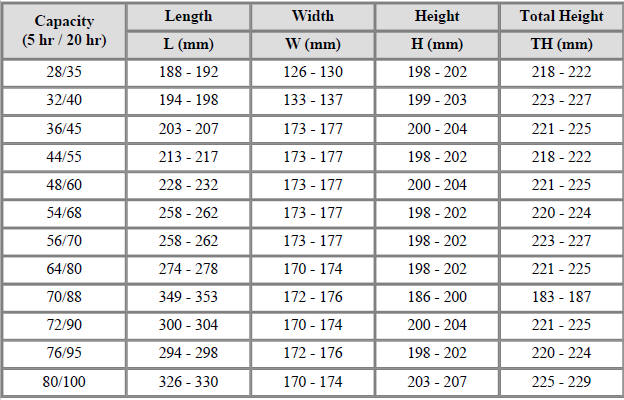

DIN Type

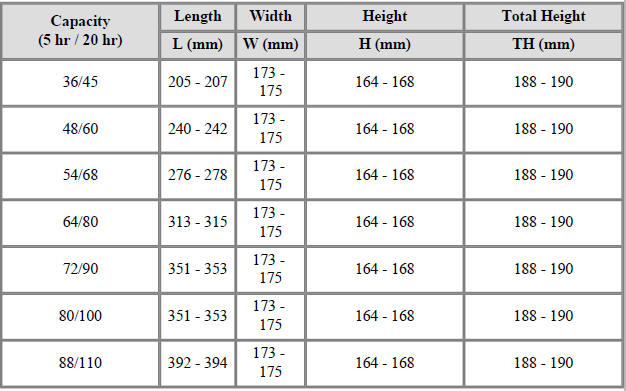

AGM DIN Type

Battery Sensor

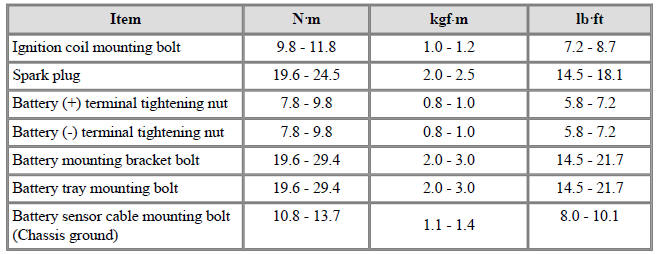

Tightening Torques

Tightening Torques

Engine Electrical System - Troubleshooting

Trouble Shooting Ignition System Symptom: Vehicle indicates Ready in dash, but engine will not run when requested by the HPCU (HEV module). Suspect area → Remedy Ignition coil → Inspect ignition coil, or replace as require

On-vehicle Inspection

Warning Check that the auxiliary 12V battery cables are connected to the correct terminals. Disconnect the auxiliary 12V battery cables when the battery is given a quick charge. Never disconnect the auxiliary 12V battery while the engin

Battery Voltage and Status
