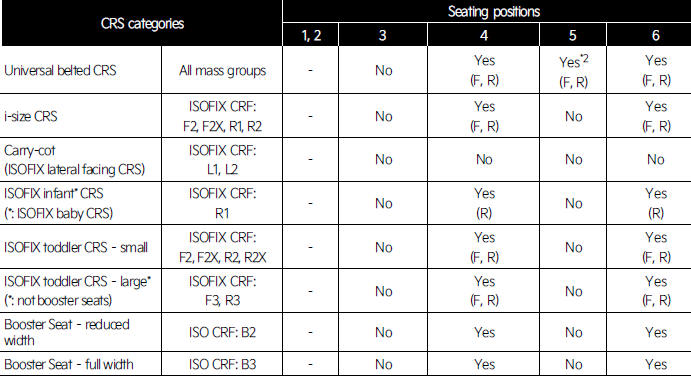

KIA Niro: Suitability of each seating position for belted & ISOFIX Child Restraint Systems according to UN regulations for Latin America (Information for use by vehicle users and CRS manufacturers)
- Yes: Suitable for fitment of the designated category of CRS
- No: Not suitable for fitment of the designated category of CRS
- "-": Not applicable

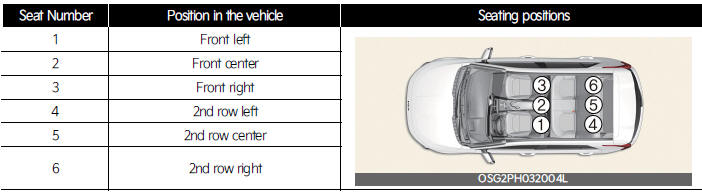

- The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle.
For RHD vehicle front passenger seat, please use information for the seating position number 3.
F: Forward facing
R: Rearward facing
* 1. To install Universal CRS, 1st row passenger seat should be adjusted appropriate position which do not interfere stable installation (adjust to possible height or upright position).
* 2. Never install CRS with a support leg on 2nd row center seating position.
* If the head restraints prevent proper installation of a CRS, the head restraints of the seating position shall be readjusted or entirely removed.
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
Recommended CRS for Vehicle in Latin America according to UN regulations (Information for use by vehicle users and CRS manufacturers)
CRS Manufacturer information (for Latin America)

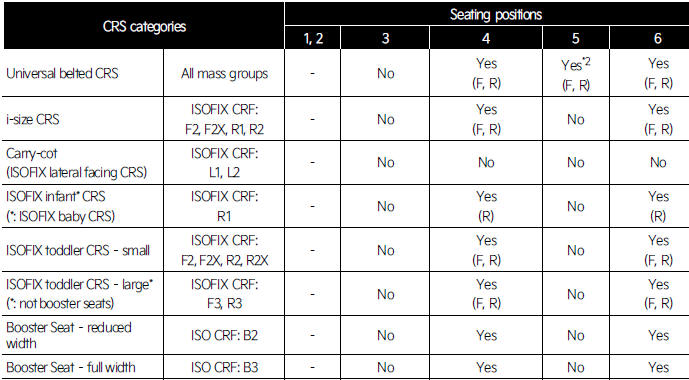

Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations for Australia (Information for use by vehicle users and CRS manufacturers)
- Yes : Suitable for fitment of the designated category of CRS
- No : Not suitable for fitment of the designated category of CRS
- "-": Not applicable

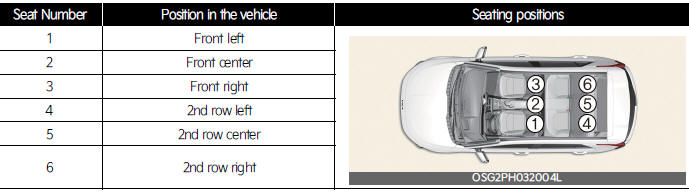

- The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle.
For RHD vehicle front passenger seat, please use information for the seating position number 3.
F: Forward facing
R: Rearward facing
* 1. To install Universal CRS, 1st row passenger seat should be adjusted appropriate position which do not interfere stable installation (adjust to possible height or upright position)
* 2. Never install CRS with a support leg on 2nd row center seating position
* If the head restraints prevent proper installation of a CRS, the head restraints of the seating position shall be readjusted or entirely removed.
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
