KIA Niro: Cell Monitoring Unit (CMU) Terminal And Input/Output Signal

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Hybrid Control System / Cell Monitoring Unit (CMU) Terminal And Input/Output Signal

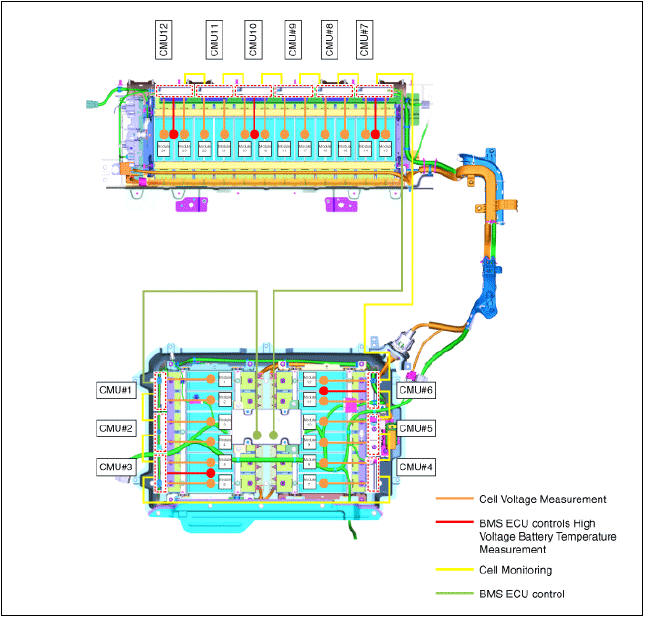

System Configuration

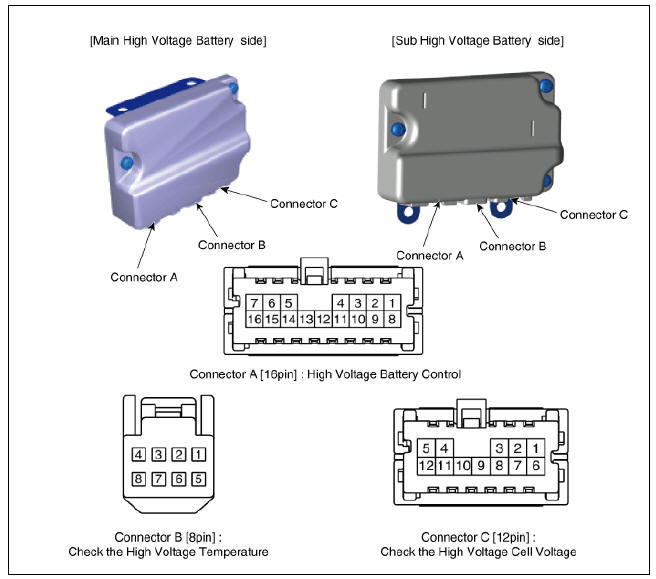

Connector Type

Connector Type

Terminal Function

Terminal Function

Cell Monitoring Unit (CMU) #1 (Sub Voltage Battery Pack Assembly)

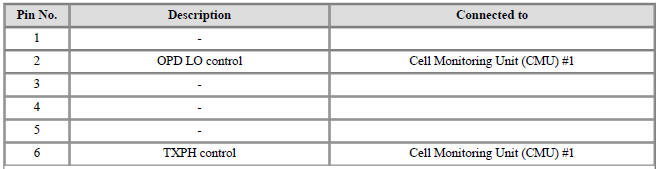

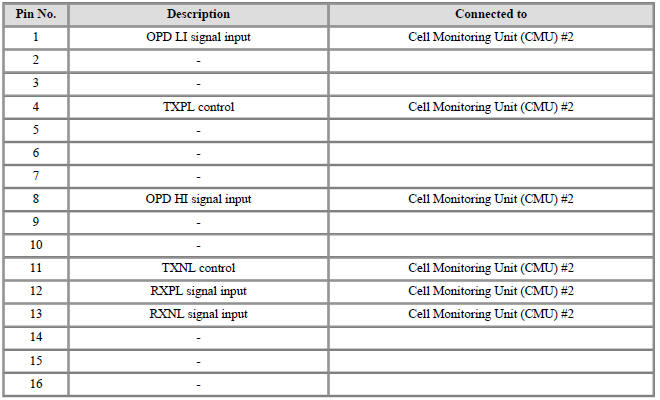

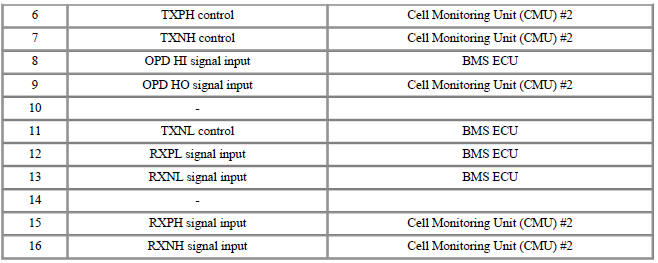

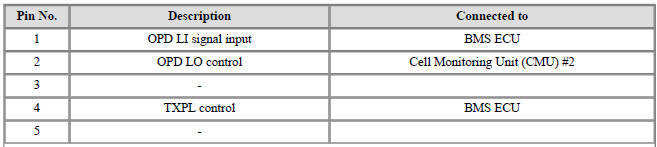

Connector (B01-A) (16Pin) : High Voltage Battery control

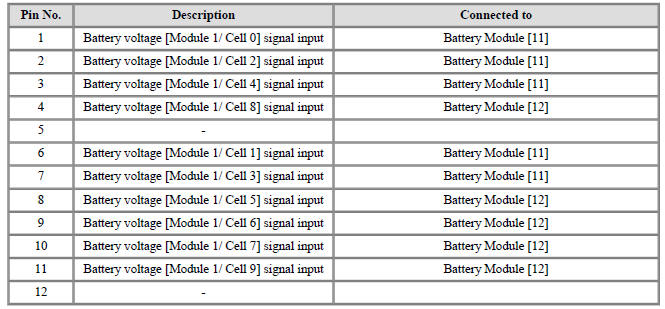

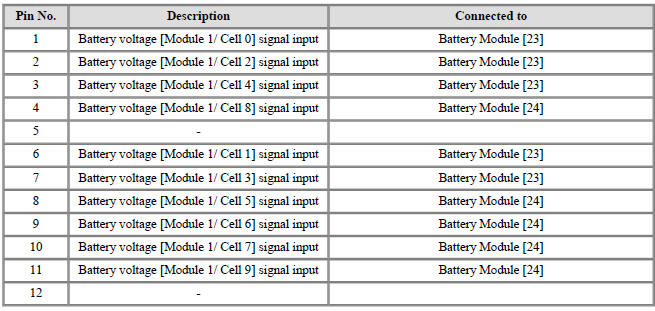

Connector (B01-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B01-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #2 (Sub High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #2 (Sub High Voltage Battery Pack Assembly)

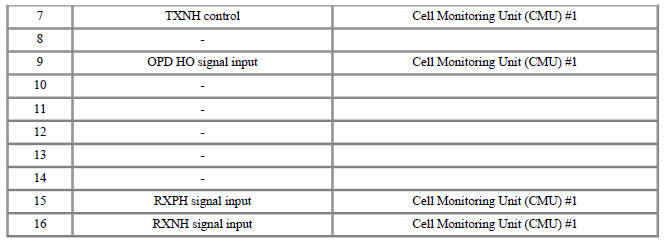

Connector (B02-A) (16Pin) : High Voltage Battery control

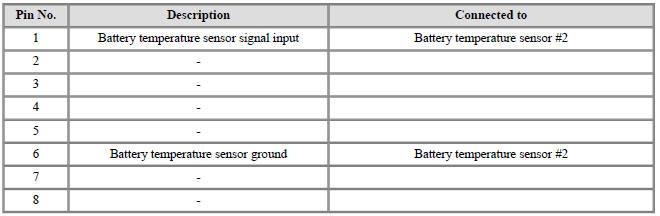

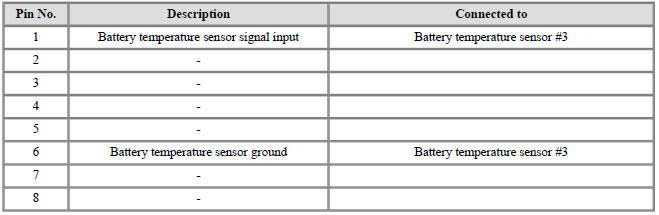

Connector (B02-B) (8Pin) : High Voltage Temperature

Connector (B02-B) (8Pin) : High Voltage Temperature

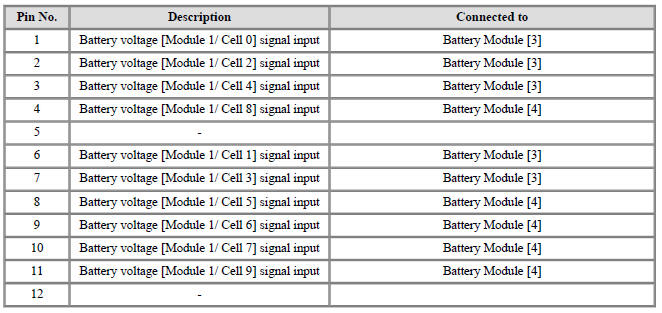

Connector (B02-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B02-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #3 (Sub High Voltage Pack Assembly)

Cell Monitoring Unit (CMU) #3 (Sub High Voltage Pack Assembly)

Connector (B03-A) (16pin) : High Voltage control

Connector (B03-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B03-B) (8Pin) : High Voltage Battery Temperature Check

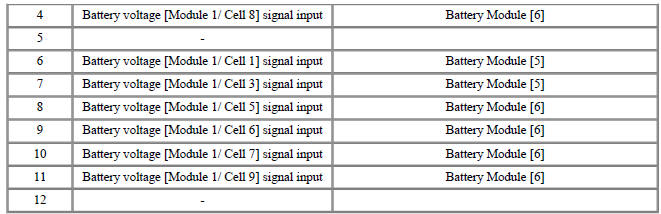

Connector (B03-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B03-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #4 (Sub High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #4 (Sub High Voltage Battery Pack Assembly)

Connector (B04-A) (16Pin) : High Voltage Battery control

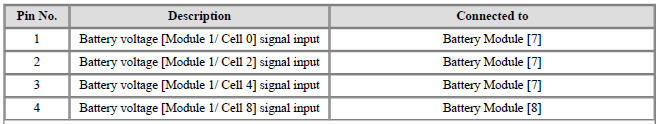

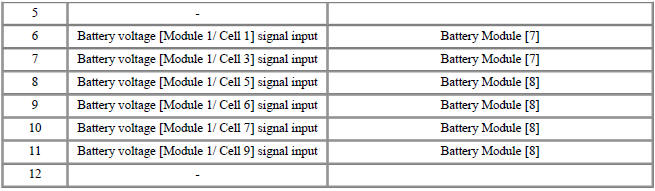

Connector (B04-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B04-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #5 (Sub High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #5 (Sub High Voltage Battery Pack Assembly)

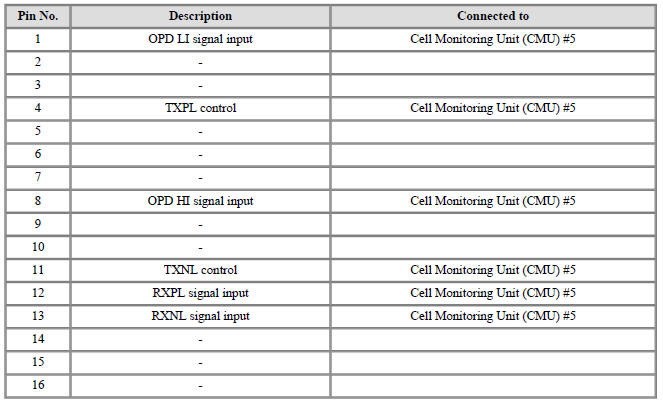

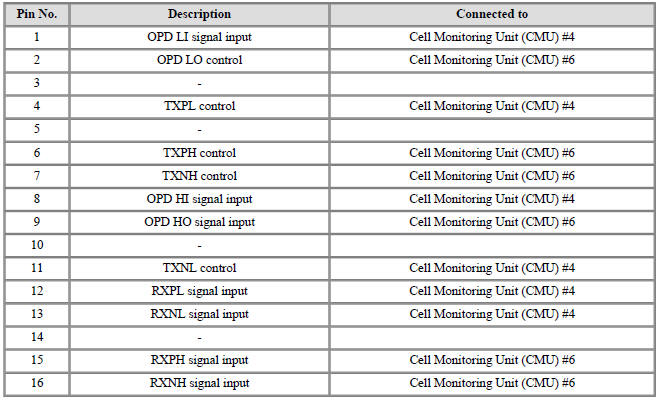

Connector (B05-A) (16Pin) : High Voltage Battery control

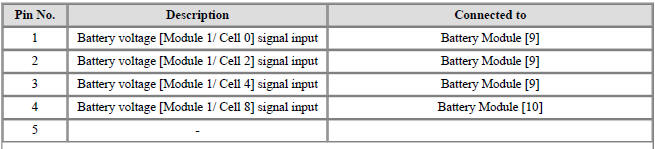

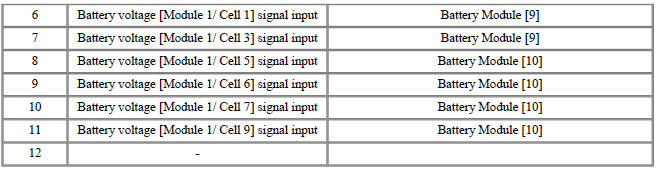

Connector (B05-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B05-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #6 (Sub High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #6 (Sub High Voltage Battery Pack Assembly)

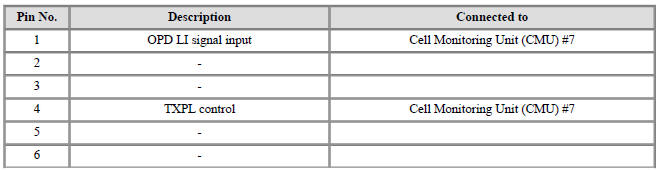

Connector (B06-A) (16Pin) : High Voltage Battery control

Connector (B06-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B06-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B06-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B06-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #7 (Main High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #7 (Main High Voltage Battery Pack Assembly)

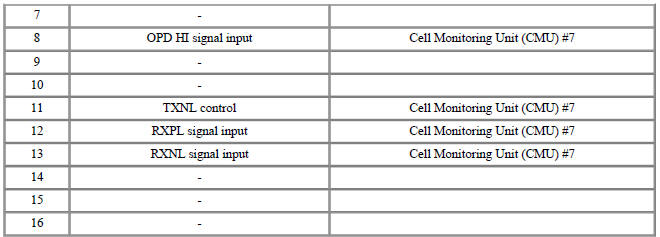

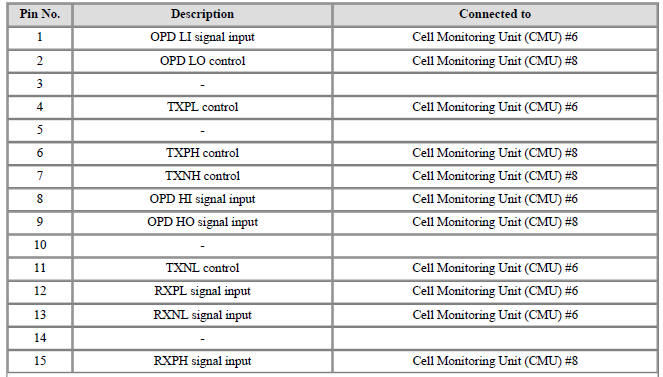

Connector (B07-A) (16Pin) : High Voltage Battery control

Connector (B07-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B07-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B07-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B07-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #8 (Main High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #8 (Main High Voltage Battery Pack Assembly)

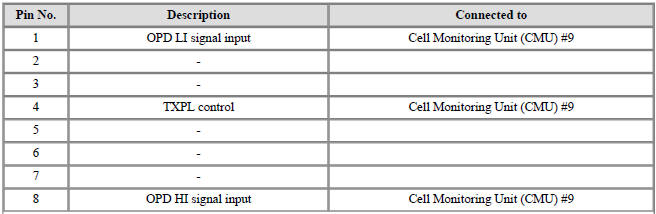

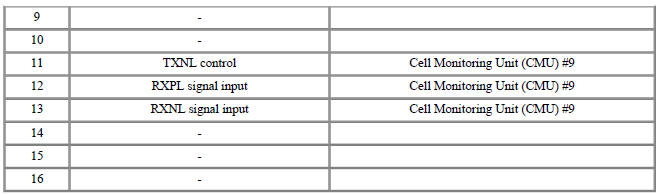

Connector (B08-A) (16Pin) : High Voltage Battery control

Connector (B08-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B08-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #9 (Main High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #9 (Main High Voltage Battery Pack Assembly)

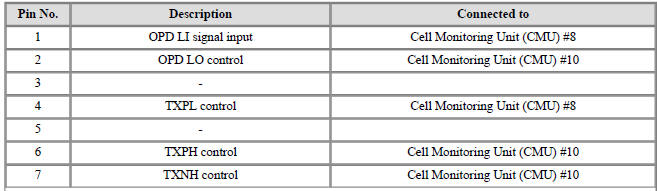

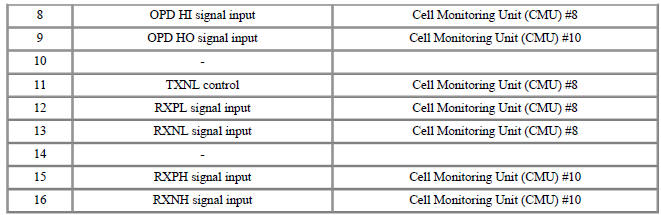

Connector (B09-A) (16Pin) : High Voltage Battery control

Connector (B09-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B09-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #10 (Main High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #10 (Main High Voltage Battery Pack Assembly)

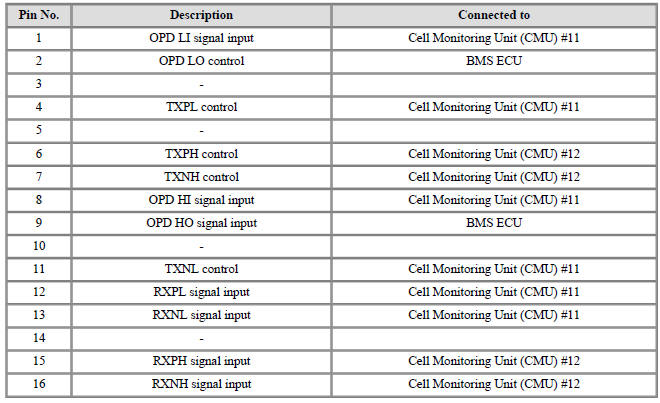

Connector (B10-A) (16Pin) : High Voltage Battery control

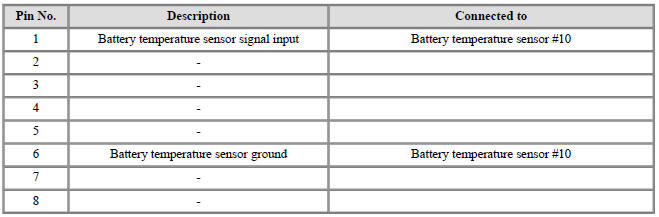

Connector (B10-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B10-B) (8Pin) : High Voltage Battery Temperature Check

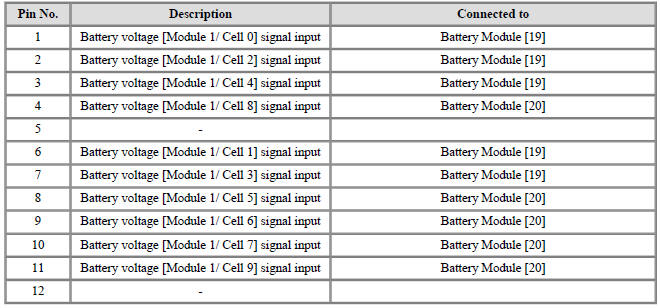

Connector (B10-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B10-C) (12Pin) : High Voltage Battery Cell Voltage Check

Cell Monitoring Unit (CMU) #11 (Main High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #11 (Main High Voltage Battery Pack Assembly)

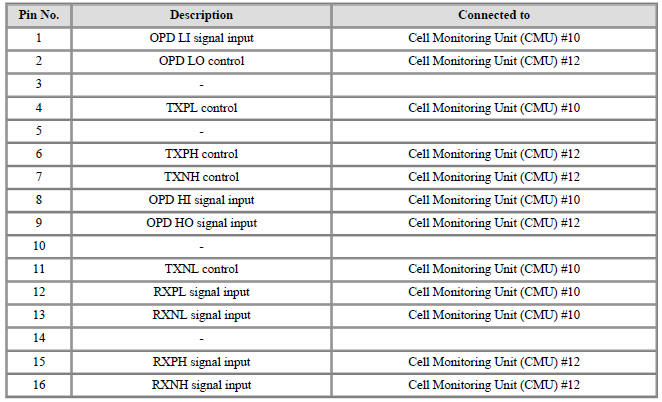

Connector (B11-A) (16Pin) : High Voltage Battery control

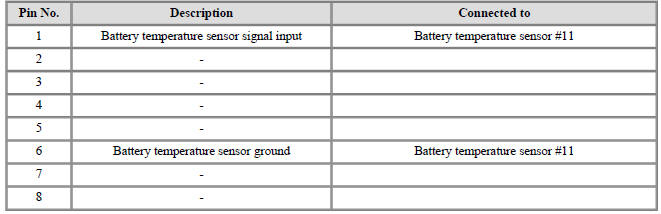

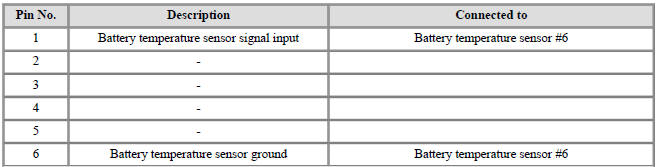

Connector (B11-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B11-B) (8Pin) : High Voltage Battery Temperature Check

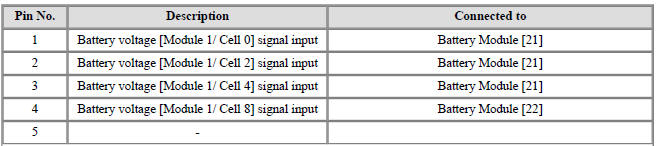

Connector (B11-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B11-C) (12Pin) : High Voltage Battery Cell Voltage Check

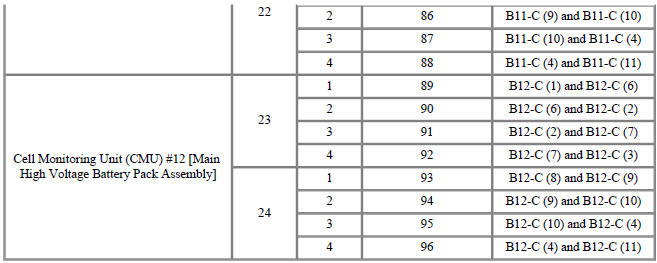

Cell Monitoring Unit (CMU) #12 (Main High Voltage Battery Pack Assembly)

Cell Monitoring Unit (CMU) #12 (Main High Voltage Battery Pack Assembly)

Connector (B12-A) (16Pin) : High Voltage Battery control

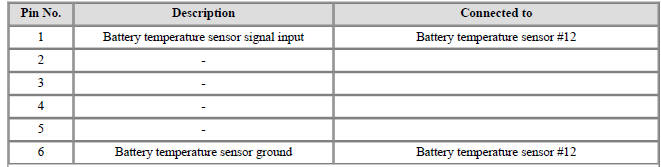

Connector (B12-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B12-B) (8Pin) : High Voltage Battery Temperature Check

Connector (B12-C) (12Pin) : High Voltage Battery Cell Voltage Check

Connector (B12-C) (12Pin) : High Voltage Battery Cell Voltage Check

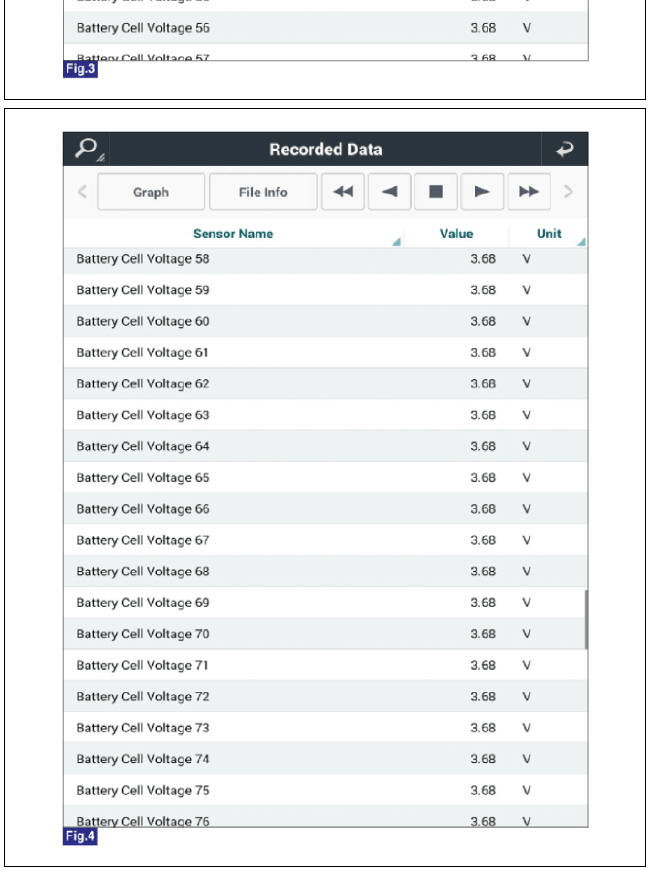

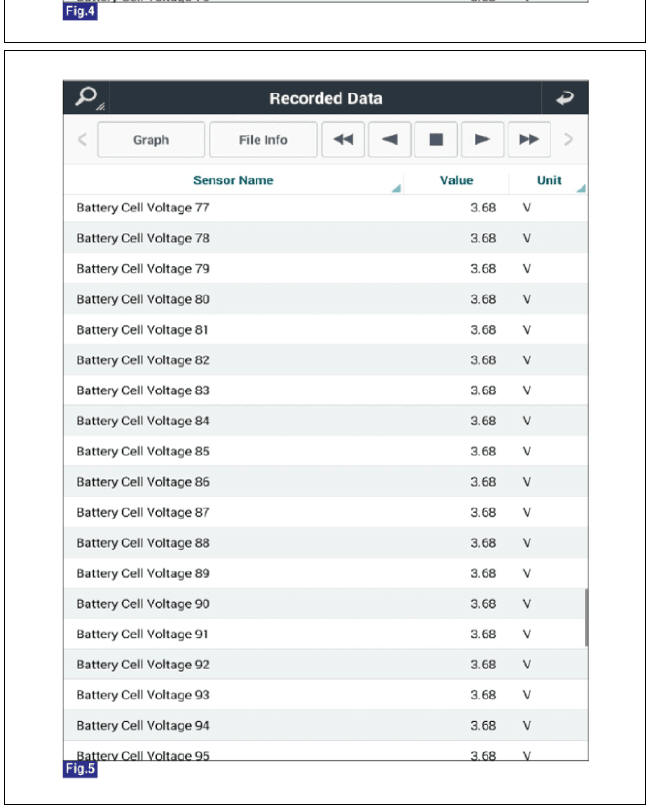

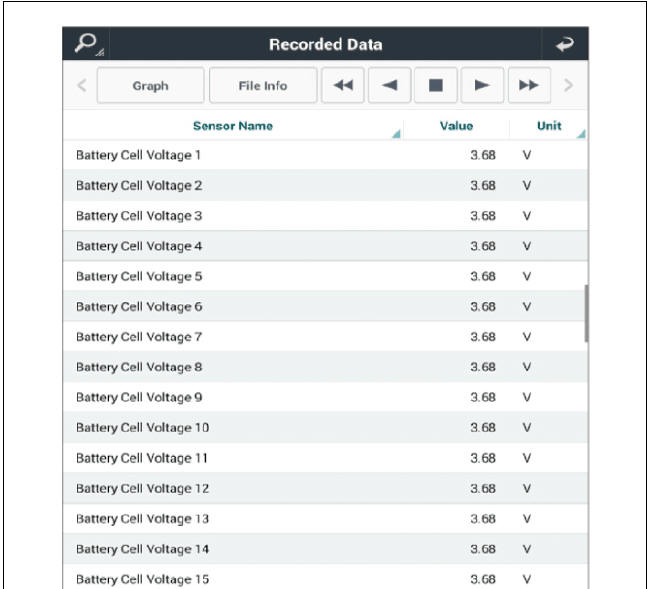

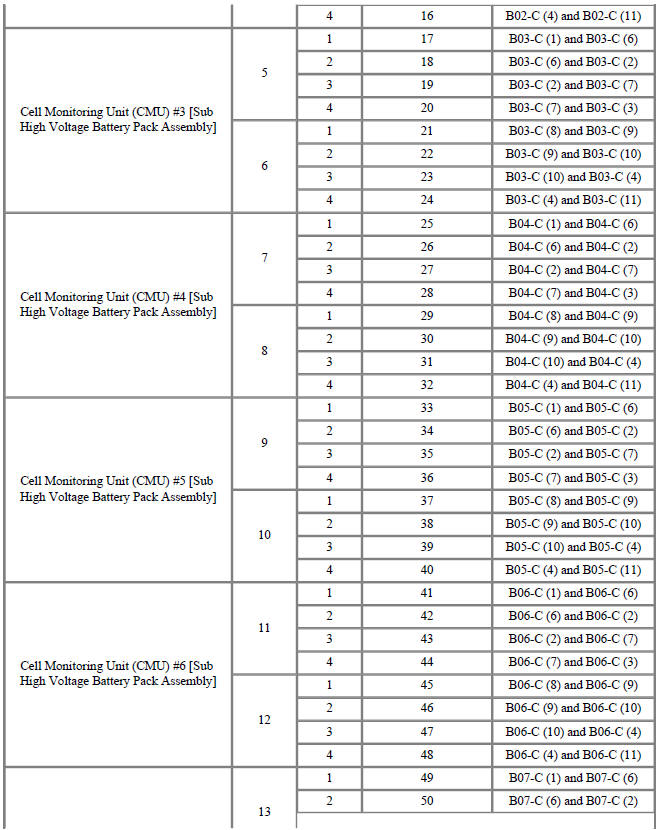

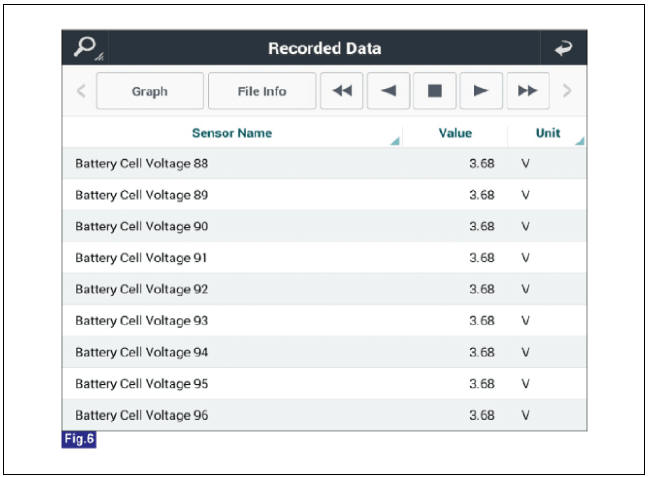

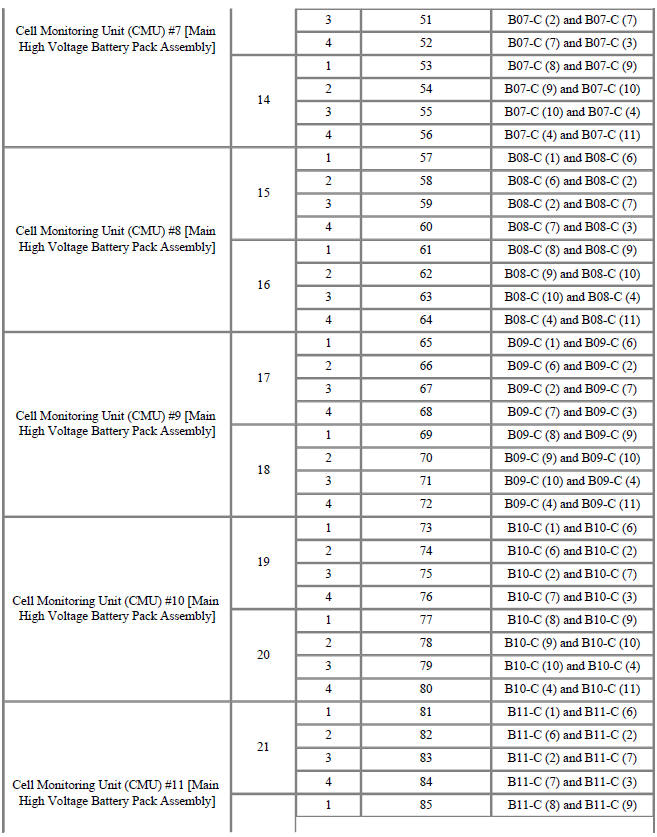

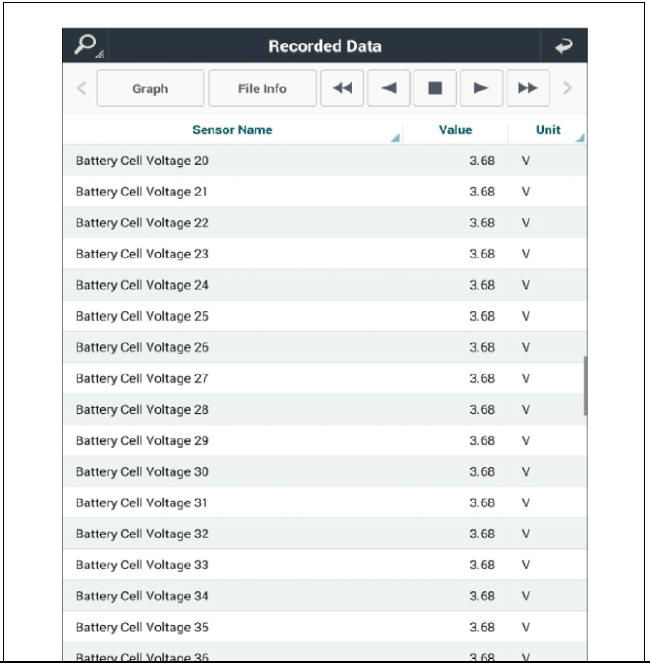

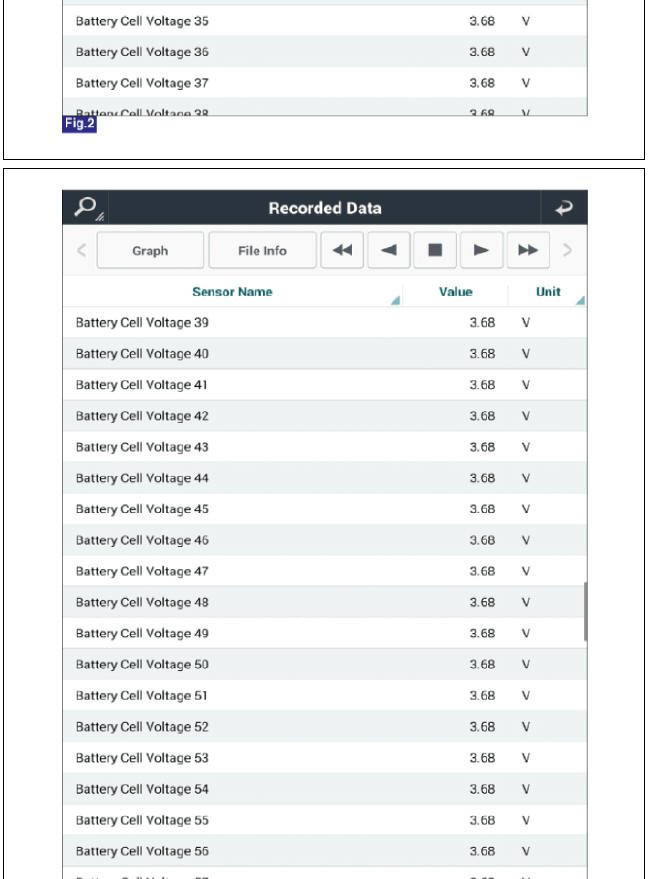

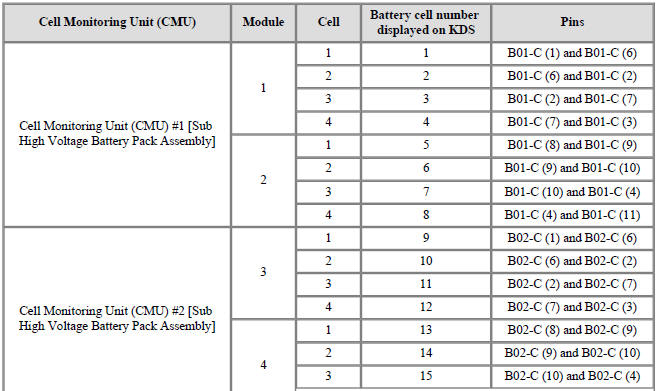

Battery cell number displayed on KDS

Battery cell number displayed on KDS
