KIA Niro: Driver's side fuse panel (Kia Niro EV)

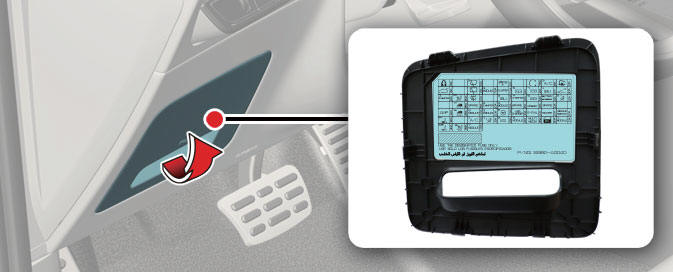

Driver's side fuse panel (Kia Niro EV)

Driver's side fuse panel (Kia Niro EV)

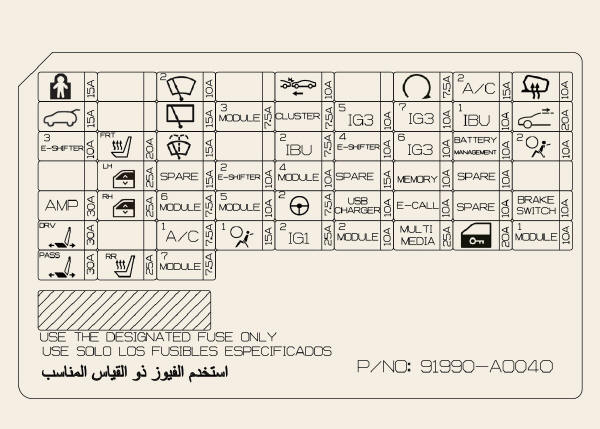

ICU Junction Block

ICU Junction Block

ICU Junction Block

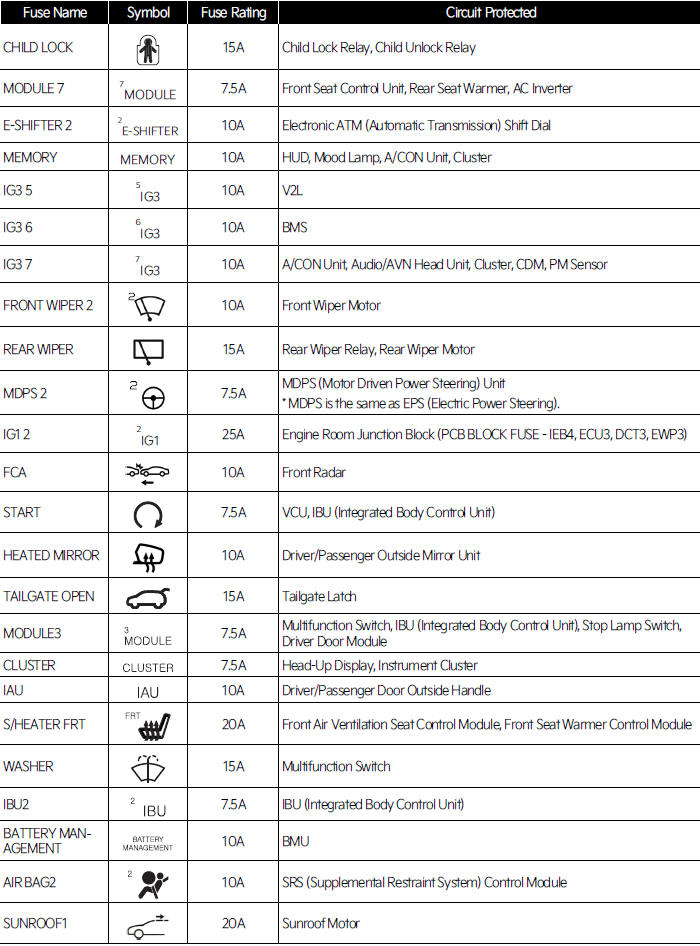

Fuse Name/ Symbol/ Fuse Rating/ Circuit Protected

CHILD LOCK/ /  15A/  Child Lock Relay, Child Unlock Relay

MODULE 7/  / 7.5A/  Front Seat Control Unit, Rear Seat Warmer, AC Inverter

E-SHIFTER 2/ / 10A/  Electronic ATM (Automatic Transmission) Shift Dial

MEMORY/ /  10A/  HUD, Mood Lamp, A/CON Unit, Cluster

IG3 5/  / 10A/ V2L

IG3 6/  / 10A/  BMS

IG3 7/  /  10A/  A/CON Unit, Audio/AVN Head Unit, Cluster, CDM, PM Sensor

FRONT WIPER 2/   / 10A/  Front Wiper Motor

REAR WIPER/  /   15A/  Rear Wiper Relay, Rear Wiper Motor

MDPS 2/   /  7.5A/ MDPS (Motor Driven Power Steering) Unit * MDPS is the same as EPS (Electric Power Steering).

IG1 2/  / 25A/  Engine Room Junction Block (PCB BLOCK FUSE - IEB4, ECU3, DCT3, EWP3)

FCA/   / 10A / Front Radar

START//   7.5A/  VCU, IBU (Integrated Body Control Unit)

HEATED MIRROR/ /  10A/ Driver/Passenger Outside Mirror Unit

TAILGATE OPEN// 15A/  Tailgate Latch

MODULE3/ / 7.5A/  Multifunction Switch, IBU (Integrated Body Control Unit), Stop Lamp Switch, Driver Door Module

CLUSTER/ /  7.5A/  Head-Up Display, Instrument Cluster

IAU/  / 10A/  Driver/Passenger Door Outside Handle

S/HEATER FRT/ / 20A/ Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

WASHER/ / 15A/ Multifunction Switch

IBU2/ /  7.5A/  IBU (Integrated Body Control Unit)

BATTERY MANAGEMENT/   / 10A/  BMU

AIR BAG2/   / 10A / SRS (Supplemental Restraint System) Control Module

SUNROOF1/   / 20A/  Sunroof Motor

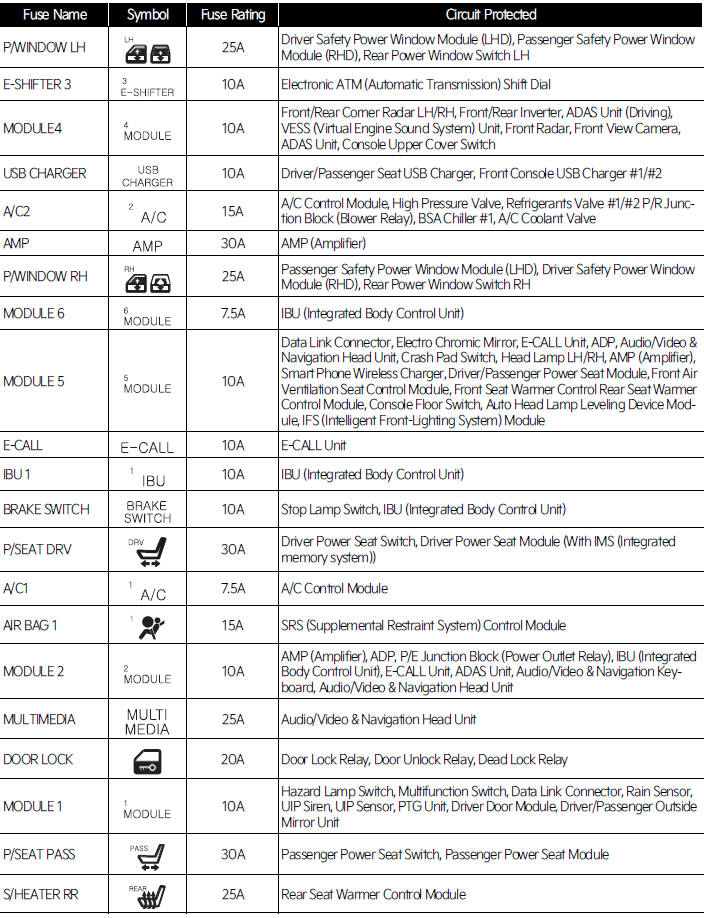

P/WINDOW LH/   / 25A / Driver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD), Rear Power Window Switch LH

E-SHIFTER 3/   /  10A/  Electronic ATM (Automatic Transmission) Shift Dial

MODULE4/ / 10A/ Front/Rear Corner Radar LH/RH, Front/Rear Inverter, ADAS Unit (Driving), VESS (Virtual Engine Sound System) Unit, Front Radar, Front View Camera, ADAS Unit, Console Upper Cover Switch

USB CHARGER/  / 10A/ Driver/Passenger Seat USB Charger, Front Console USB Charger #1/#2

A/C2/   / 15A/  A/C Control Module, High Pressure Valve, Refrigerants Valve #1/#2 P/R Junction Block (Blower Relay), BSA Chiller #1, A/C Coolant Valve

AMP/ / 30A/ AMP (Amplifier)

P/WINDOW RH/   / 25A/ Passenger Safety Power Window Module (LHD), Driver Safety Power Window Module (RHD), Rear Power Window Switch RH

MODULE 6/   / 7.5A/ IBU (Integrated Body Control Unit)

MODULE 5/   / 10A/ Data Link Connector, Electro Chromic Mirror, E-CALL Unit, ADP, Audio/Video & Navigation Head Unit, Crash Pad Switch, Head Lamp LH/RH, AMP (Amplifier), Smart Phone Wireless Charger, Driver/Passenger Power Seat Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Rear Seat Warmer Control Module, Console Floor Switch, Auto Head Lamp Leveling Device Module, IFS (Intelligent Front-Lighting System) Module

E-CALL/   / 10A/ E-CALL Unit

IBU 1/   / 10A/ IBU (Integrated Body Control Unit)

BRAKE SWITCH/   / 10A/ Stop Lamp Switch, IBU (Integrated Body Control Unit)

P/SEAT DRV/ / 30A/ Driver Power Seat Switch, Driver Power Seat Module (With IMS (Integrated memory system))

A/C1/ / 7.5A/ A/C Control Module

AIR BAG 1/  / 15A/ SRS (Supplemental Restraint System) Control Module

MODULE 2/   / 10A/ AMP (Amplifier), ADP, P/E Junction Block (Power Outlet Relay), IBU (Integrated Body Control Unit), E-CALL Unit, ADAS Unit, Audio/Video & Navigation Keyboard, Audio/Video & Navigation Head Unit

MULTIMEDIA/ / 25A/  Audio/Video & Navigation Head Unit

DOOR LOCK/   / 20A/ Door Lock Relay, Door Unlock Relay, Dead Lock Relay

MODULE 1/ /  10A/ Hazard Lamp Switch, Multifunction Switch, Data Link Connector, Rain Sensor, UIP Siren, UIP Sensor, PTG Unit, Driver Door Module, Driver/Passenger Outside Mirror Unit

P/SEAT PASS//   30A/  Passenger Power Seat Switch, Passenger Power Seat Module

S/HEATER RR/ / 25A/ Rear Seat Warmer Control Module
