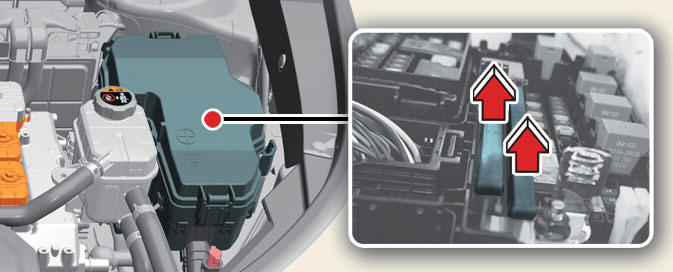

KIA Niro: Engine compartment fuse panel (Kia NIRO Hybrid)

Engine compartment fuse panel (Kia NIRO Hybrid)

Engine compartment fuse panel (Kia NIRO Hybrid)

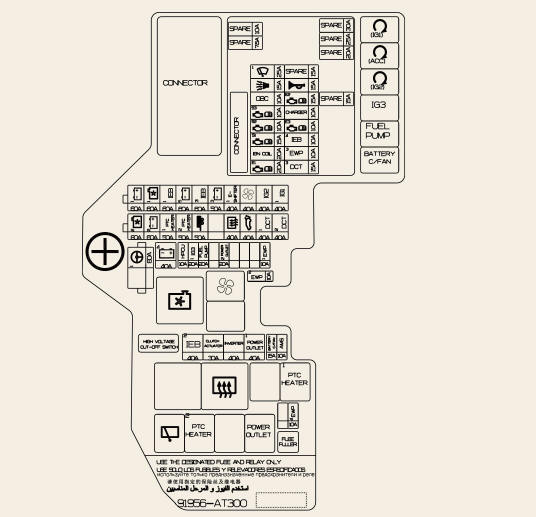

Engine Room Junction Block

Engine Room Junction Block

Engine Room Junction Block

Engine Room Junction Block

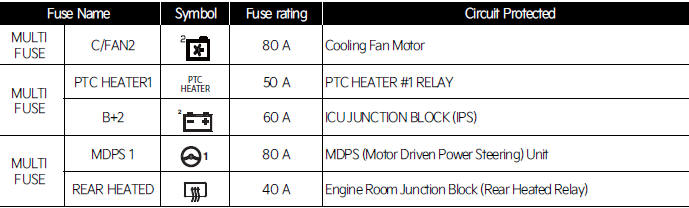

MULTI FUSE

C/FAN2//  80 A/  Cooling Fan Motor

MULTI FUSE

  • PTC HEATER1/ /  50 A/  PTC HEATER #1 RELAY
  • B+2/ /  60 A/ ICU JUNCTION BLOCK (IPS)

MULTI FUSE

  • MDPS 1/ / 80 A/ MDPS (Motor Driven Power Steering) Unit
  • REAR HEATED/ /  40 A/ Engine Room Junction Block (Rear Heated Relay)

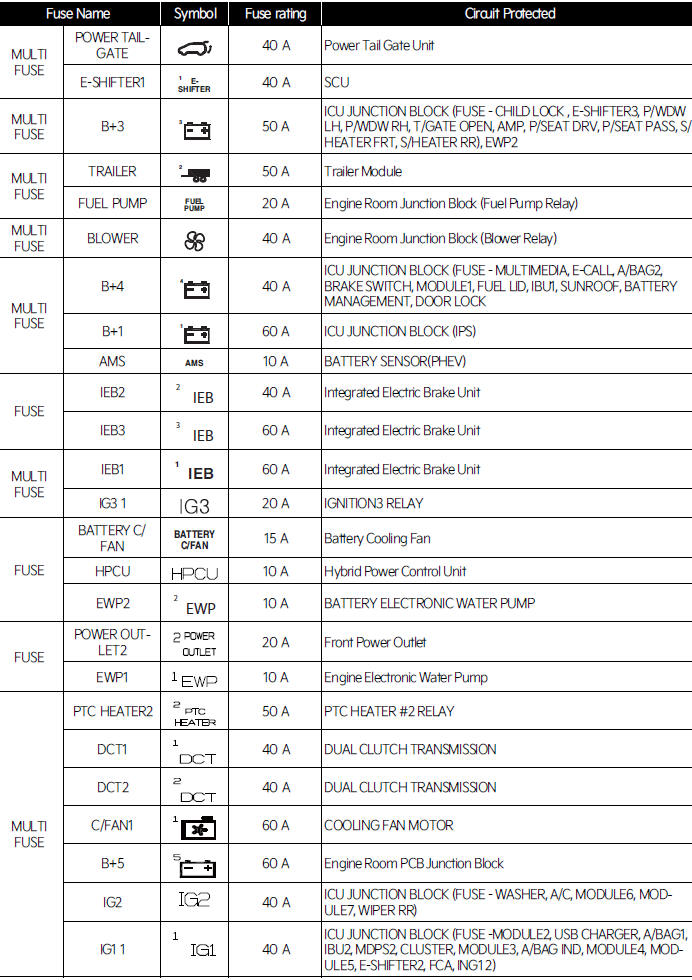

MULTI FUSE

  • POWER TAILGATE/ / 40 A/ Power Tail Gate Unit
  • E-SHIFTER1// 40 A/ SCU

MULTI FUSE/  B+3/  50 A/ ICU JUNCTION BLOCK (FUSE - CHILD LOCK , E-SHIFTER3, P/WDW LH, P/WDW RH, T/GATE OPEN, AMP, P/SEAT DRV, P/SEAT PASS, S/ HEATER FRT, S/HEATER RR), EWP2

MULTI FUSE

  • TRAILER/ / 50 A/ Trailer Module
  • FUEL PUMP// 20 A/ Engine Room Junction Block (Fuel Pump Relay)

MULTI FUSE

BLOWER/ / 40 A/ Engine Room Junction Block (Blower Relay)

MULTI FUSE

  • B+4/ / 40 A/ ICU JUNCTION BLOCK (FUSE - MULTIMEDIA, E-CALL, A/BAG2, BRAKE SWITCH, MODULE1, FUEL LID, IBU1, SUNROOF, BATTERY MANAGEMENT, DOOR LOCK
  • B+1/ /  60 A/  ICU JUNCTION BLOCK (IPS)
  • AMS/ / 10 A/ BATTERY SENSOR(PHEV)

FUSE

  • IEB2// 40 A/ Integrated Electric Brake Unit
  • IEB3/ /  60 A/ Integrated Electric Brake Unit

MULTI FUSE

  • IEB1/ /  60 A/  Integrated Electric Brake Unit
  • IG3 1/ / 20 A/  IGNITION3 RELAY

FUSE

  • BATTERY C/ FAN// 15 A/ Battery Cooling Fan
  • HPCU// 10 A/  Hybrid Power Control Unit
  • EWP2/ / 10 A/  BATTERY ELECTRONIC WATER PUMP

FUSE

  • POWER OUTLET2/ / 20 A/  Front Power Outlet
  • EWP1/ / 10 A/  Engine Electronic Water Pump

MULTI FUSE

  • PTC HEATER2//  50 A/ PTC HEATER #2 RELAY
  • DCT1// 40 A/ DUAL CLUTCH TRANSMISSION
  • DCT2// 40 A/ DUAL CLUTCH TRANSMISSION
  • C/FAN1/ /  60 A/  COOLING FAN MOTOR
  • B+5//  60 A/  Engine Room PCB Junction Block
  • IG2// 40 A/ ICU JUNCTION BLOCK (FUSE - WASHER, A/C, MODULE6, MODULE7, WIPER RR)
  • IG1 1// 40 A/ ICU JUNCTION BLOCK (FUSE -MODULE2, USB CHARGER, A/BAG1, IBU2, MDPS2, CLUSTER, MODULE3, A/BAG IND, MODULE4, MODULE5, E-SHIFTER2, FCA, ING1 2)

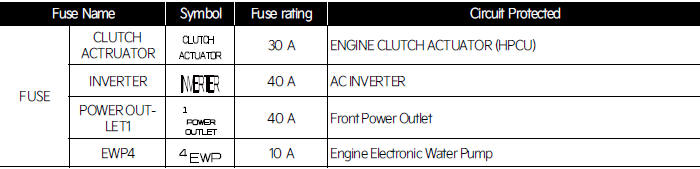

FUSE

  • CLUTCH ACTRUATOR/ / 30 A/ ENGINE CLUTCH ACTUATOR (HPCU)
  • INVERTER / /40 A/ AC INVERTER
  • POWER OUTLET1// 40 A/ Front Power Outlet
  • EWP4// 10 A/ Engine Electronic Water Pump

PCB Block

PCB Block

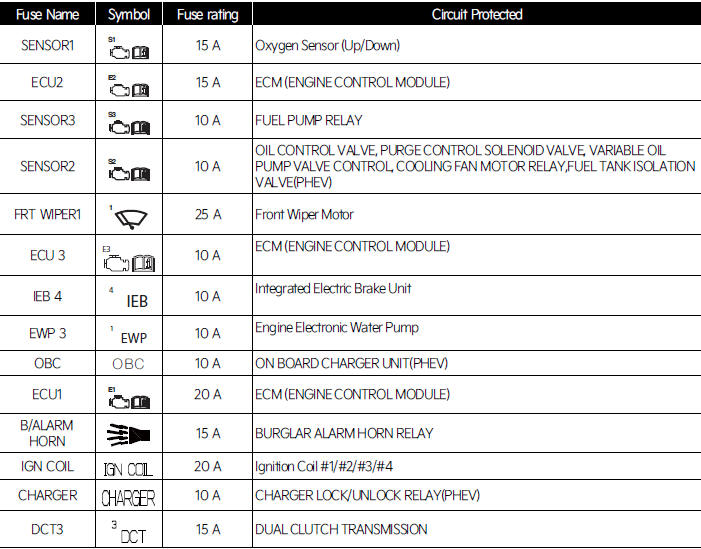

Fuse Name/ Symbol/ Fuse rating/ Circuit Protected

SENSOR1// 15 A/ Oxygen Sensor (Up/Down)

ECU2// 15 A/ ECM (ENGINE CONTROL MODULE)

SENSOR3// 10 A/ FUEL PUMP RELAY

SENSOR2// 10 A/ OIL CONTROL VALVE, PURGE CONTROL SOLENOID VALVE, VARIABLE OIL PUMP VALVE CONTROL, COOLING FAN MOTOR RELAY,FUEL TANK ISOLATION VALVE(PHEV)

FRT WIPER1// 25 A/ Front Wiper Motor

ECU 3// 10 A/ ECM (ENGINE CONTROL MODULE)

IEB 4// 10 A/ Integrated Electric Brake Unit

EWP 3// 10 A/ Engine Electronic Water Pump

OBC// 10 A /ON BOARD CHARGER UNIT(PHEV)

ECU1// 20 A/ ECM (ENGINE CONTROL MODULE)

B/ALARM HORN //15 A/ BURGLAR ALARM HORN RELAY

IGN COIL// 20 A/ Ignition Coil #1/#2/#3/#4

CHARGER //10 A/ CHARGER LOCK/UNLOCK RELAY(PHEV)

DCT3// 15 A/ DUAL CLUTCH TRANSMISSION

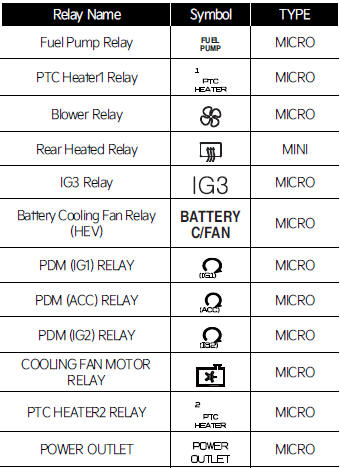

Relay

Refer to the following table for the relay type.

Relay

Relay Name/ Symbol /TYPE

  • Fuel Pump Relay MICRO
  • PTC Heater1 Relay MICRO
  • Blower Relay MICRO
  • Rear Heated Relay MINI
  • IG3 Relay MICRO
  • Battery Cooling Fan Relay (HEV) MICRO
  • PDM (IG1) RELAY MICRO
  • PDM (ACC) RELAY MICRO
  • PDM (IG2) RELAY MICRO
  • COOLING FAN MOTOR RELAY MICRO
  • PTC HEATER2 RELAY MICRO
  • POWER OUTLET MICRO

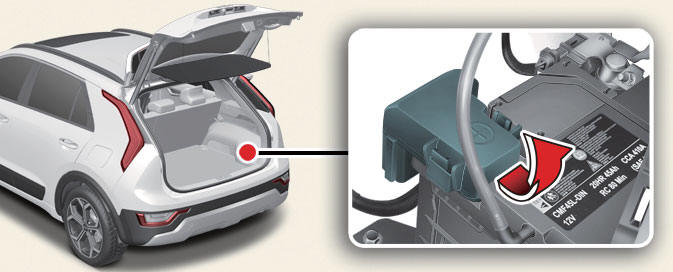

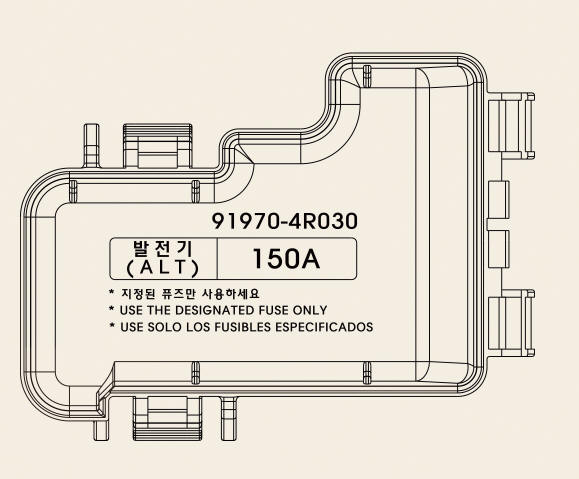

Engine compartment fuse panel (Battery terminal cover) (For Plug-in Hybrid)

Engine compartment fuse panel (Battery terminal cover) (For Plug-in Hybrid)

Engine compartment fuse panel (Battery terminal cover) (For Plug-in Hybrid)
