KIA Niro: Driver's side fuse panel (Kia NIRO Hybrid)

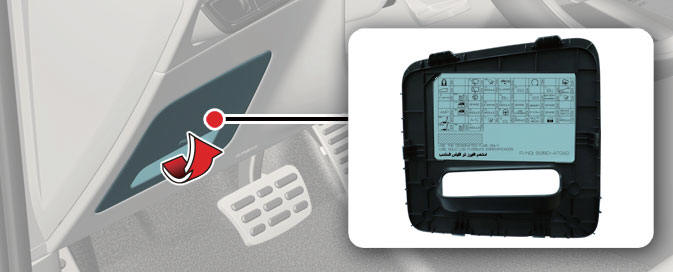

Driver's side fuse panel (Kia NIRO Hybrid)

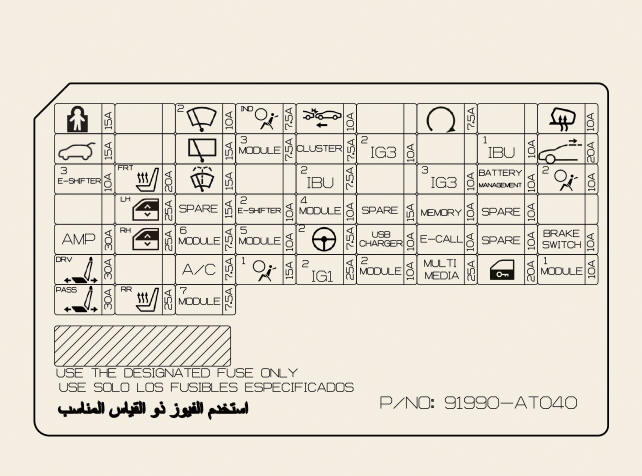

For HEV vehicle
For HEV vehicle

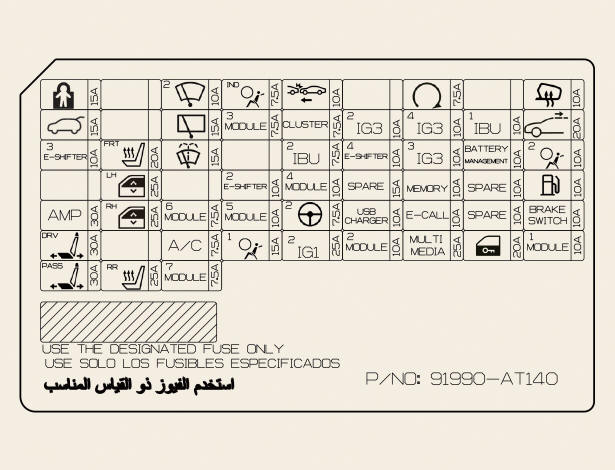

For PHEV vehicle
For PHEV vehicle

ICU Junction Block

ICU Junction Block

ICU Junction Block

ICU Junction Block

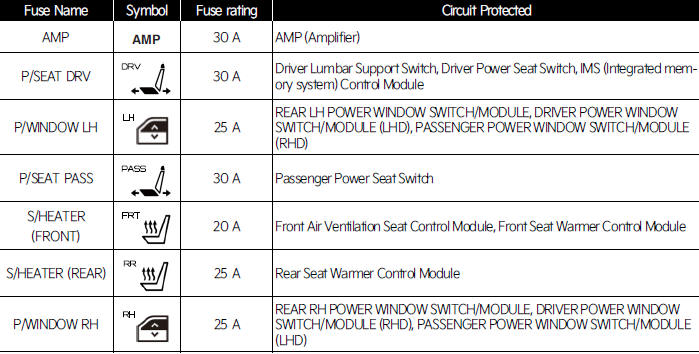

Fuse Name/ Symbol/ Fuse rating/ Circuit Protected

AMP / / 30 A/ AMP (Amplifier)

P/SEAT DRV/ / 30 A/ Driver Lumbar Support Switch, Driver Power Seat Switch, IMS (Integrated memory system) Control Module

P/WINDOW LH/ / 25 A/ REAR LH POWER WINDOW SWITCH/MODULE, DRIVER POWER WINDOW SWITCH/MODULE (LHD), PASSENGER POWER WINDOW SWITCH/MODULE (RHD)

P/SEAT PASS/ / 30 A/ Passenger Power Seat Switch

S/HEATER (FRONT)/ / 20 A/  Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

S/HEATER (REAR)/ / 25 A/ Rear Seat Warmer Control Module

P/WINDOW RH/ / 25 A/ REAR RH POWER WINDOW SWITCH/MODULE, DRIVER POWER WINDOW SWITCH/MODULE (RHD), PASSENGER POWER WINDOW SWITCH/MODULE (LHD)

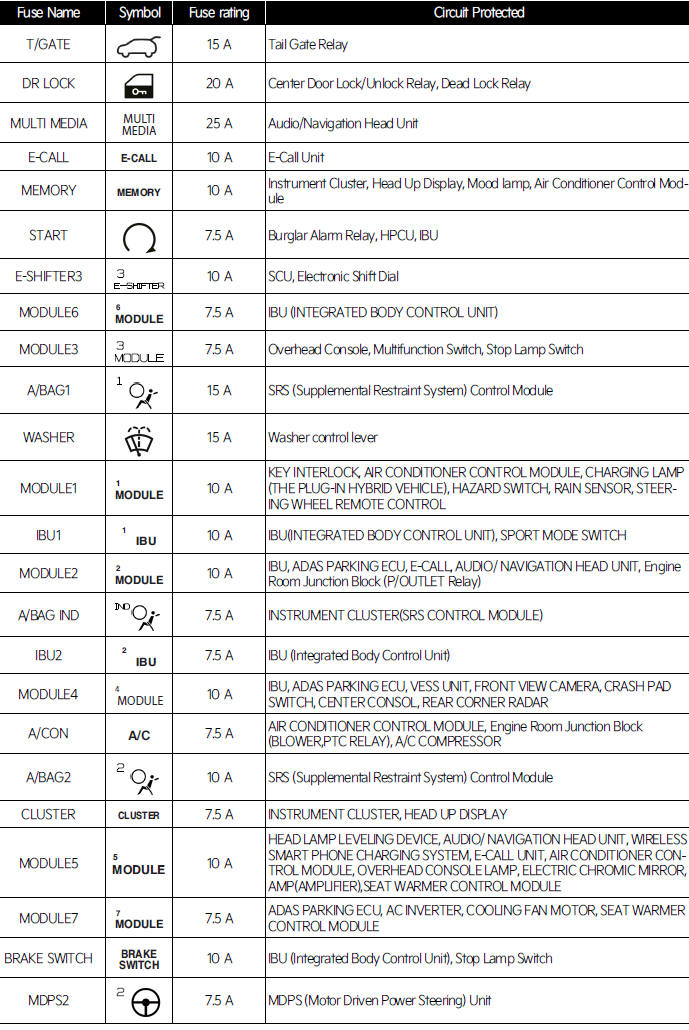

T/GATE/ / 15 A/  Tail Gate Relay

DR LOCK/  / 20 A/  Center Door Lock/Unlock Relay, Dead Lock Relay

MULTI MEDIA/ / 25 A/  Audio/Navigation Head Unit

E-CALL/ /  10 A/  E-Call Unit

MEMORY/ / 10 A/  Instrument Cluster, Head Up Display, Mood lamp, Air Conditioner Control Module

START/  / 7.5 A/  Burglar Alarm Relay, HPCU, IBU

E-SHIFTER3/  / 10 A/  SCU, Electronic Shift Dial

MODULE6/  / 7.5 A/  IBU (INTEGRATED BODY CONTROL UNIT)

MODULE3/ / 7.5 A/  Overhead Console, Multifunction Switch, Stop Lamp Switch

A/BAG1/ / 15 A/  SRS (Supplemental Restraint System) Control Module

WASHER/  / 15 A/  Washer control lever

MODULE1/ /10 A/ KEY INTERLOCK, AIR CONDITIONER CONTROL MODULE, CHARGING LAMP (THE PLUG-IN HYBRID VEHICLE), HAZARD SWITCH, RAIN SENSOR, STEERING WHEEL REMOTE CONTROL

IBU1/ / 10 A/ IBU(INTEGRATED BODY CONTROL UNIT), SPORT MODE SWITCH

MODULE2/ / 10 A/  IBU, ADAS PARKING ECU, E-CALL, AUDIO/ NAVIGATION HEAD UNIT, Engine Room Junction Block (P/OUTLET Relay)

A/BAG IND/  / 7.5 A/  INSTRUMENT CLUSTER(SRS CONTROL MODULE)

IBU2/ / 7.5 A/  IBU (Integrated Body Control Unit)

MODULE4/  / 10 A/  IBU, ADAS PARKING ECU, VESS UNIT, FRONT VIEW CAMERA, CRASH PAD SWITCH, CENTER CONSOL, REAR CORNER RADAR

A/CON/  / 7.5 A/  AIR CONDITIONER CONTROL MODULE, Engine Room Junction Block (BLOWER,PTC RELAY), A/C COMPRESSOR

A/BAG2/  / 10 A/  SRS (Supplemental Restraint System) Control Module

CLUSTER/ / 7.5 A/  INSTRUMENT CLUSTER, HEAD UP DISPLAY

MODULE5/  / 10 A/ HEAD LAMP LEVELING DEVICE, AUDIO/ NAVIGATION HEAD UNIT, WIRELESS SMART PHONE CHARGING SYSTEM, E-CALL UNIT, AIR CONDITIONER CONTROL MODULE, OVERHEAD CONSOLE LAMP, ELECTRIC CHROMIC MIRROR, AMP(AMPLIFIER),SEAT WARMER CONTROL MODULE

MODULE7/ / 7.5 A/  ADAS PARKING ECU, AC INVERTER, COOLING FAN MOTOR, SEAT WARMER CONTROL MODULE

BRAKE SWITCH/   / 10 A / IBU (Integrated Body Control Unit), Stop Lamp Switch

MDPS2/  /  7.5 A / MDPS (Motor Driven Power Steering) Unit

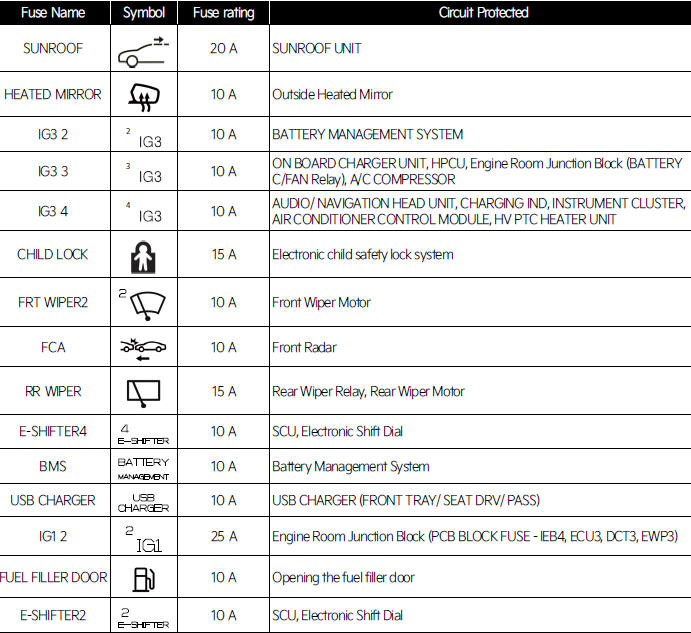

SUNROOF/ / 20 A/  SUNROOF UNIT

HEATED MIRROR/ / 10 A/ Outside Heated Mirror

IG3 2/ / 10 A/ BATTERY MANAGEMENT SYSTEM

IG3 3/ / 10 A/ ON BOARD CHARGER UNIT, HPCU, Engine Room Junction Block (BATTERY C/FAN Relay), A/C COMPRESSOR

IG3 4/ /  10 A / AUDIO/ NAVIGATION HEAD UNIT, CHARGING IND, INSTRUMENT CLUSTER, AIR CONDITIONER CONTROL MODULE, HV PTC HEATER UNIT

CHILD LOCK/ /  15 A / Electronic child safety lock system

FRT WIPER2/  /10 A/  Front Wiper Motor

FCA/ / 10 A/ Front Radar

RR WIPER/  / 15 A/ Rear Wiper Relay, Rear Wiper Motor

E-SHIFTER4/ /  10 A/ SCU, Electronic Shift Dial

BMS/ / 10 A/ Battery Management System

USB CHARGER/ /   10 A/ USB CHARGER (FRONT TRAY/ SEAT DRV/ PASS)

IG1 2/  / 25 A/ Engine Room Junction Block (PCB BLOCK FUSE - IEB4, ECU3, DCT3, EWP3)

FUEL FILLER DOOR/ /  10 A/ Opening the fuel filler door

E-SHIFTER2//  10 A/ SCU, Electronic Shift Dial
