KIA Niro: Engine And Transaxle Assembly

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Engine Mechanical System / Engine And Transaxle Assembly

Engine Room Under Cover Repair procedures

Removal

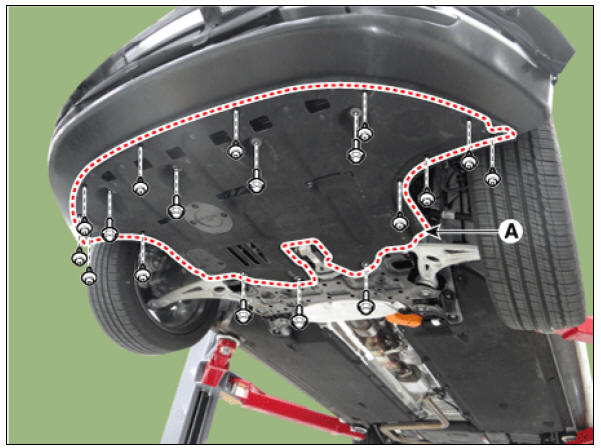

Engine room under cover.

Remove the engine room under cover (A).

Tightening torque : 3.9 - 5.9 N*m (0.4 - 0.6 kgf*m, 2.9 - 4.3 lb*ft)

Install in the reverse order of removal.

Engine Mounting Repair Procedures

Engine Mounting Components and components location Transaxle mounting bracket Roll rod bracket Engine mounting bracket Engine mounting support bracket Engine Mounting Repair Procedures Removal and Installation Engine Mounting Brac

Engine And Transaxle Assembly Repair procedures

Removal Warning Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries. Be
