KIA Niro: Feature of seat leather


* The actual features in your vehicle may not necessarily be available due to the selected options or regions.

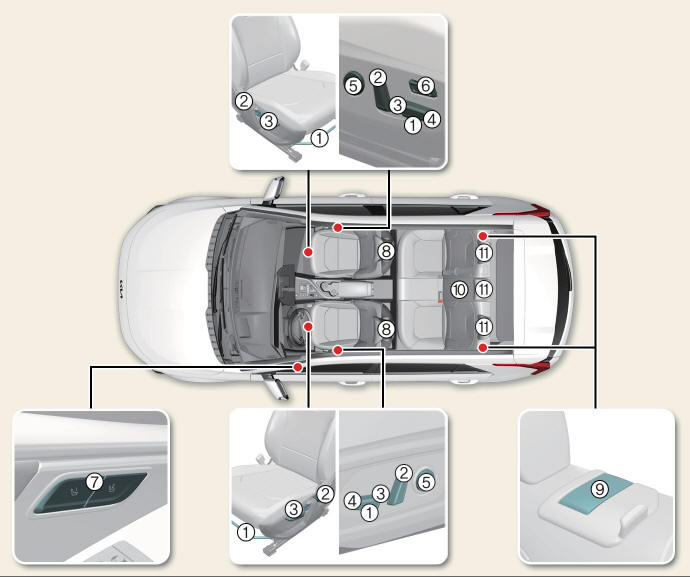

* The picture above is based on LHD vehicle. For RHD vehicle, the operation of front seat are located on the opposite side.

Front seat

  1. Forward and backward
  2. Seatback angle
  3. Seat height
  4. Cushion tilt
  5. Lumbar support
  6. Relaxion comfort seat
  7. Driver position memory system
  8. Headrest

2nd-row seat

  1. Seatback angle/folding
  2. Armrest
  3. Headrest

Feature of seat leather

  • Our car seats are upholstered with a combination of artificial and genuine leather. The genuine leather is made from the outer skin of an animal, which goes through a special process to be available for use. Since it is a natural substance, each part differs in thickness or density. Also, wrinkles could appear depending on the temperature and humidity.
  • The seat cover is made of stretchable material to improve comfort of passengers.
  • The parts contacting the body are curved and the side supporting area is high which provides driving comfort and stability.
  • Wrinkles may appear naturally from usage. It is not a fault of the product.


  • Wrinkles or abrasions which appear naturally from usage are not covered by warranty.
  • Belts with metallic accessories, zippers or keys inside the back pocket may damage the seat fabric.
  • Make sure not to wet the seat. It may change the nature of leather.
  • Jeans or clothes which could bleach may contaminate the surface of the seat covering fabric.
