KIA Niro: Identification Number Locations
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / General Information / Identification Number Locations

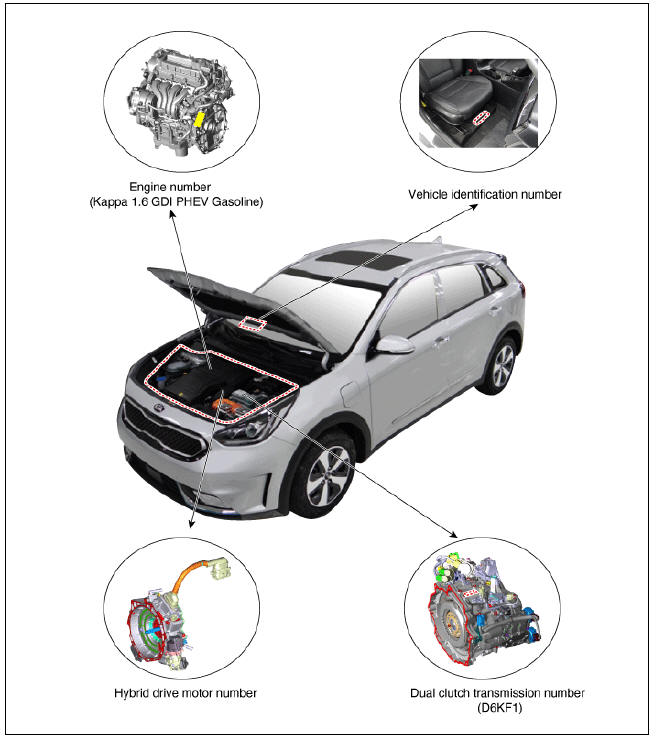

Identification Numbers
Identification Number Description

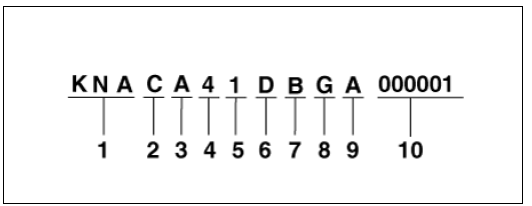

Vehicle Identification Number
- World Manufacturer Identifier (WMI)
- KNA : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle)
- KNC : Commercial vehicle (Van)
- KND: MPV/SUV/RV (For U.S.A, Canada, Mexico)
- KNH: Van
- Vehicle line
- C : Niro
- Model & Series
- A : Low grade (L, GA1, GA2)
- B : Middle-Low grade (GL, GB1, GB2)
- C : Middle grade (GLS, JLS, TAX, GD1, GD2)
- D : Middle-High grade (HGS, GE1, GE2)
- E : High grade (TOP, GF1, GF2)
- M :Premium GL grade (PGL, GC1, GC2)
- Body/Cabin type, Gross Vehicle Weight Rating
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
- H : Fast back - 5 door
KNC (Commercial vehicle / Van) Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 2 : Standard Cabin Class-H 4×2
- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2
- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4
- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2
- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4
- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2
- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4
- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2
- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4
- A : Super Cabin Class-E 4×2 / Box Class-E 4×2
- B : Super Cabin Class-E 4×4 / Box Class-E 4×4
- C : Super Cabin Class-F 4×2 / Box Class-F 4×2
- D : Super Cabin Class-F 4×4 / Box Class-F 4×4
KND
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
KNH
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet

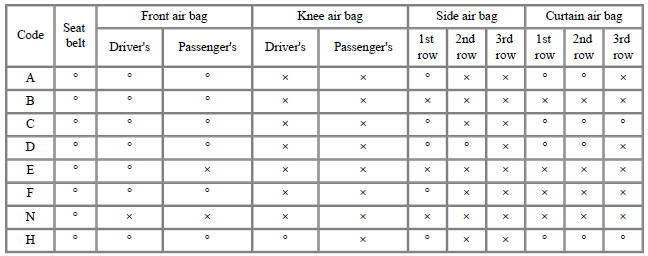

- Restraint system, Brake system
KNA, KND
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
KNC, KNH
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
- Engine type
- D : Gasoline engine 1.6 (Kappa 1.6 GDI + PHEV)
- Check digit or Driver's side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Reduction Gear
- G : LHD & DCT
- H : LHD & DCT+Transfer
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Reduction Gear
- V : RHD & DCT
- W : RHD & DCT+Transfer
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, ×
- Production year
- G : 2016, H : 2017, J : 2018, K : 2019...
- Plant of production
- 6 : Sohari (Korea)
- 5 : Hwasung (Korea)
- 7 : Kwangju (Korea)
- T : Seosan (Korea)
- Vehicle production sequence number
- 000001 - 999999

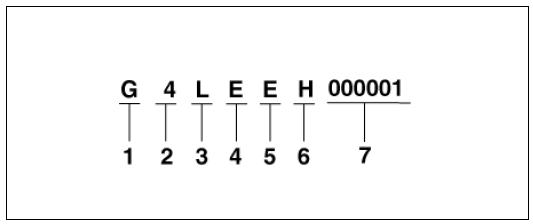

Engine Number
- Engine fuel
- G : Gasoline
- Engine range
- 4 : 4 cycle 4 cylinder
- Engine development order and capacity
- L : Kappa engine (Gasoline)
- Engine Capacity
- E : 1580cc
- Production year
- G : 2016, H : 2017, I : 2018, J : 2019...
- Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
- Engine production sequence number
- 000001 - 999999
Transaxle Number
Double Clutch Transmission (D6KF1)
- Model
- D80k : D6KF1
- Production year
- F : 2015, G : 2016, H : 2017, I : 2018...
- Plant of production- D : Hyundai Dymos
- Month of production
- 1 - 9 : 1 - 9 month
- A - C : 10 - 12 month
- Transmission production sequence number
- 00001 - 99999

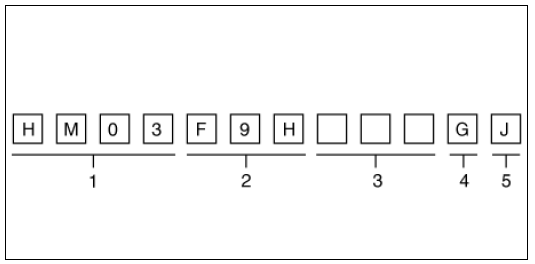

Hybrid drive motor
- Motor model codeHM03 : .
- HM03 : Hybrid drive motor
- production date
- Year - F : 2015, G : 2016, H : 2017, J : 2018, K : 2019...
- Month - 1 - 9 : 1 - 9, A - C : 10 - 12
- Date - 1 -9 : 1 - 9, A - Z : 10 - 31)
- Motor production sequence number
- 001 - 999
- Model code
- G: DE
- Plant of production
- J : Chungju - MOBIS plant (Korea)
- C : HMC(MOBIS) plant (China)

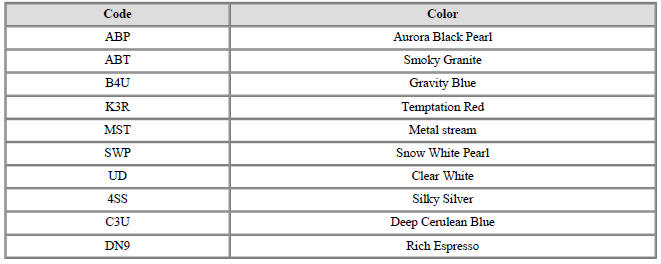

Paint Code
