KIA Niro: Light position

Light position (Front)

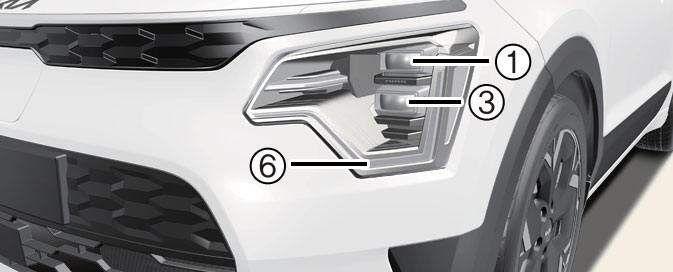

Head lamp - Type A
Head lamp - Type A

Head lamp - Type B
Head lamp - Type B

Front fog lamp
Front fog lamp

  1. Headlamp (Low) (LED type)
  2. Headlamp (Low/High) (Bulb type)
  3. Headlamp (Low/High) (LED type)
  4. Front turn signal lamp (Bulb type)
  5. Day time running lamp/Position lamp (LED type)
  6. Day time running lamp/Position lamp/ Front turn signal lamp (LED type)
  7. Front fog lamp (LED type)

Light position (Rear)

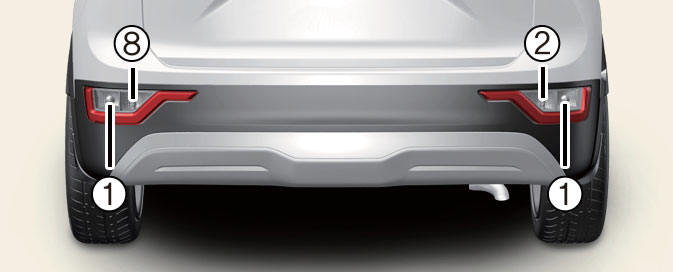

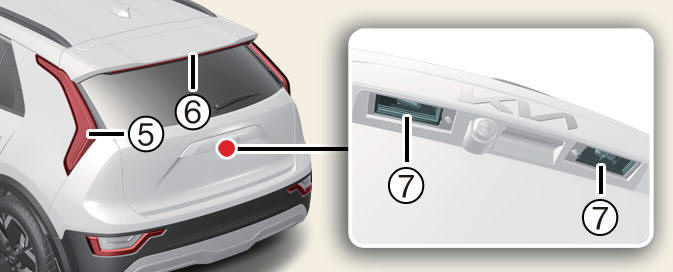

Rear combination lamp - Type A
Rear combination lamp - Type A

Rear combination lamp - Type B
Rear combination lamp - Type B

Light position (Rear)

  1. Rear turn signal lamp (Bulb type)
  2. Backup lamp (Bulb type, Left-hand drive) Rear fog lamp (LED type, Right-hand drive)
  3. Rear turn signal lamp (LED type)
  4. Backup lamp (LED type, Left-hand drive) Rear fog lamp (LED type, Right-hand drive)
  5. Tail lamp/Stop lamp (LED type)
  6. High mounted stop lamp (LED type)
  7.  License plate lamp (Bulb type)
  8. Rear fog lamp (LED type, Left-hand drive) Backup lamp (Bulb type, Right-hand drive)
  9. Rear fog lamp (LED type, Left-hand drive) Backup lamp (LED type, Right-hand drive)

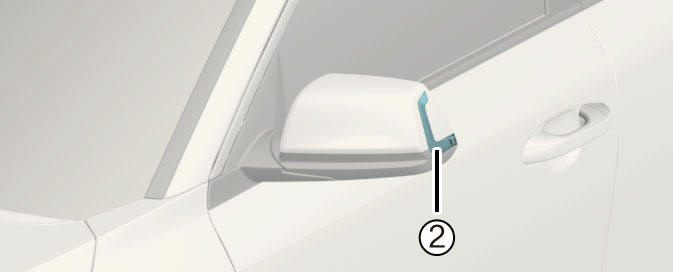

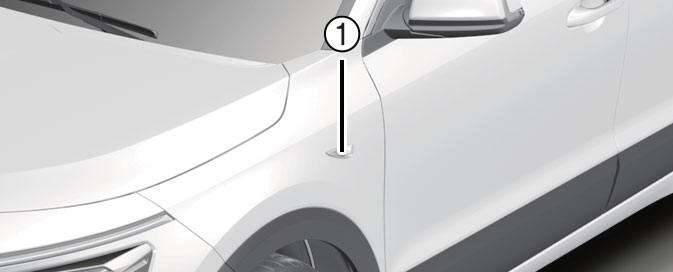

Light position (Side)

Light position (Side)

Light position (Side)

  1. Side repeater lamp (Bulb type)
  2. Side repeater lamp (LED type)

Replacing lights (LED type)

If the LED lamp does not operate, have your vehicle checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.

The LED lamp cannot be replaced as a single unit because it is an integrated unit. The LED lamp has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.
