KIA Niro: Parking Distance Warning (PDW) Sensor
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

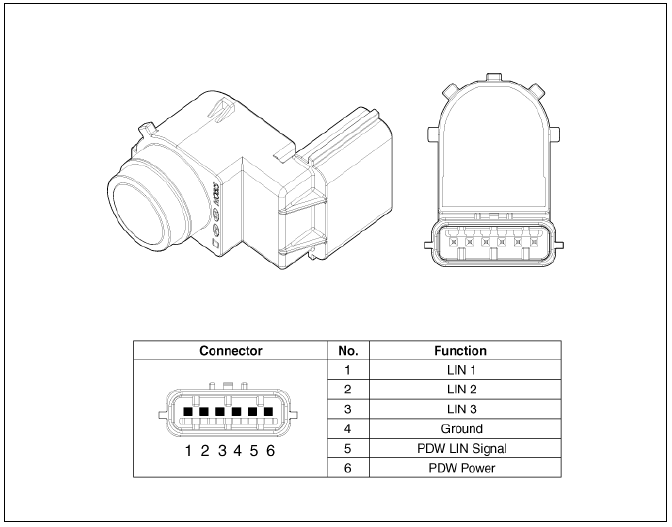

Connector and Terminal function

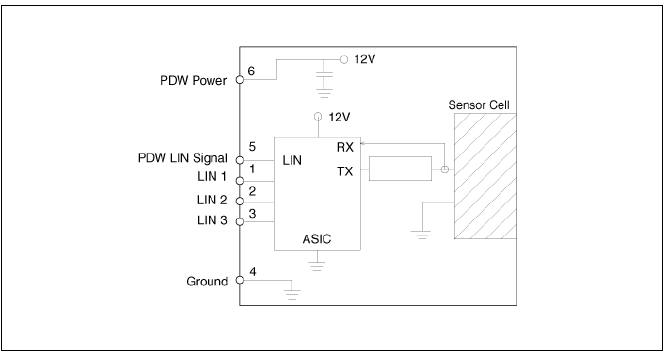

Circuit Diagram
Removal
PDW-F (Parking Distance Warning-Forward) Sensor
- Remove the front bumper assembly.
(Refer to Body - "Front Bumper Assembly")

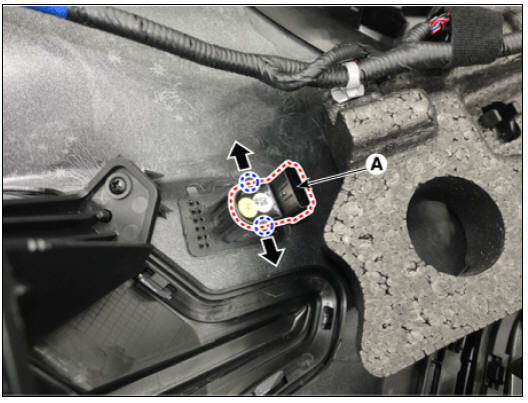

- Disconnect the connector (A) from the PDW-F sensor.
- Remove the PDW-F sensor (A) by pushing the sensor holder in the direction of arrow.
PDW-R (Parking Distance Warning-Reverse) Sensor
- Remove the front bumper assembly.
(Refer to Body - "Front Bumper Assembly")

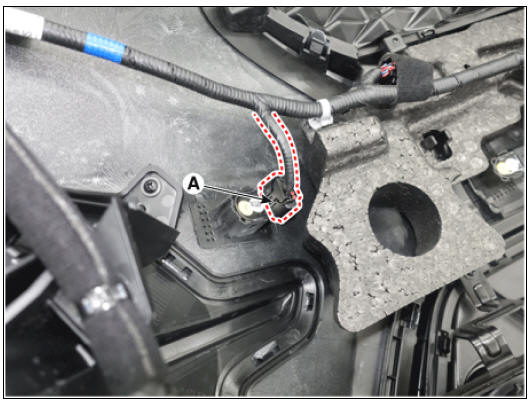

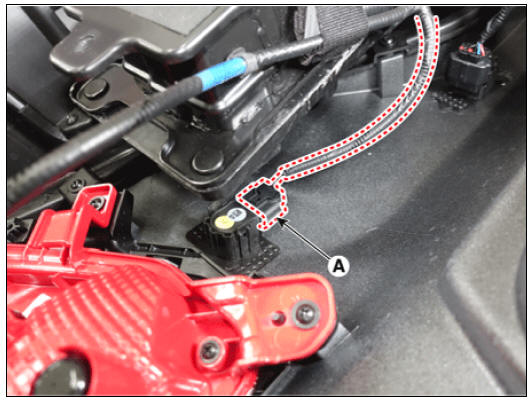

- Disconnect the connector (A) from the PDW-R sensor.
- Remove the PDW-R sensor (A) by pushing the sensor holder in the direction of arrow.
Installation
- Install in the reverse order of removal.
