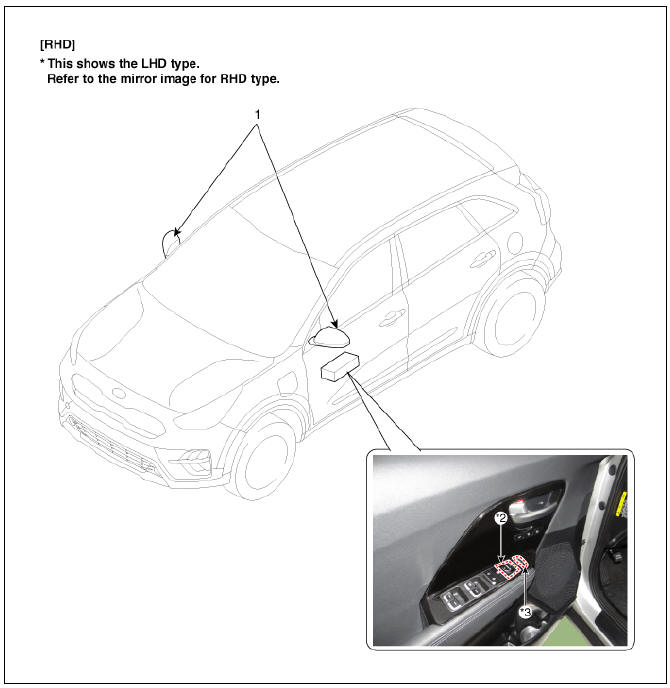

Power Door Mirrors / Components And Components Location
- Power door mirror
- Power door mirror switch
- Power folding mirror switch
Connector and Terminal Function

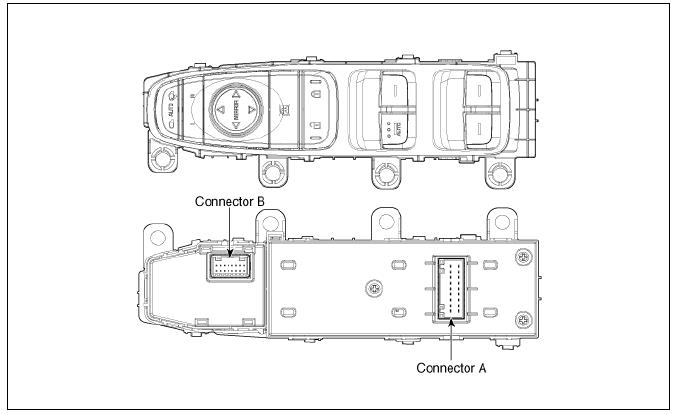

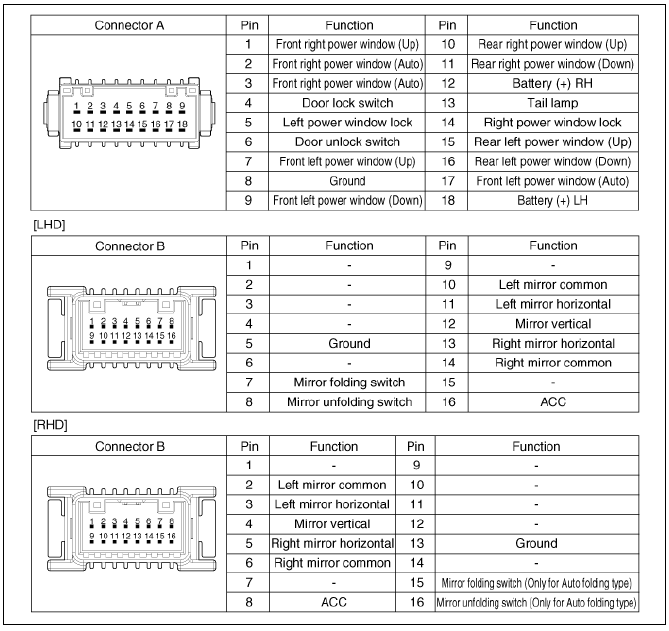

Driver Power Window Switch (Non-IMS Type)

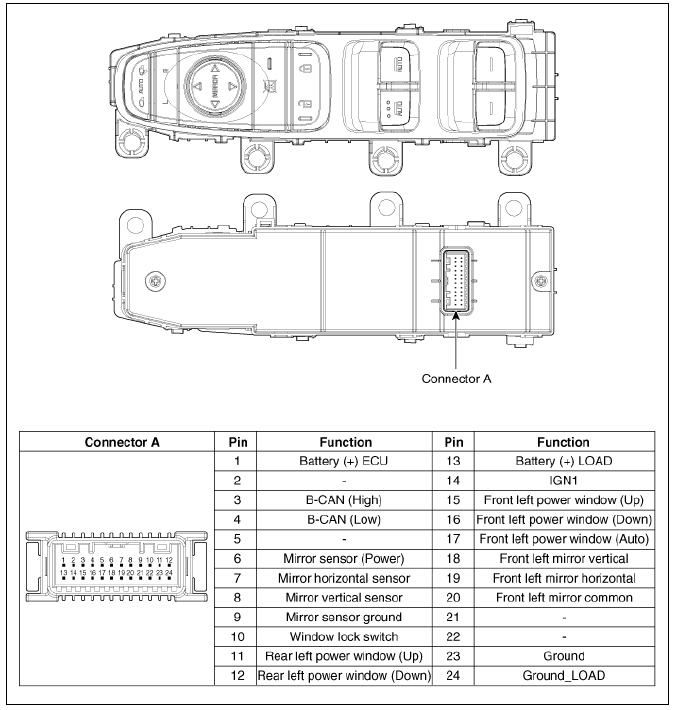

Driver Power Window Switch (DDM, IMS Type)
Circuit Diagram
Driver Power Window Switch (Non-IMS Type)

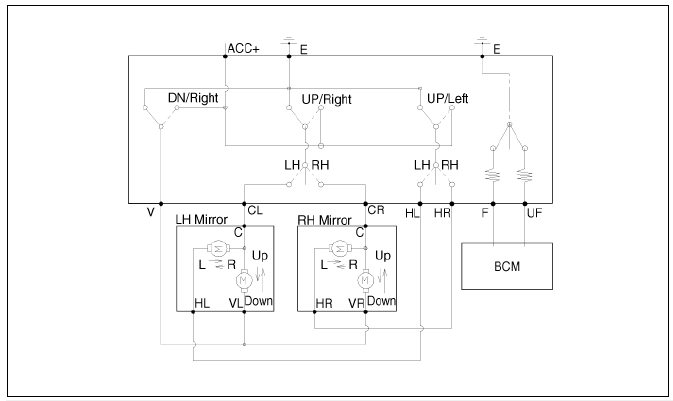

Auto Folding Mirror Switch

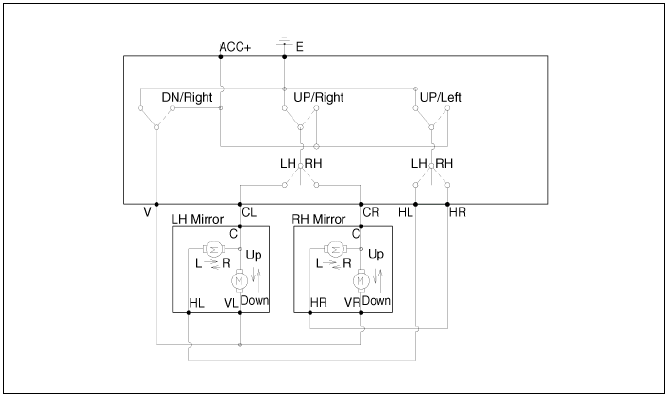

Non-Folding Mirror Switch

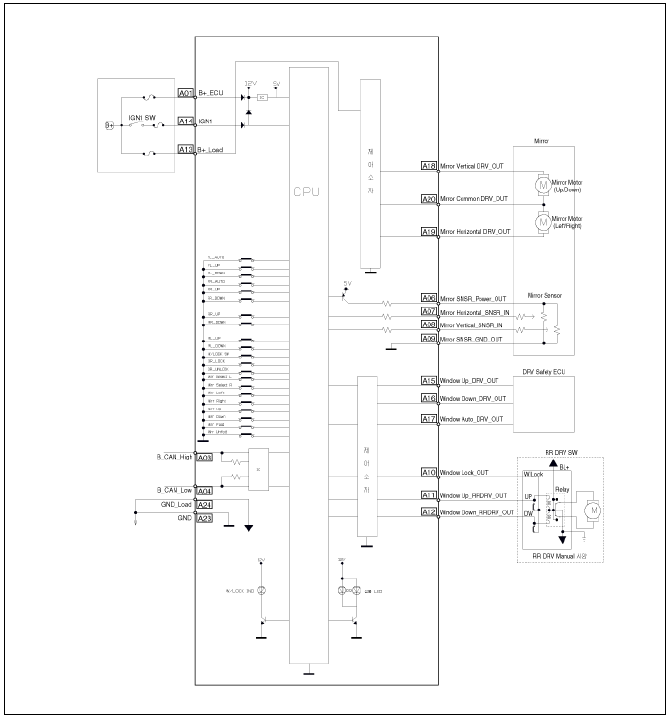

Driver Power Window Module (DDM, IMS Type)
READ NEXT:
Power Door Mirror Switch Repair procedures
Inspection
Non-IMS Type
Disconnect the negative (-) battery terminal.
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
Disconnect the power mirror switch connector from the door trim.
Check for conti
Power Door Mirror Actuator
Power Door Mirror Actuator Components and components location
Power Door Mirror Actuator Repair procedures
Inspection
Disconnect the negative (-) battery terminal.
Remove the front door quadrant inner cover (A).
Disconnect the p
