KIA Niro: Power Door Mirror Switch Repair procedures

Inspection

Non-IMS Type

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left door trim.

    (Refer to Body - "Front Door Trim")

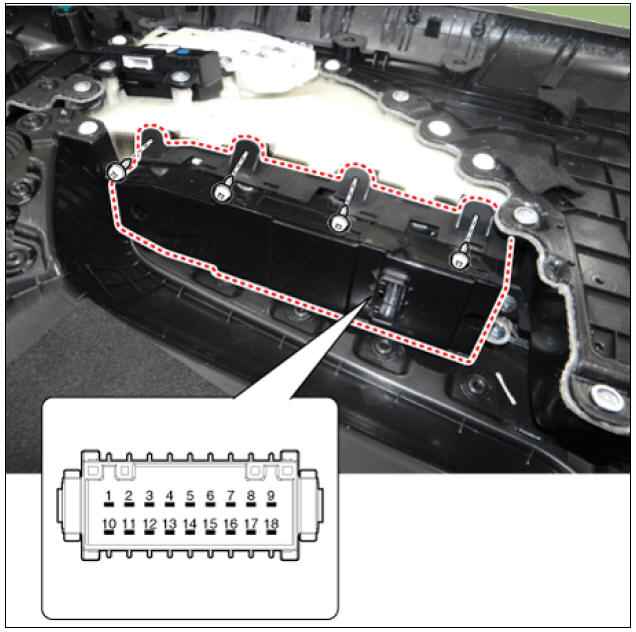

  3. Disconnect the power mirror switch connector from the door trim.

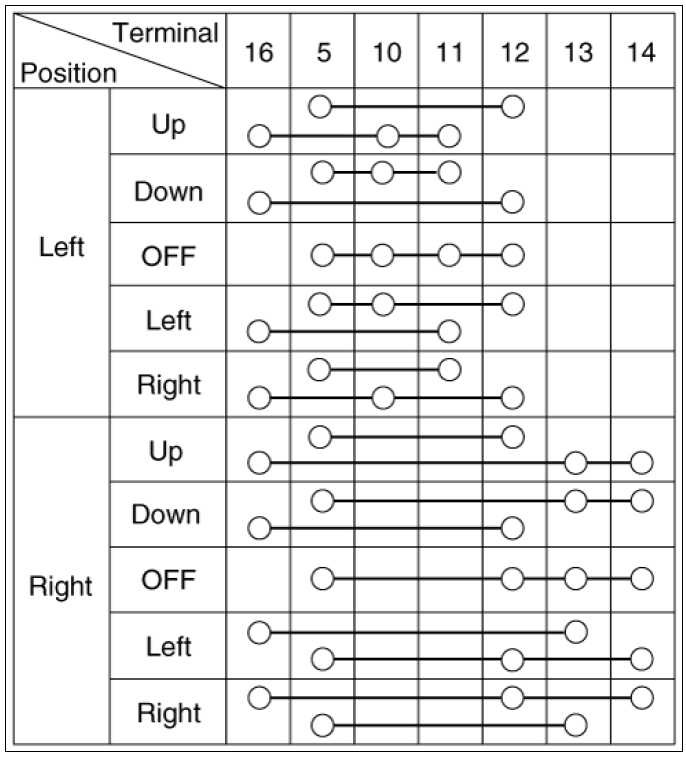

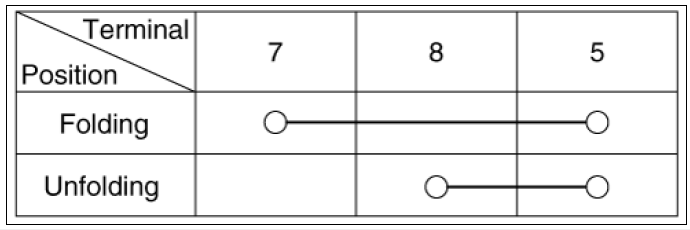

  1. Check for continuity between the terminals in each switch position as shown below.

Power Mirror Switch

IMS Type

IMS Type

Diagnosis With KDS

The body electrical system can be quickly diagnosed for failed parts by using vehicle diagnostic system (KDS).

The diagnostic system (KDS) provides the following information.

(1) Self diagnosis : Checks and displays the failure code (DTC)

(2) Current data : Checks the system input/output data state

(3) Actuation test : Checks the system operating condition

(4) Additional function : Other controls such as the system option and zero point

  1. Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.
  2. Select the 'Body Control Module (BCM)' to check the driver seat or assist door module (DDM/ ADM).
  3. Select the "Current Data" menu to check the current state of the input/output data.

    The input/output data for the sensors corresponding to the driver seat or assist door module (DDM/ ADM) can be checked.

  4. To check the power door lock operation by force, select "Actuation test".

Removal

Warning

  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Be careful to store and handle the trim when removing/installing because lubricant and oil can leave a stain on the trim.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "Front Door Trim")

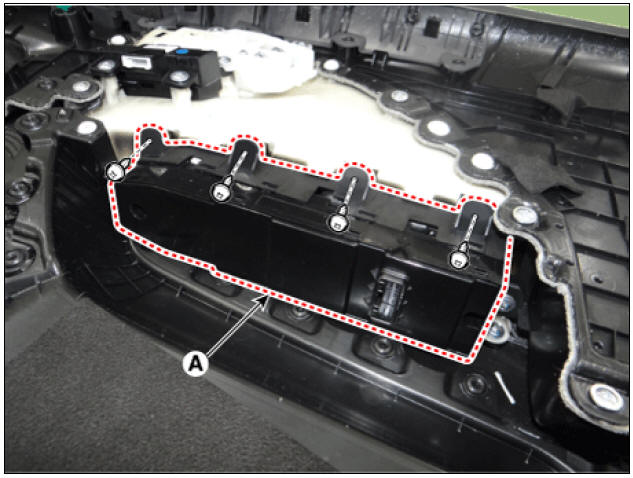

  3. Remove the power window switch assembly (A) after loosening the mounting screws.

Installation

Installation

  1. Install in the reverse order of removal.
