KIA Niro: Hybrid Starter Generator(HSG) Repair procedures

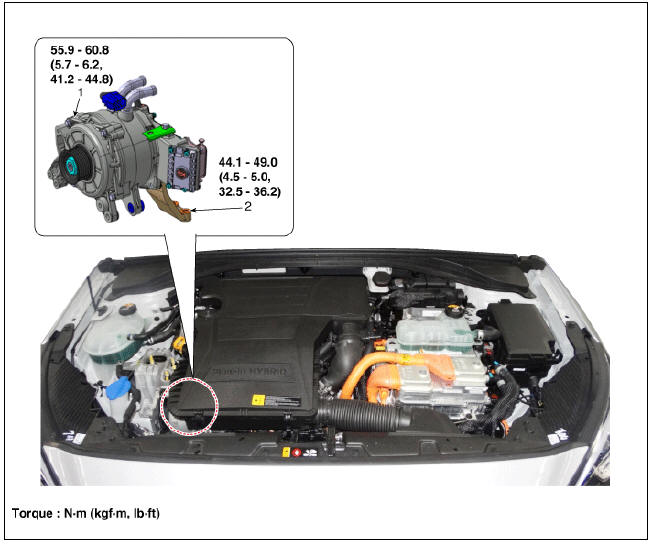

Hybrid Starter Generator(HSG) Components and components location

Components

  1. Hybrid starter generator (HSG)
  2. HSG bracket

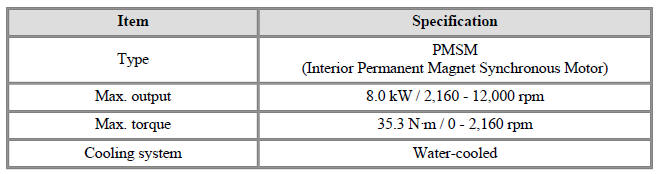

Specification

Hybrid Starter Generator(HSG) Repair procedures

Hybrid Starter Generator(HSG) Repair procedures

Inspection

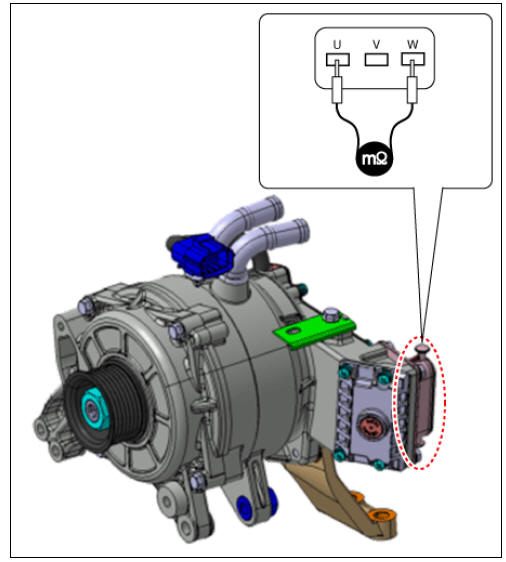

  1. Inspect the line to line resistance using mΩ tester.

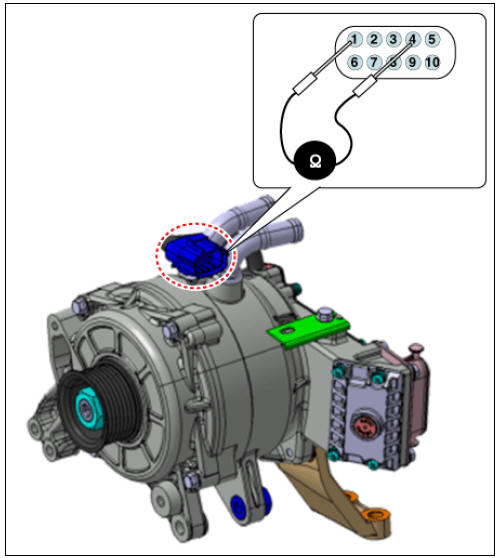

  1. Inspect the temperature sensor resistance.

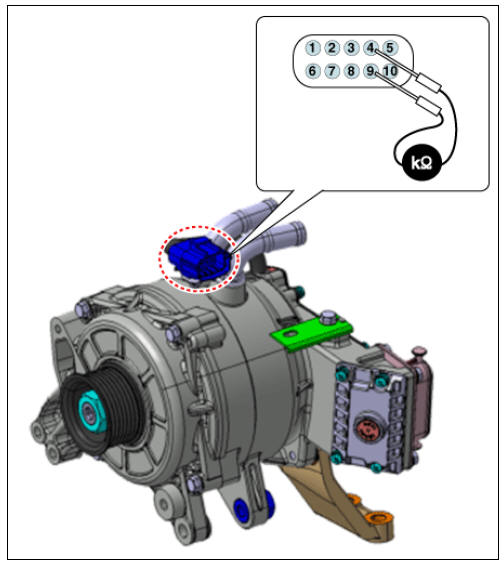

  1. Inspect the resolver sensor resistance.

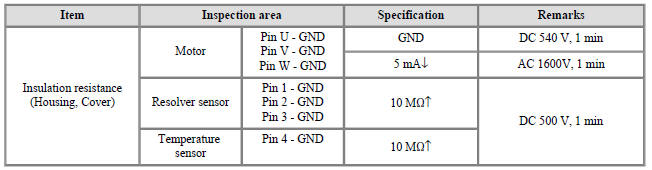

  1. Inspect the insulation resistance.

Removal

Warning

  • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
  • Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries.
  1. Shut off the high voltage circuit.

    ( Refer to Hybrid Motor System - "High Voltage Shut-off Procedure")

  2. Drain the coolant from the hybrid cooling system.

    (Refer to Hybrid Motor Cooling System - "Coolant")

  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "Air Cleaner")

  4. Remove the drive belt.

    (Refer to Engine Mechanical System - "Drive Belt")

  5. Remove the drive belt tensioner.

    (Refer to Engine Mechanical System - "Drive Belt Tensioner")

  6. Remove the idler.

    (Refer to Engine Mechanical System - "Idler")

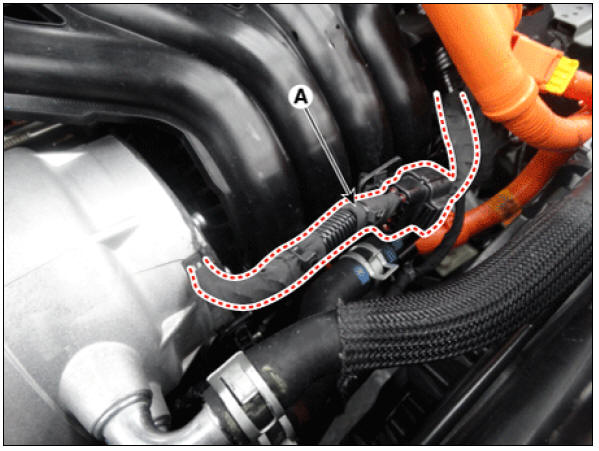

  7. Disconnect the HSG connector (A).

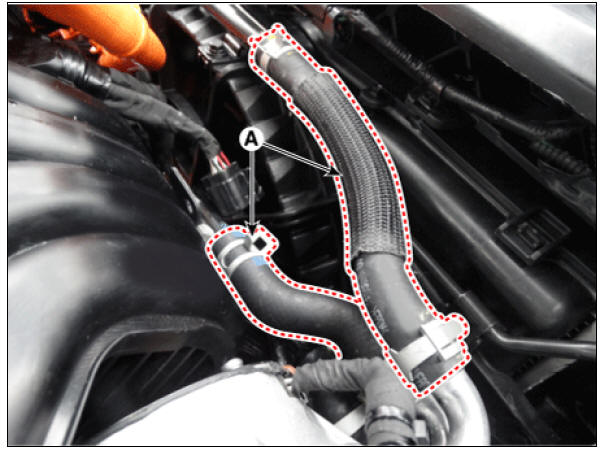

  1. Disconnect the cooler hose (A) from the HSG.

  1. Remove the intake manifold.

    (Refer to Engine Mechanical System - "Intake Manifold")

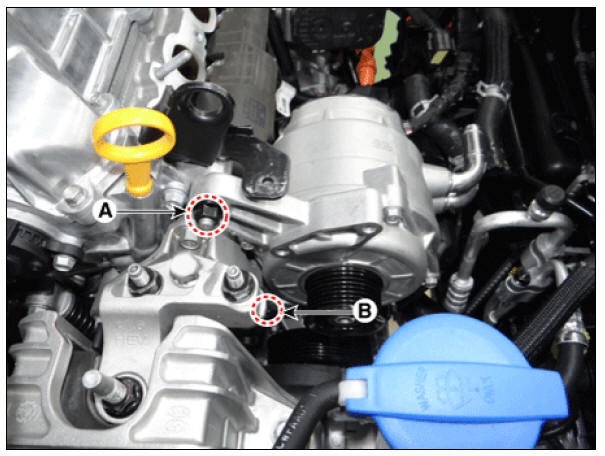

  2. Loosen the HSG mounting nut (A) and bolt (B).

Tightening torque : 44.1 - 49.0 N*m (4.5 - 5.0 kgf*m, 32.5 - 36.2 lb*ft)

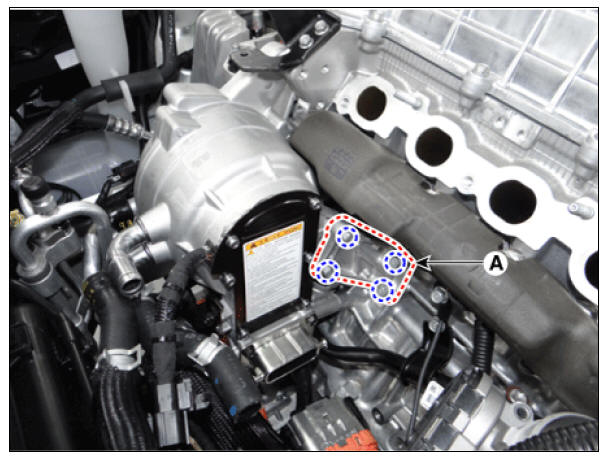

  1. Remove the HSG after removing the HSG bracket (A).

Tightening torque : 55.9 - 60.8 N*m (5.7 - 6.2 kgf*m, 41.2 - 44.8 lb*ft)

Installation

Installation

  1. Install in the reverse order of removal.

Warning

  • Be careful not to damage other hoses nearby when tightening the clamp.
  • Install the clamp in the specified direction to prevent interference with surrounding components.
  1. Perform the procedure below after installing.

(1) Refill the hybrid cooling system with coolant and bleed air from the hybrid cooling system using KDS.

(Refer to Hybrid Motor Cooling System - "Coolant")

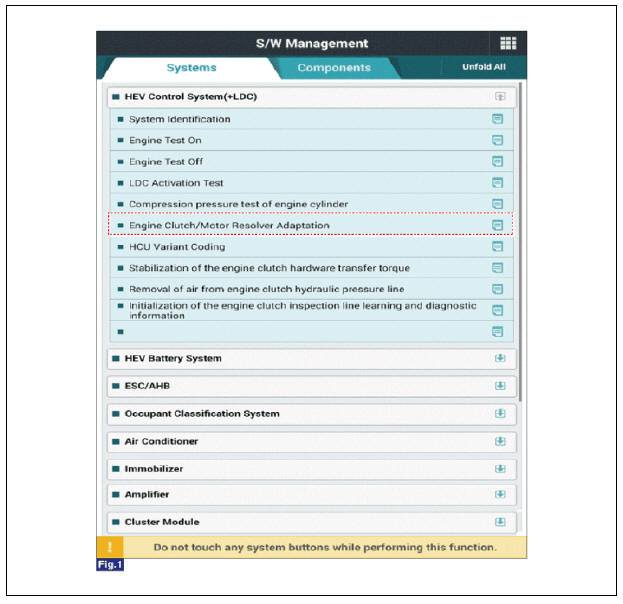

(2) Perform the engine clutch / motor resolver adaptation using the KDS.
